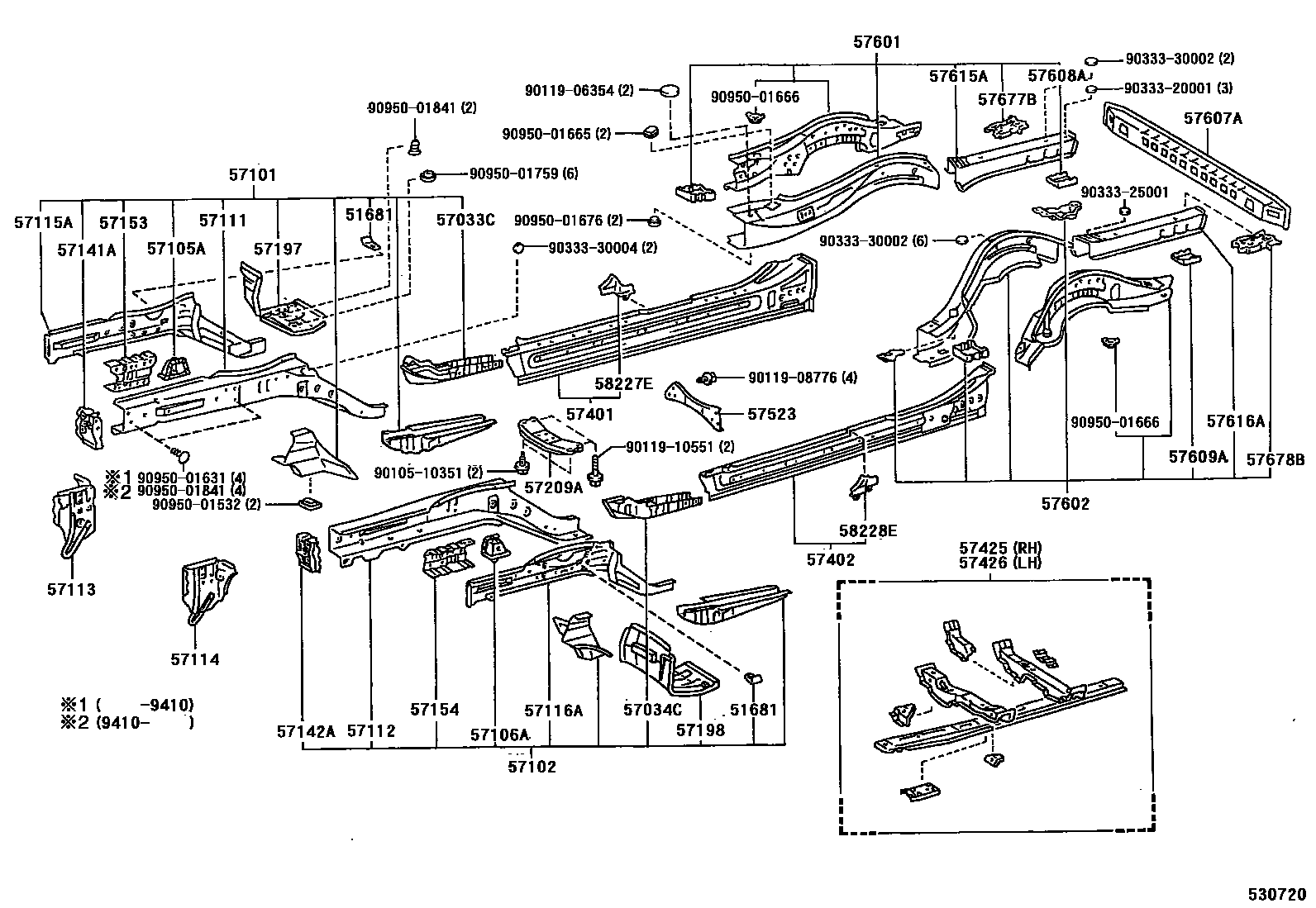

FLOOR SIDE MEMBER
51681BRACKET, FLEXIBLE HOSE
RH
LH
57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
sub57033-30011
57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH
sub57034-30011
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57197BOX, TORQUE, FRONT RH
sub57197-30011
57198BOX, TORQUE, FRONT LH
sub57198-30011
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57523BRACE, CENTER FLOOR CROSSMEMBER
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57677BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 RH
57678BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 LH
58227EPLATE, FRONT FLOOR PANEL SIDE, RH
58228EPLATE, FRONT FLOOR PANEL SIDE, LH
9010510351
main90105-10351
9011906354
main90119-06354
9011908776
main90119-08776
9011910551
main90119-10551
9033320001
main90333-20001
9033325001
main90333-25001
9033330002
main90333-30002
9033330004
main90333-30004
9095001532
main90950-01532
9095001631
main90950-01631
9095001665
main90950-01665
9095001666
main90950-01666
9095001676
main90950-01676
9095001759
main90950-01759
9095001841
main90950-01841
51 parts on this diagram · 2 diagrams in section
