HOOD & FRONT FENDER

0001 1 0002 1

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-30050iGS141,JZS141,143,145,LS141¥2,680199110-199508

main53183-30090iJZS147,149,UZS14#¥1,800199110-199508

main53184-30050iJZS147,149,UZS14#¥1,800199110-199508

53301HOOD SUB-ASSY

main53301-30260iJZS147,149,UZS14#¥73,100199110-199508

main53301-30270iGS141,JZS141,143,145,LS141¥69,600199110-199508

53341BINSULATOR, HOOD

main53341-30150iJZS147,149,UZS14#¥16,700199110-199508

sub53341-30151¥16,700

main53341-30160iGS141,JZS141,143,145,LS141¥16,700199110-199508

53349ARETAINER, HOOD INSULATOR

main53349-30010iJZS14#,LS141,UZS14#¥300199110-199508

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-30050iJZS147,149,UZS14#¥1,460199110-199508

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30090iJZS147,149,UZS14#¥2,080199110-199508

main53381-30100iGS141,JZS141,143,145,LS141¥2,680199110-199508

main53381-30130iJZS147,149,UZS14#¥2,080199110-199508

sub53381-30090¥2,080

53393BPROTECTOR, HOOD, FRONT

main53393-30020iJZS147,149,UZS14#¥3,520199110-199508

53729BREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-30020iJZS147,149,UZS14#¥1,610199110-199508

53801FENDER SUB-ASSY, FRONT RH

main53801-3A860iJZS147,149,UZS14#¥64,000199110-199508

main53801-3A870iJZS147,149,UZS14#¥64,000199110-199508

main53801-3A880iGS141,JZS141,143,145,LS141¥60,700199110-199401

sub53801-3A881¥60,700

sub53882-16030¥60

sub91645-C0618¥90

main53801-3A881iGS141,JZS141,143,145,LS141¥60,700199401-199508

main53801-3F020iGS141,JZS141,143,145,LS141¥60,700199110-199401

sub53801-3F021¥60,700

sub53882-16030¥60

sub91645-C0618¥90

main53801-3F021iGS141,JZS141,143,145,LS141¥60,700199401-199508

53802FENDER SUB-ASSY, FRONT LH

main53802-3A360iJZS147,149,UZS14#¥64,000199110-199508

main53802-3A670iJZS147,149,UZS14#¥64,000199110-199508

main53802-3A680iGS141,JZS141,143,145,LS141¥60,700199110-199401

sub53802-3A681¥60,700

sub53882-16030¥60

sub91645-C0618¥90

main53802-3A681iGS141,JZS141,143,145,LS141¥60,700199401-199508

main53802-3A690iGS141,JZS141,143,145,LS141¥60,700199110-199401

sub53802-3A691¥60,700

sub53882-16030¥60

sub91645-C0618¥90

main53802-3A691iGS141,JZS141,143,145,LS141¥60,700199401-199508

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-30040iJZS147,149,UZS14#¥470199110-199508

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-30040iJZS147,149,UZS14#¥470199110-199508

53837ABRACKET, FRONT SIDE PANEL, NO.2

main53837-30010iUZS143,145¥2,100199210-199508

sub53837-30011¥2,120

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53805-30020iJZS141,143,145,LS141¥1,000199203-199210

sub53866-30080¥720

main53866-30030iJZS141,143,145,LS141¥680199110-199203

sub53805-30020¥1,000

main53866-30070iJZS147,149,UZS14#¥680199110-199508

main53866-30080iGS141,JZS141,143,145,LS141¥720199210-199508

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53806-30030iJZS141,143,145,LS141¥1,000199203-199210

sub53867-30080¥720

main53867-30030iJZS141,143,145,LS141¥680199110-199203

sub53806-30030¥1,000

main53867-30070iJZS147,149,UZS14#¥680199110-199508

main53867-30080iGS141,JZS141,143,145,LS141¥720199210-199508

53875ALINER, FRONT FENDER, RH

main53875-30020iJZS147,149,UZS14#¥7,500199110-199508

53876ALINER, FRONT FENDER, LH

main53876-30010iJZS147,149,UZS14#¥7,500199110-199508

53879ARETAINER, FRONT FENDER LINER

main53879-17020iJZS147,149,UZS14#¥180199110-199508

main53879-30010iGS141,JZS141,143,145,LS141¥260199110-199508

53882BSEAL, FRONT FENDER, RH

main53882-16030iGS141,JZS141,143,145,LS141¥60199110-199508

main53882-30030iJZS147,149,UZS14#¥60199110-199508

53883BSEAL, FRONT FENDER, LH

main53882-16030iGS141,JZS141,143,145,LS141¥60199110-199508

main53882-30030iJZS147,149,UZS14#¥60199110-199508

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-30040iGS141,JZS141,143,145,LS141¥4,270199110-199508

main53885-30050iJZS147,149,UZS14#¥4,270199110-199508

53886FSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-30040iGS141,JZS141,143,145,LS141¥4,270199110-199508

main53886-30050iJZS147,149,UZS14#¥4,270199110-199508

53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53887-30010iJZS149,UZS141¥610199110-199201

9011906514

main90119-06514¥100

9015945005

main90159-45005¥120

9015945008

main90159-45008¥120

9015950267

main90159-50267¥70

9015960506

main90159-60506¥120

9015960507

main90159-60507¥70

9016440093

main90164-40093¥70

9016740028

main90167-40028¥120

9017606029

main90176-06029¥120

9017905060

main90179-05060¥70

9017906273

main90179-06273¥120

9018904014

main90189-04014¥120

9018904090

main90189-04090¥140

9018904204

main90189-04204¥140

9018905034

main90189-05034¥120

9018905135

main90189-05135¥130

9018906006

main90189-06006¥100

9018906013

main90189-06013¥70

9033325001

main90333-25001¥140

904670705301

main90467-0705301

9046707091

main90467-07091¥140

9046707121

main90467-07121¥190

9046708011

main90467-08011¥100

9046708124

main90467-08124¥260

9054115014

main90541-15014¥320

9095001392

main90950-01392¥100

9095001506

main90950-01506¥120

9095001527

main90950-01527¥110

9095001631

main90950-01631¥120

9095006064

main90950-06064¥110

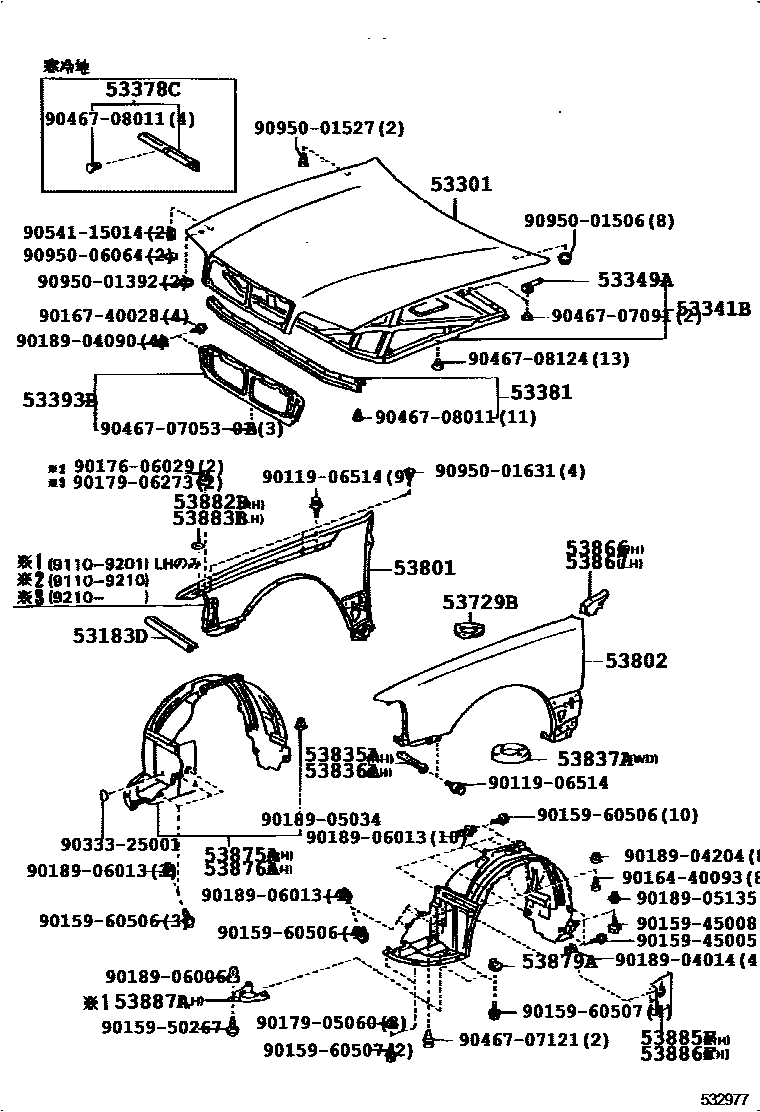

53 parts on this diagram · 2 diagrams in section
