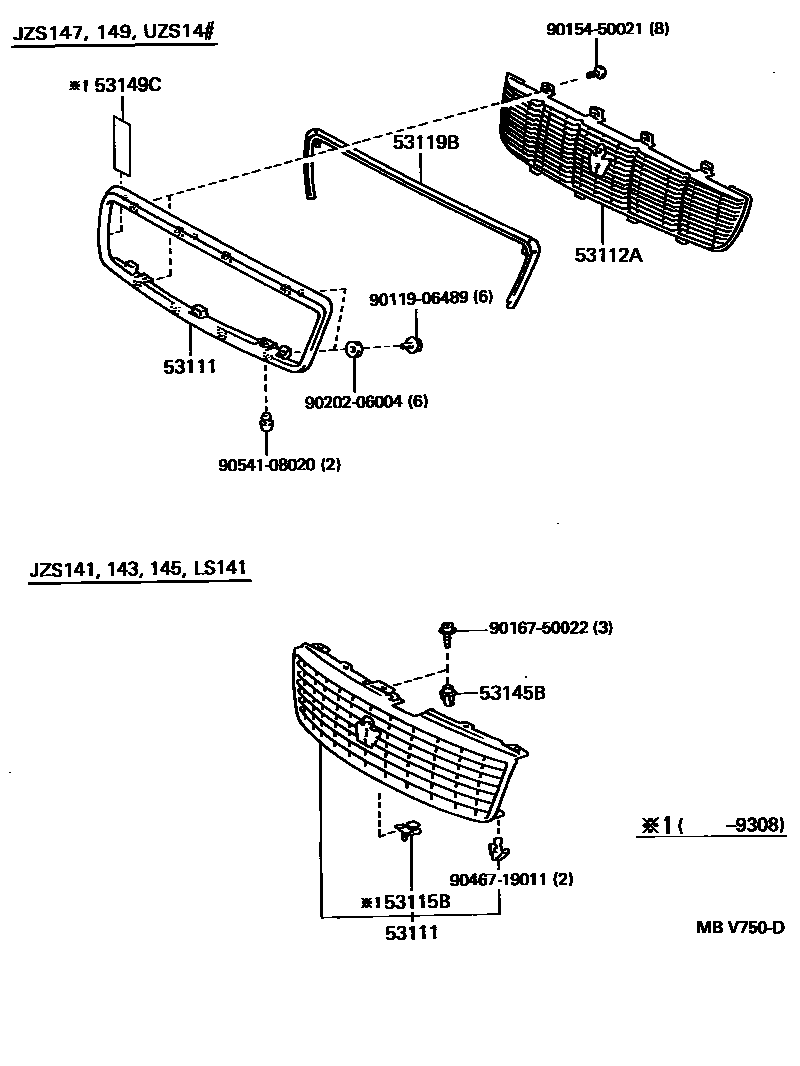

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53111-30530iJZS147,149,UZS14#199110-199508

main53111-30550iJZS141,143,145,LS141199110-199210

main53111-30551iJZS141,143,145,LS141199210-199308

sub53111-30550

main53111-30620iGS141,JZS141,143,145,LS141199308-199508

53112AGRILLE, RADIATOR, LOWER

main53112-30200iJZS147,149,UZS14#199110-199308

main53112-30220iJZS147,149,UZS14#199308-199508

53115BBRACKET, RADIATOR GRILLE

main53115-16010iJZS141,143,145,LS141199110-199308

53119BPROTECTOR, RADIATOR GRILLE

main53119-30100iJZS147,149,UZS14#199110-199508

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-16010iGS141,JZS141,143,145,LS141199110-199508

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-30020iJZS147,149,UZS14#199112-199308

9011906489

main90119-06489

9015450021

main90154-50021

9016750022

main90167-50022

9020206004

main90202-06004

9046719011

main90467-19011

9054108020

main90541-08020

12 parts on this diagram · 1 diagram in section
