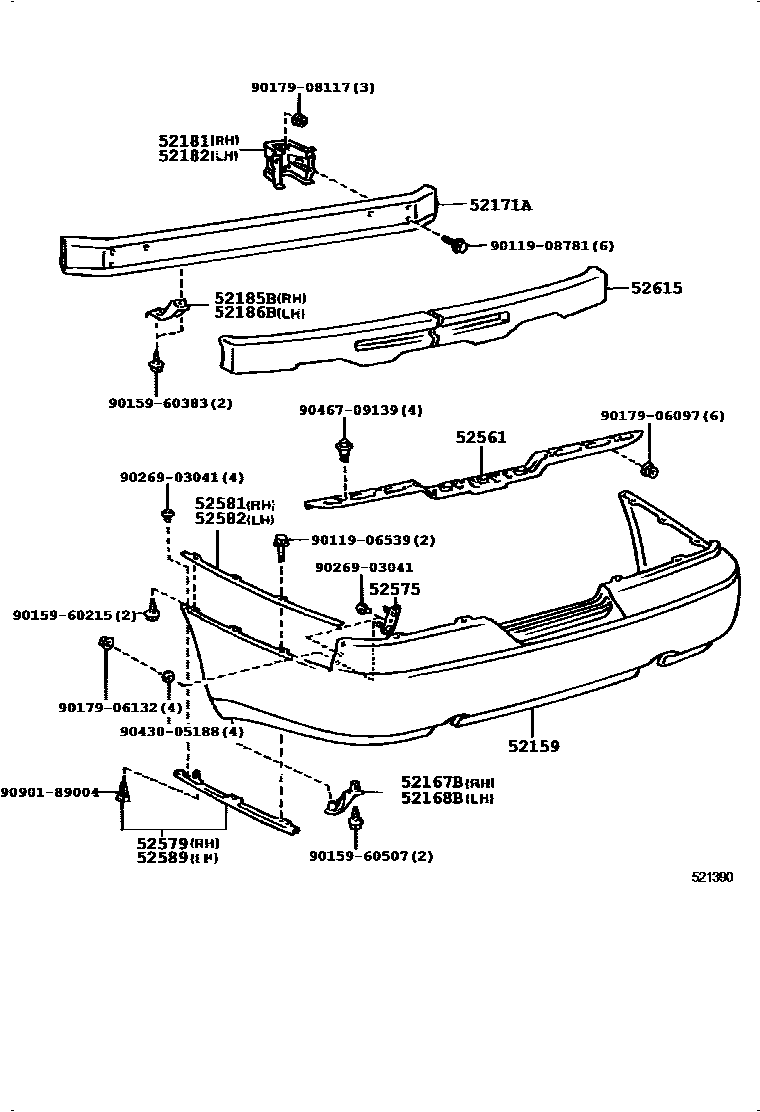

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52159COVER, REAR BUMPER

main52159-30150-A0iJZS147,149,UZS14#199110-199308

WARM GRY P MC/SLVR M,046

main52159-30150-A1iJZS147199312-199508

WHITE PEARL M TONING,051

main52159-30150-A1iUZS141199205-199209

main52159-30150-A2iJZS147,149,UZS14#199308-199508

WARM GRAY PM,046

main52159-30150-B0iJZS147,149,UZS14#199110-199308

DK.BL.GRY ME/BL.GRY,183

main52159-30150-B1iJZS147,149,UZS14#199308-199508

SILVER ME/GRAY MM,199

main52159-30150-C0iJZS147,149,UZS14#199110-199508

BLACK/DK GRAY M,202

main52159-30150-D0iJZS147,149,UZS14#199110-199308

DK MAUVE/REDSH BR0WN,3K8

main52159-30150-G0iJZS147,149,UZS14#199110-199308

DK GREEN M/GREEN M,6K2

main52159-30150-G1iJZS147,149,UZS14#199308-199508

BL.GREEN MIO/GREEN M,6M2

main52159-30150-J0iJZS147,149,UZS14#199110-199508

DK.BLUE MC/BL.GRY ME,8J5

main52159-30160-A0iJZS141,143,145..ROY,ROYG199110-199308

WARM GRAY PEARL MICA,046

sub52159-30925

main52159-30160-A1iJZS141,143,145,LS141..4FC199110-199308

SUPER WHITE 4,050

sub52159-30925

main52159-30160-B0iJZS141,143,145,LS141199110-199308

BL.GRAY ME,182

sub52159-30925

main52159-30160-C0iJZS141,143,145,LS141199110-199308

BLACK,202

sub52159-30925

main52159-30160-C1iJZS143..ROY199205-199209

sub52159-30925

main52159-30160-C1iJZS141,143,145199204-199308

W GRY PAR MC/SLVR ME,29T

sub52159-30925

main52159-30160-G0iJZS141,143,145,LS141199110-199308

DK GREEN M,6K2

sub52159-30925

main52159-30160-H0iJZS143..ROY199205-199209

sub52159-30925

main52159-30160-H0iJZS141,143,145,LS141199110-199308

DK.TORQUOISE MC,742

sub52159-30925

main52159-30160-H1iJZS141,143,145,LS141199305-199308

DK.TORQ/ BL GRAY ME,25V

sub52159-30925

main52159-30160-J0iJZS141,143,145,LS141199110-199308

DK BLUE MICA FP,8J5

sub52159-30925

main52159-30220-A0iGS141,JZS141,143,145,LS141199308-199508

SUPER WHITE 2,040

sub52159-30928

main52159-30220-A1iGS141,JZS141,143,145199308-199508

WARM GRAY PM,046

sub52159-30928

main52159-30220-A2iGS141,JZS141,143,145199308-199508

WARM GRY PM/SILVER M,29T

sub52159-30928

main52159-30220-A3iJZS141,143..ROYT199405-199412

sub52159-30928

main52159-30220-A3iJZS141..ROYT199501-199508

sub52159-30928

main52159-30220-A3iJZS143..ROYT199310-199312

sub52159-30928

main52159-30220-A5iGS141199501-199508

sub52159-30928

main52159-30220-B0iGS141,JZS141,143,145,LS141199308-199508

DK.BL.GRAY ME,183

sub52159-30928

main52159-30220-C0iGS141,JZS141,143,145,LS141199308-199508

BLACK,202

sub52159-30928

main52159-30220-H1iGS141,JZS141,143,145,LS141199308-199508

D.TORQUOI M/B.GRAY M,25V

sub52159-30928

main52159-30220-J0iGS141,JZS141,143,145,LS141199308-199508

DK.BLUE MCFP,8J5

sub52159-30928

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-30020iJZS147,149,UZS14#199110-199508

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-30040iJZS147,149,UZS14#199110-199508

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-30090iJZS147,149,UZS14#199110-199508

52181ARM, REAR BUMPER, RH

main52181-30200iJZS147,149,UZS14#199110-199508

52182ARM, REAR BUMPER, LH

main52182-30190iJZS147,149,UZS14#199110-199508

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-30040iJZS147,149,UZS14#199110-199508

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-30040iJZS147,149,UZS14#199110-199508

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-30100iJZS147,149,UZS14#199110-199508

main52561-30110iJZS141,143,145,LS141199110-199308

main52561-30150iGS141,JZS141,143,145,LS141199308-199508

52575RETAINER, REAR BUMPER SIDE, RH

main52575-30070iJZS147,149,UZS14#199110-199508

main52575-30080iGS141,JZS141,143,145,LS141199110-199508

52579RETAINER, REAR BUMPER SIDE, NO.3

main52579-30030iJZS147,149,UZS14#199110-199508

main52579-30040iJZS141,143,145,LS141199110-199308

main52579-30070iGS141,JZS141,143,145,LS141199308-199508

52581PROTECTOR, REAR BUMPER, RH

main52581-30020iJZS147,149,UZS14#199110-199508

52582PROTECTOR, REAR BUMPER, LH

main52582-30010iJZS147,149,UZS14#199110-199508

52589RETAINER, REAR BUMPER END, NO.2

main52589-30040iJZS147,149,UZS14#199110-199508

main52589-30050iJZS141,143,145,LS141199110-199308

main52589-30080iGS141,JZS141,143,145,LS141199308-199508

52615ABSORBER, REAR BUMPER ENERGY

main52615-30080iJZS147,149,UZS14#199110-199508

main52615-30090iJZS141,143,145,LS141199110-199308

main52615-30140iGS141,JZS141,143,145,LS141199308-199508

main52616-30010iJZS141,143,145,LS141199110-199308

9011906539

main90119-06539

9011908781

main90119-08781

9015960215

main90159-60215

9015960383

main90159-60383

9015960507

main90159-60507

9017906097

main90179-06097

9017906132

main90179-06132

9017908117

main90179-08117

9026903041

main90269-03041

9043005188

main90430-05188

9046709139

main90467-09139

9090189004

main90901-89004

27 parts on this diagram · 3 diagrams in section
