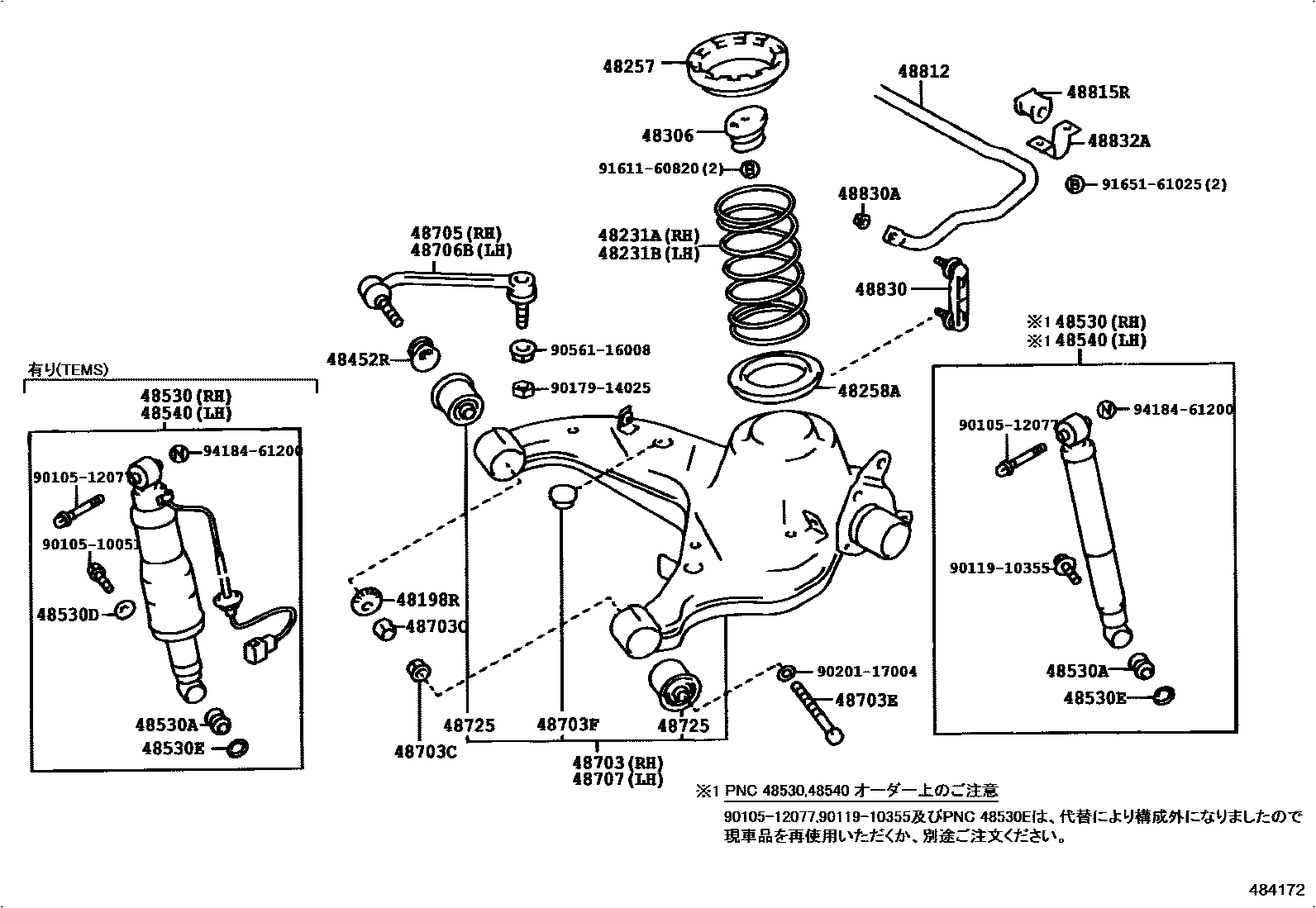

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-14010iJZS147,149,UZS141,143,147199110-199508

sub48198-50011

main48198-24020iUZS145199210-199508

main48198-30020iGS141,JZS141,143,145,LS141199110-199508

48231ASPRING, COIL, REAR RH

main48231-30640iGS141,JZS141,LS141..SALEX,SSL199110-199508

main48231-30730iJZS141,143..ROY,ROYT199110-199508

main48231-30750iJZS147,UZS147199210-199508

48231BSPRING, COIL, REAR LH

main48231-30640iJZS141,LS141..SALEX,SSL199110-199508

main48231-30730iJZS141,143..ROY,ROYT199110-199508

main48231-30750iJZS147,UZS147199210-199508

48257INSULATOR, REAR COIL SPRING

main48257-30040iGS141,JZS141,143,LS141199110-199508

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-30020iGS141,JZS141,143,LS141199110-199508

48306BUMPER SUB-ASSY, REAR SPRING

main48306-30100iJZS145199110-199508

main48306-30140iJZS141,143,LS141..4FC199110-199508

main48306-30150iJZS143..ROYT199110-199210

main48306-30150iJZS143..ROYT199210-199508

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30020iGS141,JZS141,143,145,LS141199110-199508

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-39105iJZS143..ROYT199110-199210

sub48530-39106

main48530-39105iJZS143..ROYT199210-199508

sub48530-39106

main48530-39115iJZS147,UZS147199210-199409

sub48530-39116

main48530-39116iJZS147,UZS147199409-199508

sub48530-39117

main48531-39835iJZS141,143,LS141199110-199508

sub48531-39836

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004iJZS141,143,LS141..4FC199110-199508

main90385-19001iJZS143..ROYT199210-199508

main90385-19001iJZS143..ROYT199110-199210

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03018iJZS143..ROYT199210-199508

main90948-03018iJZS143..ROYT199110-199210

main90948-03019iJZS145199110-199508

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iGS141,JZS141,143,LS141199110-199508

main90948-03017iJZS143..ROYT199210-199508

main90948-03017iJZS143..ROYT199110-199210

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-39115iJZS147,UZS147199210-199409

sub48530-39116

main48530-39116iJZS147,UZS147199409-199508

sub48530-39117

main48531-39835iJZS141,143,LS141..4FC199110-199508

sub48531-39836

main48540-39105iJZS143..ROYT199210-199508

sub48540-39106

main48540-39105iJZS143..ROYT199110-199210

sub48540-39106

48703ARM SUB-ASSY, REAR SUSPENSION, RH

main48703-30904iGS141,JZS141,143,LS141199110-199508

main48703-30905iJZS145199110-199508

48703CNUT(FOR REAR SUSPENSION ARM)

main90170-14012iJZS147,149,UZS141,143,147199110-199508

BODY SIDE

main90179-12027iJZS147,149,UZS141,143,147199110-199508

NO.1 ARM X CARRIER

main90179-14012iJZS147,149,UZS141,143,147199110-199508

NO.2 ARM X CARRIER

main90179-14025iGS141,JZS141,143,145,LS141199110-199508

main90179-16011iGS141,JZS141,143,145,LS141199110-199508

48703EBOLT(FOR REAR SUSPENSION ARM)

main90101-16017iGS141,JZS141,143,145,LS141199110-199508

48703FPLUG, HOLE(FOR REAR SUSPENSION ARM)

main47491-30050iGS141,JZS141,143,145,LS141199110-199508

OD=22,H=12

main90950-01258iGS141,JZS141,143,145,LS141199110-199508

OD=22,H=8.5

sub90950-01478

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30060iGS141,JZS141,143,145,LS141199110-199508

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30030iGS141,JZS141,143,145,LS141199110-199508

48707ARM SUB-ASSY, REAR SUSPENSION, LH

main48707-30904iGS141,JZS141,143,LS141199110-199508

main48707-30905iJZS145199110-199508

48725BUSH, LOWER CONTROL ARM

main48725-30050iGS141,JZS141,143,145,LS141199110-199508

main48725-30060iGS141,JZS141,143,145,LS141199110-199508

48812BAR, STABILIZER, REAR

main48812-30220iJZS149,UZS141199110-199508

main48812-30240iUZS143199210-199508

main48812-30250iJZS145199110-199508

main48812-30260iGS141,JZS141,143,LS141..ROY,SALEX,SSL199110-199508

main48812-30270iJZS141,143..ROYT199110-199508

main48812-30280iUZS145199210-199508

48815RBUSH, STABILIZER(FOR REAR)

main48815-30300iJZS145199110-199508

main48815-30310iGS141,JZS141,143,LS141..ROY,SALEX,SSL199110-199508

main48815-30330iJZS141,143..ROYT199110-199508

main48818-30020iJZS147,149,UZS141199110-199508

main48818-30040iUZS143199210-199408

sub48818-30080

main48818-30050iUZS145199210-199508

main48818-30080iUZS143199408-199508

48830LINK ASSY, REAR STABILIZER

main48830-14050iUZS145199210-199508

main48830-24010iJZS147,149,UZS141,143199110-199508

main48830-30020iGS141,JZS141,143,145,LS141199110-199508

main48840-14030iUZS145199210-199508

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iJZS14#,LS141,UZS14#199110-199508

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-30040iGS141,JZS141,143,145,LS141199110-199508

9010510051

main90105-10051

9010512077

main90105-12077

9011910355

main90119-10355

9017914025

main90179-14025

9020117004

main90201-17004

9056116008

main90561-16008

9161160820

main91611-60820

9165161025

main91651-61025

9418461200

main94184-61200

34 parts on this diagram · 5 diagrams in section
