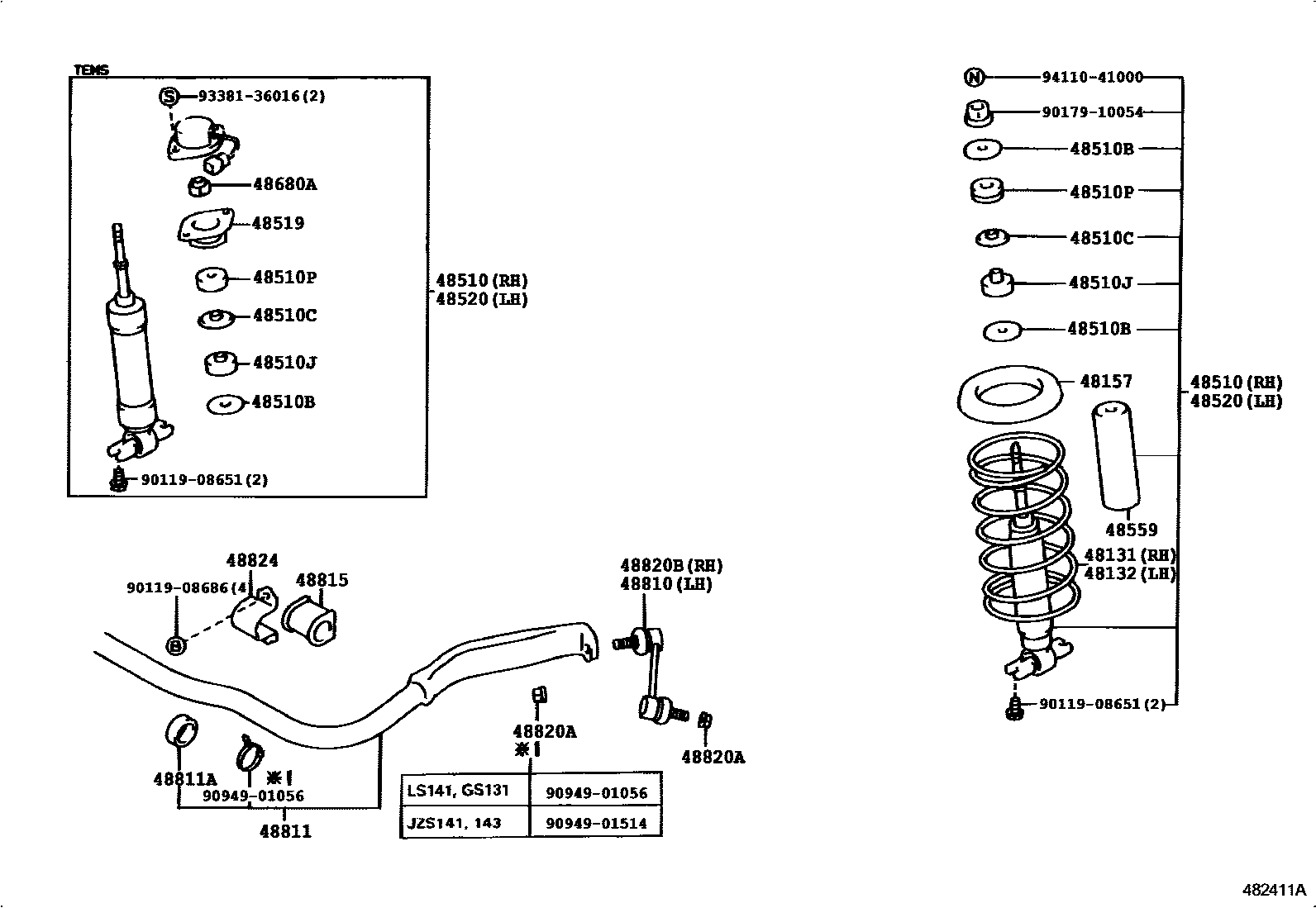

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48131SPRING, FRONT COIL, RH

main48131-30610iGS141199308-199508

main48131-30700iJZS141,143..ROYT199110-199508

sub48131-30540

main48131-30740iJZS141..SALEX,SSL199110-199508

main48131-30750iJZS141,143..ROY199110-199508

main48131-30810iLS141199110-199508

main48131-30840iJZS147199210-199308

sub48131-30850

main48131-30860iJZS141..SALEX,SSL199210-199508

main48131-30890iJZS147199308-199508

main48131-3A020iUZS147199308-199508

sub48131-3A030

48132SPRING, FRONT COIL, LH

main48131-30610iGS141199308-199508

main48131-30700iJZS141,143..ROYT199110-199508

sub48131-30540

main48131-30740iJZS141..SALEX,SSL199110-199508

main48131-30750iJZS141,143..ROY199110-199508

main48131-30810iLS141199110-199508

main48131-30850iJZS147199210-199308

main48131-30860iJZS141..SALEX,SSL199210-199508

main48131-3A010iJZS147199308-199508

sub48131-30890

main48131-3A030iUZS147199308-199508

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-30030iGS141,JZS141,143,LS141199110-199508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39085iJZS141,143,LS141..4FC199110-199508

sub48510-39086

main48510-39165iJZS143..ROYT199110-199210

sub48510-39166

main48510-39165iJZS143..ROYT199210-199508

sub48510-39166

main48510-39205iJZS147,UZS147199210-199312

sub48510-39206

main48510-39206iJZS147199301-199508

sub48510-39207

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02072iGS141,JZS141,143,LS141199110-199508

main90948-02091iJZS143,145..ROYG,ROYT199110-199210

main90948-02091iJZS145199210-199508

main90948-02116iJZS141,143,LS141..4FC199110-199508

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02092iGS141,JZS141,143,145,LS141199110-199508

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01033iJZS143..ROYT199210-199508

main90948-01033iJZS143..ROYT199110-199210

main90948-01033iJZS145199110-199508

main90948-01034iJZS145199110-199508

main90948-01038iGS141,JZS141,143,LS141199110-199508

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01034iJZS143..ROYT199110-199210

main90948-01034iJZS143..ROYT199210-199508

main90948-01037iJZS141,143,LS141..4FC199110-199508

48519BRACKET, ACTUATOR SUPPORT, FRONT

main48519-30020iJZS145199210-199508

main48519-30020iJZS143,145..ROYG,ROYT199110-199210

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39085iGS141,JZS141,143,LS141199110-199508

sub48510-39086

main48510-39165iJZS143..ROYT199210-199508

sub48510-39166

main48510-39165iJZS143..ROYT199110-199210

sub48510-39166

main48510-39205iJZS147,UZS147199210-199312

sub48510-39206

main48510-39206iJZS147,UZS147199301-199508

sub48510-39207

48559COVER, SHOCK ABSORBER, DUST

main48559-30020iGS141,JZS141,143,LS141199110-199508

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-30020iJZS147199210-199301

sub48609-30030

sub48331-30120

main48680-30040iJZS147199301-199308

sub48609-30030

sub48331-30120

main48680-30050iJZS147,UZS147199308-199508

sub48609-30020

sub48331-30120

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-12117iJZS145199210-199508

main90179-12117iJZS143,145..ROYG,ROYT199111-199210

main94187-11200iJZS143,145..ROYG,ROYT199110-199111

sub90177-12002

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30020iJZS147,149,UZS141,147199110-199508

sub48810-30010

main48810-30030iGS141,JZS141,143,145,LS141199110-199508

sub48820-30020

main48810-30040iUZS143,145199210-199305

sub48810-30041

main48810-30041iUZS143,145199305-199508

sub48810-30050

48811BAR, STABILIZER, FRONT

main48811-30310iLS141199110-199508

main48811-30360iGS141,JZS141,143,145199110-199508

main48811-30390iJZS147,149,UZS141,147199110-199508

main48811-30410iUZS143,145199210-199305

sub48811-30411

main48811-30411iUZS143,145199305-199508

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-29002iLS141,UZS143,145199110-199508

main90385-31002iGS141,JZS141,143,145199110-199508

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30290iLS141199110-199508

main48815-30350iGS141,JZS141,143,145199110-199508

main48815-30370iJZS147,149,UZS141199110-199301

sub48815-30430

main48815-30390iUZS143,145199210-199508

sub48815-30430

48820LINK ASSY, FRONT STABILIZER

main48820-30060iUZS143,145199210-199305

sub48820-30061

main48820-30061iUZS143,145199305-199508

sub48820-30070

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12047iGS141,JZS141,143,145,LS141199110-199508

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30040iJZS147,149,UZS141,147199110-199508

sub48820-30030

main48820-30050iGS141,JZS141,143,145,LS141199110-199508

sub48820-30010

48824BRACKET, STABILIZER, FRONT

main48824-30070iGS141,JZS141,143,145,LS141199110-199508

main48824-30100iUZS143,145199210-199508

9011908651

main90119-08651

9011908686

main90119-08686

9017910054

main90179-10054

9094901056

main90949-01056

9094901514

main90949-01514

9338136016

main93381-36016

9411041000

main94110-41000

28 parts on this diagram · 6 diagrams in section
