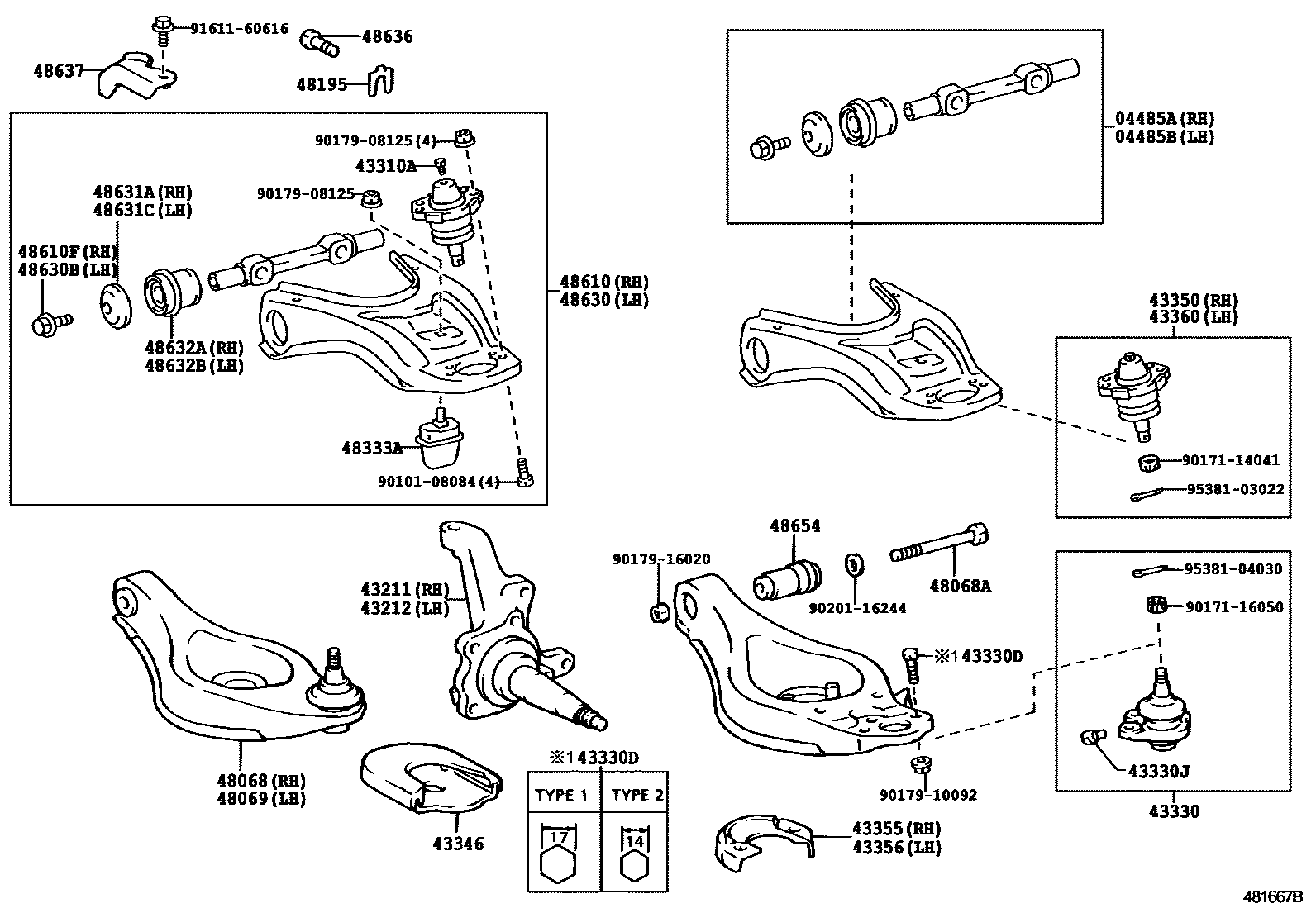

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1 0004 1 0005 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-30060iGS141,JZS141,143,145,LS141199110-199508

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-30060iGS141,JZS141,143,145,LS141199110-199508

43211KNUCKLE, STEERING, RH

main43211-30140iGS141,JZS141,143,LS141199110-199508

main43211-30150iJZS141,143,LS141199110-199508

main43211-30160iJZS149,UZS141..B,C199210-199508

sub43211-30210

main43211-30160iJZS149,UZS141199110-199508

sub43211-30210

main43211-30170iUZS143,145199210-199508

sub43211-30172

sub90389-16020

main43211-30180iJZS147199210-199508

43212KNUCKLE, STEERING, LH

main43212-30090iGS141,JZS141,143,LS141199110-199508

main43212-30100iJZS141,143,LS141..4FC199110-199508

main43212-30110iJZS149,UZS141,147199110-199508

sub43212-30210

main43212-30110iJZS149..A199210-199508

sub43212-30210

main43212-30120iUZS143,145199210-199508

sub43212-30122

sub90389-16020

main43212-30130iJZS147,149..A199210-199508

43310APLUG (FOR BALL JOINT)

main90345-06014iGS141,JZS141,143,LS141199110-199508

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39225iJZS145199210-199508

main43330-39225iJZS143..ROYT199110-199308

main43330-39225iJZS143..ROYT199210-199308

main43330-39225iJZS143..ROYT199210-199508

RH

main43330-39225iJZS143,145..ROYG,ROYT199110-199210

main43330-39325iJZS147,149,UZS141,147199110-199508

sub43330-39326

main43330-39335iUZS143,145199210-199508

sub43330-39405

main43340-39205iJZS143..ROY199110-199308

main43340-39205iJZS143,145..ROYG,ROYT199110-199210

main43340-39205iJZS145199210-199308

main43340-39205iJZS145199210-199508

LH

main43340-39205iJZS145199210-199508

main43340-39255iJZS147,149,UZS141,147199110-199508

sub43340-39256

main43340-39265iUZS143,145199210-199508

sub43340-39315

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90101-10188iGS141,JZS141,143,145,LS141199110-199508

main90105-10360iGS141,JZS141,143,145,LS141199110-199508

43330JPLUG (FOR LOWER BALL JOINT)

main90345-06014iJZS141,143,LS141199210-199308

main90345-06014iGS141,JZS141,143,145,LS141199110-199508

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-30010iGS141,JZS141,143,145,LS141199110-199508

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39065iGS141,JZS141,143,LS141199110-199508

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-30030iJZS147,149,UZS141,147199110-199508

main43355-30040iGS141,JZS141,143,145,LS141199110-199508

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-30030iJZS147,149,UZS141,147199110-199508

main43356-30040iGS141,JZS141,143,145,LS141199110-199508

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39065iJZS141,143,LS141..4FC199110-199508

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-30140iJZS145199110-199508

main48068-30150iGS141,JZS141,143,LS141199110-199508

main48620-30110iJZS147,149,UZS141,147199110-199508

sub48068-30260

sub43330-39325

main48620-30130iUZS143,145199210-199508

sub48068-30380

sub43330-39405

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-16024iGS141,JZS141,143,145,LS141199110-199508

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-30140iJZS145199110-199508

main48069-30150iGS141,JZS141,143,LS141199110-199508

main48640-30110iJZS147,149,UZS141,147199110-199508

sub48069-30260

sub43340-39255

main48640-30130iUZS143,145199210-199508

sub48069-30380

sub43340-39315

48195SHIM, CAMBER ADJUST

main90565-15016iGS141,JZS141,143,145,LS141199110-199508

main90565-15017iGS141,JZS141,143,145,LS141199110-199508

main90565-15018iGS141,JZS141,143,145,LS141199110-199508

48333ASUPPORT, BUMPER, FRONT UPPER SUSPENSION ARM

main48333-30030iJZS143..ROYT199308-199508

main48333-30030iJZS143,145..ROYG,ROYT199110-199210

main48333-30030iJZS145199210-199308

main48333-30040iJZS143..ROYT199308-199508

main48333-30040iJZS141,143,LS141..4FC199110-199508

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-30110iGS141,JZS141,143,LS141199110-199508

main48610-39015iJZS147,149,UZS141,147199110-199508

main48610-39025iUZS143,145199210-199508

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-12017iGS141,JZS141,143,145,LS141199110-199508

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39025iUZS143,145199210-199508

main48630-30110iGS141,JZS141,143,LS141199110-199508

main48630-39015iJZS147,149,UZS141,147199110-199508

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-12017iGS141,JZS141,143,145,LS141199110-199508

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02020iGS141,JZS141,143,145,LS141199110-199508

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02020iGS141,JZS141,143,145,LS141199110-199508

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-30070iGS141,JZS141,143,145,LS141199110-199508

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-30070iGS141,JZS141,143,145,LS141199110-199508

48636BOLT, UPPER ARM SET

main90105-14062iGS141,JZS141,143,145,LS141199110-199508

48637INSULATOR, UPPER ARM BUSH

main48637-30010iLS141199110-199508

48654BUSH, LOWER ARM

main48654-30030iJZS143..ROYT199210-199308

main48654-30030iGS141,JZS141,143,145,LS141199110-199508

main48654-30050iJZS147,149,UZS141,147199110-199508

main48654-30060iUZS143,145199210-199508

9010108084

main90101-08084

9017114041

main90171-14041

9017116050

main90171-16050

9017908125

main90179-08125

9017910092

main90179-10092

9017916020

main90179-16020

9020116244

main90201-16244

9161160616

main91611-60616

9538103022

main95381-03022

9538104030

main95381-04030

39 parts on this diagram · 5 diagrams in section
