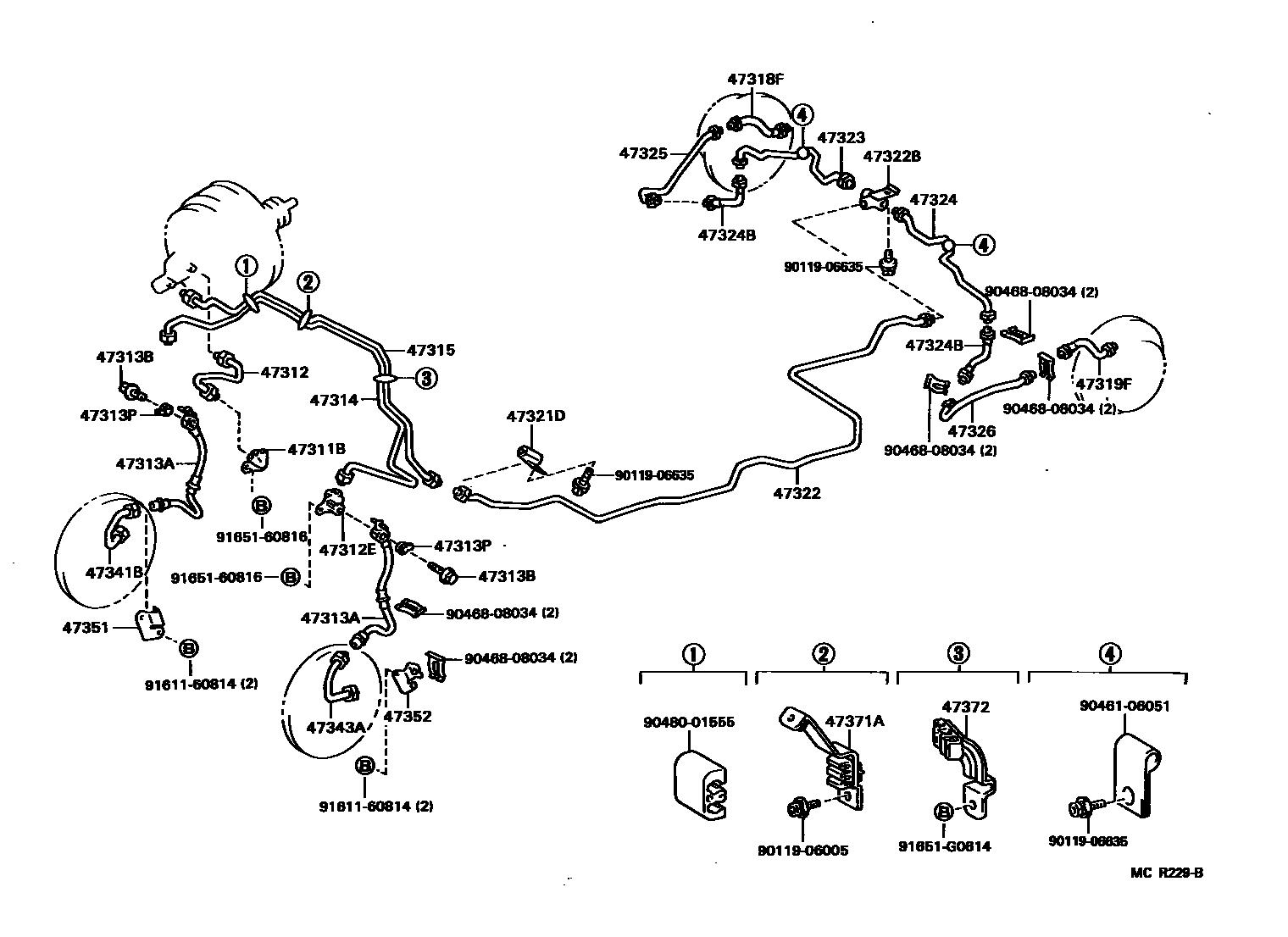

BRAKE TUBE & CLAMP

0001 1 0003 1��(ABS) 0004 1��(TRC) 0005 1 0007 1��(ABS) 0009 1��(TRC) 0011 1 0012 1 0013 1��(ABS) 0014 1��(ABS) 0016 1��(ABS & TRC) 0017 1��(TRC)

47311TUBE, FRONT BRAKE, NO.1

main47311-30440iJZS149..B199110-199508

main47311-30450iJZS147199306-199508

main47311-30450iJZS149..A199110-199308

main47311-30450iJZS147199210-199306

main47311-30470iJZS147199210-199508

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10145iJZS143,145..ROYG,ROYT199110-199210

main90412-10145iLS141199308-199508

main90412-10145iJZS141..ROYT199210-199308

main90412-10145iJZS145199210-199508

main90412-10188iJZS149..A199306-199308

main90412-10188iJZS149..A199110-199508

main90412-10189iJZS149..A199110-199508

main90413-10211iJZS141,143,LS141..4FC199110-199508

47312TUBE, FRONT BRAKE, NO.2

main47312-30300iJZS147,149,UZS14#199110-199508

main47312-30310iGS141,JZS141,143,LS141199110-199508

main47312-30320iJZS141..ROYT199210-199308

main47312-30320iJZS143..ROY199308-199508

main47312-30320iJZS143,145..ROYG,ROYT199110-199210

main47312-30360iJZS145199308-199508

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10146iGS141,JZS141,143,145,LS141199110-199508

main90413-10283iJZS147,149..A199210-199508

47313TUBE, FRONT BRAKE, NO.3

main47313-30190iJZS147199210-199306

main47313-30190iJZS149..A199110-199308

main47313-30190iJZS147,149..A199306-199508

main47313-30230iJZS143..ROYT199210-199308

main47313-30230iJZS143..ROY199308-199508

main47313-30230iJZS141,143,145,LS141199110-199210

main47313-30240iJZS147199210-199508

main47313-30270iJZS145,LS141199308-199508

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02543iGS141,JZS141,143,145,LS141199110-199508

sub90947-02976

main90947-02674iJZS147,149,UZS141,147199110-199508

sub90947-02837

main90947-02737iUZS143,145199210-199508

sub90947-02838

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iGS141,JZS141,143,145,LS141199110-199508

main90401-10044iJZS147,149,UZS14#199110-199409

main90401-10058iJZS147,149,UZS14#199409-199508

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iGS141,JZS14#,LS141,UZS14#199110-199508

main47389-50020iJZS147,149,UZS14#199503-199508

47314TUBE, FRONT BRAKE, NO.4

main47314-30240iJZS147199306-199508

main47314-30240iJZS147199210-199306

main47314-30240iJZS149..B199110-199308

main47314-30260iGS141,JZS141,143,LS141199110-199508

main47314-30270iJZS143..ROY199308-199508

main47314-30270iJZS143,145..ROYG,ROYT199110-199210

main47314-30270iJZS141..ROYT199210-199308

main47314-30280iJZS147199210-199508

main47314-30310iJZS145199308-199508

47315TUBE, FRONT BRAKE, NO.5

main47315-30420iJZS141..ROYT199110-199308

main47315-30420iJZS143..ROY199308-199508

main47315-30460iJZS141,143,LS141..4FC199110-199508

main47315-30480iJZS145199308-199508

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02672iJZS147,149,UZS14#199110-199508

sub90947-02839

main96940-39956iGS141,JZS141,143,145,LS141199110-199508

sub90947-02975

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02672iJZS147,149,UZS14#199110-199508

sub90947-02839

main96940-39956iGS141,JZS141,143,145,LS141199110-199508

sub90947-02975

47321TUBE, REAR BRAKE, NO.1

main47321-30160iJZS147199110-199508

main47321-30170iJZS147199210-199306

main47321-30170iJZS147199306-199508

main47321-30170iJZS149..B199110-199308

main47321-30190iJZS147,149..A199210-199508

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10144iGS141,JZS141,143,145,LS141199110-199508

47322TUBE, REAR BRAKE, NO.2

main47322-30100iGS141,JZS141,143,145,LS141199110-199508

main47322-30130iJZS149..B199110-199508

main47322-30140iJZS147199210-199306

main47322-30140iJZS149..B199110-199308

main47322-30140iJZS147,149..A199306-199508

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10157iGS141,JZS141,143,145,LS141199110-199508

47323TUBE, REAR BRAKE, NO.3

main47323-30121iGS141,JZS141,143,145,LS141199110-199508

47324TUBE, REAR BRAKE, NO.4

main47324-30081iGS141,JZS141,143,145,LS141199110-199508

47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

main96950-32156iGS141,JZS141,143,145,LS141199110-199508

sub90947-02974

47325TUBE, REAR BRAKE, NO.5

main47325-30021iGS141,JZS141,143,145,LS141199110-199508

47326TUBE, REAR BRAKE, NO.6

main47326-30021iGS141,JZS141,143,145,LS141199110-199508

main47326-30030iJZS149,UZS141..B,C199110-199508

sub47326-30070

main47326-30040iJZS149..A199110-199508

sub47326-30080

main47326-30050iUZS143,145199210-199508

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-30030iGS141,JZS141,143,145,LS141199110-199508

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-30030iGS141,JZS141,143,145,LS141199110-199508

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-30210iGS141,JZS141,143,145,LS141199110-199508

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-30090iGS141,JZS141,143,145,LS141199110-199508

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30140iGS141,JZS141,143,145,LS141199110-199508

main47371-30190iJZS147,149,UZS14#199110-199508

47372CLAMP, BRAKE TUBE, NO.2

main47371-30120iGS141,JZS141,143,145,LS141199110-199508

main47371-30170iJZS147,149,UZS141,147199110-199508

main47371-30180iUZS143,145199210-199508

9011906005

main90119-06005

9011906635

main90119-06635

9046106051

main90461-06051

9046808034

main90468-08034

9048001555

main90480-01555

9161160814

main91611-60814

9165160816

main91651-60816

91651G0614

main91651-G0614

35 parts on this diagram · 12 diagrams in section
