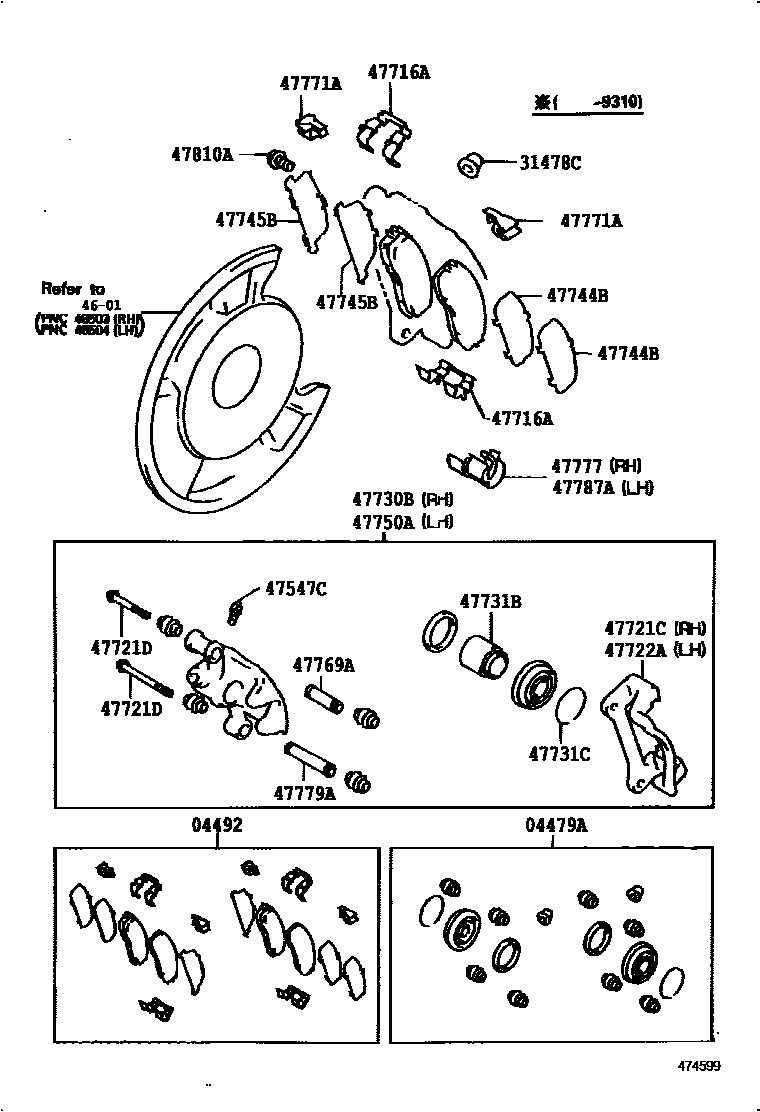

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30110iGS141,JZS141,143,145,LS141199110-199503

sub04479-30111

main04479-30111iGS141,JZS141,143,145,LS141199503-199508

main04479-30140iJZS147,149,UZS14#199110-199503

sub04479-30141

main04479-30141iJZS147,149,UZS14#199503-199508

04492PAD KIT, DISC BRAKE, REAR

main04492-24090iJZS147,149,UZS141,147199302-199505

sub04466-30020

main04492-30130iGS141,JZS141,143,145,LS141199110-199505

sub04466-30010

main04492-30140iUZS143,145199210-199302

sub04492-50040

main04492-30150iJZS147,149,UZS141199110-199302

sub04492-24090

main04492-50040iUZS143,145199302-199505

sub04466-30030

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGS141,JZS14#,LS141,UZS14#199110-199508

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iJZS147,149,UZS14#199110-199508

main47547-27040iGS141,JZS141,143,145,LS141199110-199508

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-30050iGS141,JZS141,143,145,LS141199110-199508

main47716-50020iJZS147,149,UZS14#199110-199508

main47716-50040iJZS147,149,UZS14#199110-199508

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-24050iJZS147,149,UZS141,147199110-199508

main47721-24060iUZS143,145199210-199508

main47721-30190iGS141,JZS141,143,145,LS141199110-199508

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iJZS147,149,UZS14#199110-199508

main90119-09013iGS141,JZS141,143,145,LS141199110-199508

main90119-09014iGS141,JZS141,143,145,LS141199110-199508

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-30190iGS141,JZS141,143,145,LS141199110-199508

main47722-24050iJZS147,149,UZS141,147199110-199508

main47722-24060iUZS143,145199210-199508

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30270iUZS143,145199210-199508

main47730-30280iJZS147,149,UZS141,147199110-199508

main47730-30290iGS141,JZS141,143,145,LS141199110-199508

47731BPISTON, REAR DISC BRAKE

main47731-30090iGS141,JZS141,143,145,LS141199110-199508

main47731-50040iJZS147,149,UZS14#199110-199508

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-49001iGS141,JZS141,143,145,LS141199110-199508

main90522-50002iJZS147,149,UZS14#199110-199508

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-22091iGS141,JZS141,143,145,LS141199110-199508

main47744-24020iJZS147,149,UZS14#199110-199508

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-22051iGS141,JZS141,143,145,LS141199110-199508

main47745-24020iJZS147,149,UZS14#199110-199508

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30270iUZS143,145199210-199508

main47750-30280iJZS147,149,UZS141,147199110-199508

main47750-30290iGS141,JZS141,143,145,LS141199110-199508

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-30030iJZS141,143,145,LS141199110-199508

main47769-50010iJZS147,149,UZS14#199110-199508

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22040iGS141,JZS141,143,145,LS141199110-199508

47777PROTECTOR, DUST BOOT, RH

main47777-30020iJZS145199110-199508

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-20010iGS141,JZS141,143,145,LS141199110-199508

47787APROTECTOR, DUST BOOT, LH

main47787-30010iJZS145199110-199508

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iJZS147,149,UZS14#199110-199508

main90119-10379iGS141,JZS141,143,145,LS141199110-199508

21 parts on this diagram · 3 diagrams in section
