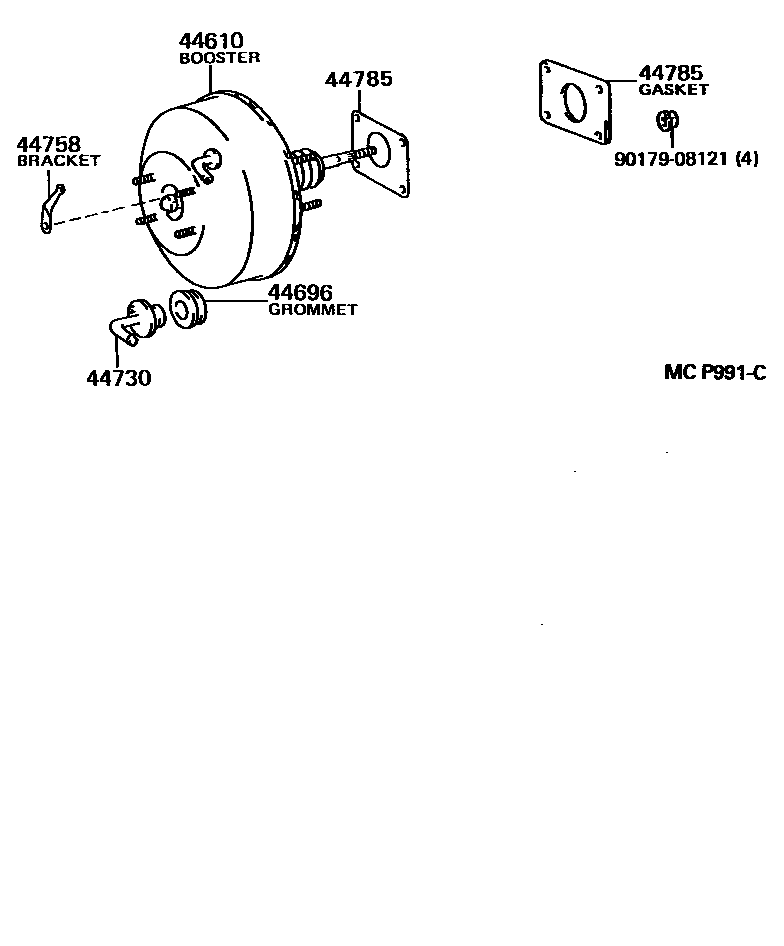

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

44610BOOSTER ASSY, BRAKE

main44610-30780iJZS147,149..A199110-199508

main44610-30790iJZS143,145199110-199508

main44610-30850iGS141,JZS141199110-199508

main44610-30871iLS141199110-199508

44696GROMMET, CHECK VALVE

main90480-24015iJZS143,145199110-199508

main90480-24439iGS141,JZS141199110-199508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iGS141,JZS141199110-199508

main44730-22120iJZS149..A199110-199508

main44730-28010iJZS143,145199110-199508

main44730-60050iLS141199110-199508

44758BRACKET, VACUUM CHECK VALVE

main44758-30150iGS141,JZS141,143,145199110-199508

44785GASKET, BRAKE BOOSTER

main44785-30020iGS141,JZS141,143,145,LS141199110-199508

main44785-30030iGS141,JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL199308-199508

main44785-30030iJZS14#,LS141199110-199308

9017908121

main90179-08121

6 parts on this diagram · 6 diagrams in section
