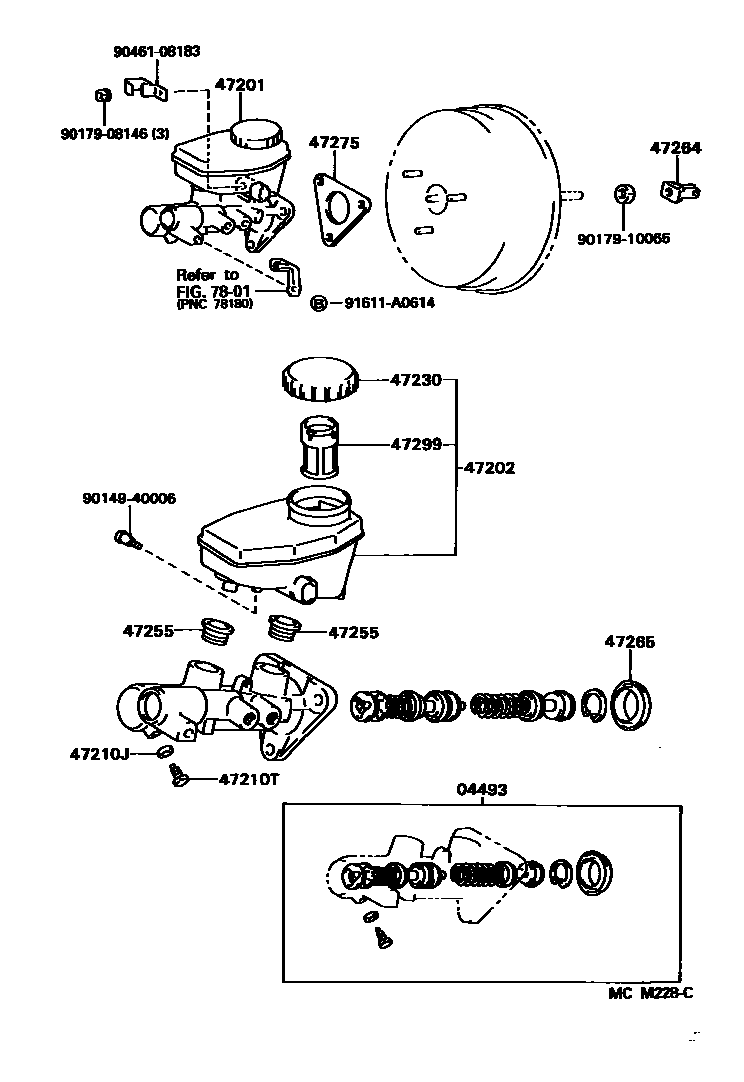

BRAKE MASTER CYLINDER

0001 1 0003 1��(������ ����-�)

04493CYLINDER KIT, BRAKE MASTER

main04493-24050iJZS14#..A,ROY,ROYG,ROYT,SALEX,SSL199110-199508

sub04493-30240

main04493-24060iJZS149..A199110-199508

main04493-30210iLS141199110-199407

sub04493-30211

main04493-30211iLS141199407-199508

sub04493-30231

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30380iJZS147,149199110-199508

main47201-30390iJZS141,145199110-199508

main47201-30400iJZS143199110-199508

main47201-30410iLS141199110-199508

main47201-39015iJZS147,149199110-199508

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-30130iGS141,JZS141,143,145,LS141199110-199508

main47202-30170iJZS147,149..A199110-199508

sub47220-30060

main47220-24021iJZS149..A199110-199508

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iJZS143,149,LS141..A,ROY,ROYT,SALEX,SSL199110-199508

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iJZS143199110-199508

main90109-06077iJZS143,145,147,149,LS141199210-199508

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iJZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL199110-199508

sub47230-47090

main84460-24020iJZS149,UZS141..B,C199110-199508

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGS141,JZS14#,LS141,UZS14#199110-199508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30040iJZS149,UZS141..B,C199110-199508

main47264-50010iJZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL199110-199508

47265BOOT, MASTER CYLINDER

main47265-20050iLS141199110-199508

main47265-22030iJZS14#199110-199508

47275GASKET, BRAKE MASTER CYLINDER

main47275-24020iJZS149,UZS141..B,C199110-199508

main47275-32010iJZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL199110-199508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iJZS14#,LS141199110-199508

7801

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

9046108183

main90461-08183

91611A0614

main91611-A0614

17 parts on this diagram · 2 diagrams in section
