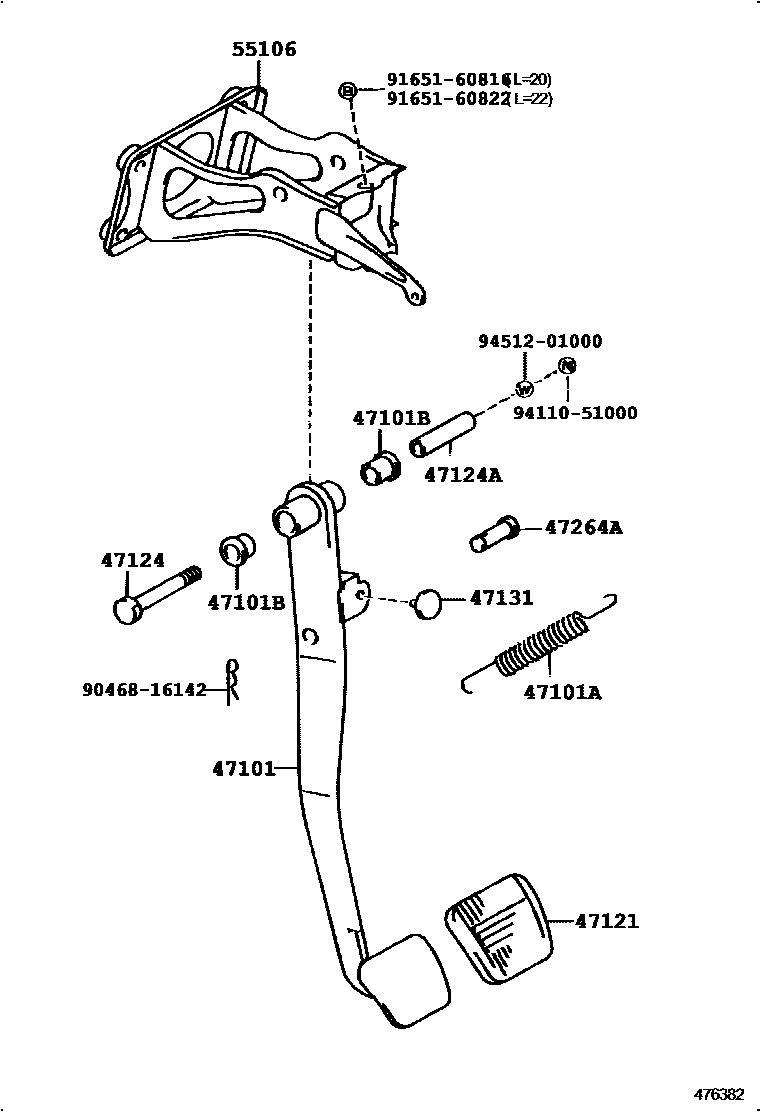

BRAKE PEDAL & BRACKET

0001 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-30310iJZS147,149,UZS14#199110-199508

main47101-30330iGS141,JZS141,143,145,LS141199110-199508

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12033iJZS147,149,UZS14#199110-199508

main90507-12039iGS141,JZS141,143,145,LS141199110-199508

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iJZS141,143,145,LS141199110-199508

main90386-13192iJZS147,149,UZS14#199110-199308

47121PAD, BRAKE PEDAL

main47121-14010iGS141,JZS14#,LS141,UZS14#199110-199508

47124SHAFT, BRAKE PEDAL

main90101-10039iJZS147,149,UZS14#199110-199508

main90101-10164iGS141,JZS141,143,145,LS141199110-199508

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iJZS147,149,UZS14#199110-199508

main90387-10105iGS141,JZS141,143,145,LS141199110-199508

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGS141,JZS14#,LS141,UZS14#199110-199508

47264APIN(FOR PUSH ROD)

main90249-10064iGS141,JZS14#,LS141,UZS14#199110-199508

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-30220iJZS147,149,UZS14#199110-199508

main55106-30230iGS141,JZS141,143,145,LS141199110-199508

9046816142

main90468-16142

9165160816

main91651-60816

9165160822

main91651-60822

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
