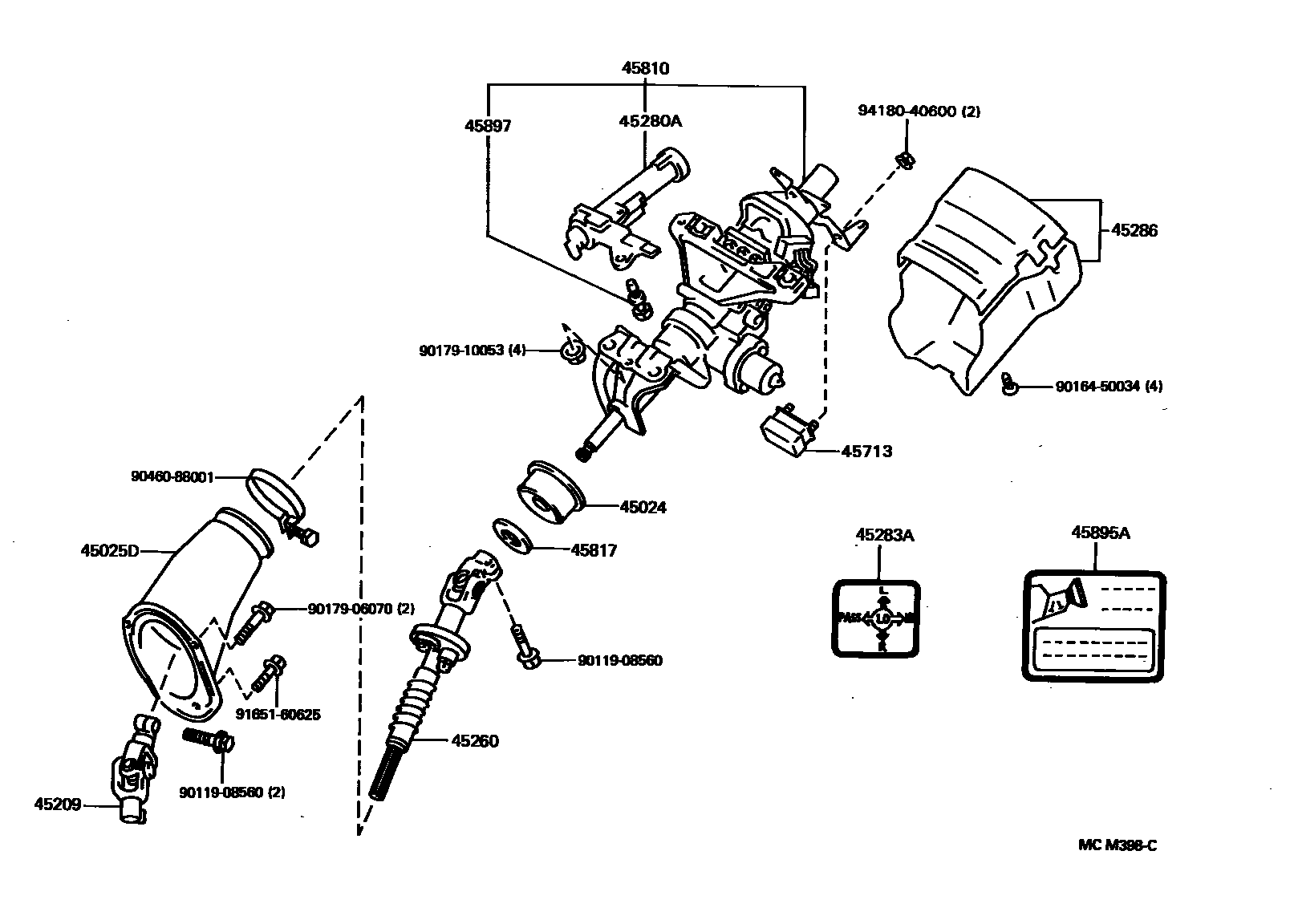

STEERING COLUMN & SHAFT

0001 1 0002 1 0004 1���� ������ ������� 0006 1 0008 1

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-30010iJZS149,UZS141199110-199206

sub45024-30011

main45024-30011iJZS147,149,UZS14#199206-199211

sub45026-30010

main45026-30010iJZS147,149,UZS14#199211-199508

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30190iJZS143,145199110-199508

main45025-30220iGS141,JZS141,LS141199110-199508

sub45025-30221

main45025-30250iJZS147,149,UZS14#199110-199508

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-22020iJZS147,149,UZS141,147199110-199508

main45209-30020iUZS143,145199210-199508

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30010iJZS149,UZS141199110-199111

main45260-30020iJZS147,149,UZS14#199111-199508

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-30530iJZS143..ROYT199208-199210

main45280-30530iGS141,JZS141,143,LS141199210-199508

main45280-30560iJZS143..ROYT199208-199303

main45280-30560iJZS143,145..ROYG,ROYT199208-199210

main45280-30590iJZS147,149,UZS14#199110-199508

main45280-30610iJZS141,143,LS141..4FC199110-199208

sub45280-30530

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iGS141,JZS14#,LS141,UZS14#199110-199508

45286COVER, STEERING COLUMN

main45287-30945-B0iJZS141,143,LS141199110-199304

SHADOW GRAY,TRIM1#

sub45287-30945

main45287-30945-E0iJZS141,143,LS141..4FC199110-199304

DARK ROSE,TRIM4#

sub45287-30945

main45287-30945-J0iJZS141,143,LS141..ROY,SALEX,SSL199110-199304

DARK BLUE,TRIM8#

sub45287-30945

main45287-30946-B0iJZS145199110-199508

sub45287-30946

main45287-30946-B0iJZS145199110-199508

SHADOW GRAY,TRIM1#

sub45287-30946

main45287-30946-E0iJZS145199110-199508

DARK ROSE,TRIM4#

sub45287-30946

main45287-30946-E0iJZS145199110-199508

sub45287-30946

main45287-30946-J0iGS141,JZS141,143,LS141..ROY,SALEX,SSL199110-199508

DARK BLUE,TRIM8#

sub45287-30946

main45287-30946-J0iJZS145199110-199508

sub45287-30946

main45287-30949-B0iJZS143..ROYT199110-199508

sub45287-30949

main45287-30949-E0iJZS145199110-199508

sub45287-30949

main45287-30949-J0iJZS145199110-199508

sub45287-30949

main45287-30950-B0iJZS147,149,UZS14#199110-199304

SHADOW GRAY,TRIM1#

sub45287-30960

main45287-30950-E1iJZS147,149,UZS14#199110-199304

DARK ROSE,TRIM4#

sub45287-30960

main45287-30950-J0iJZS149,UZS14#199110-199304

DARK BLUE,TRIM8#

sub45287-30960

main45287-30958iJZS141,LS141..SALEX,SSL199110-199304

sub45287-30945

main45287-30958-B0iGS141,JZS141,143,LS141199304-199508

SHADOW GRAY,TRIM1#

sub45287-30945

sub45287-30958

main45287-30958-E1iGS141,JZS141,143,LS141199304-199508

DK.ROSE,TRIM4#

sub45287-30945

sub45287-30958

main45287-30958-J0iGS141,JZS141,143,LS141..ROY,SALEX,SSL199304-199508

DK.BLUE,TRIM8#

sub45287-30945

sub45287-30958

main45287-30960-B0iJZS147,149,UZS14#199304-199508

SHADOW GRAY,TRIM1#

sub45287-30960

main45287-30960-E0iJZS147,149,UZS14#199304-199508

DK.ROSE,TRIM4#

sub45287-30960

main45287-30960-J0iJZS149,UZS141,143,145199304-199508

DK.BLUE,TRIM8#

sub45287-30960

45713DUMPER, STEERING SHAKE

main45713-30050iUZS143,145199210-199508

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30040iJZS147,149,UZS14#199110-199508

main45810-30070iJZS141,143,145,LS141199110-199210

main45810-30070iGS141,JZS141,143,145,LS141..4FC199210-199508

45817STOPPER, STEERING SHAFT THRUST

main45817-22030iJZS147,149,UZS14#199110-199508

45895APLATE, TILT STEERING CAUTION

main45895-22050iGS141,JZS141,LS141..SALEX,SSL199110-199508

main45895-30060iGS141,JZS141,143,LS141199110-199508

main45895-30110iJZS147,149,UZS14#199110-199308

main45895-30120iJZS145199110-199508

main45895-30120iJZS143,145..ROYG,ROYT199110-199210

45897BOLT, STEERING LOCK SET

main45897-12020iJZS147,149,UZS14#199110-199508

9011908560

main90119-08560

9016450034

main90164-50034

9017906070

main90179-06070

9017910053

main90179-10053

9046088001

main90460-88001

9165160625

main91651-60625

9418040600

main94180-40600

19 parts on this diagram · 5 diagrams in section
