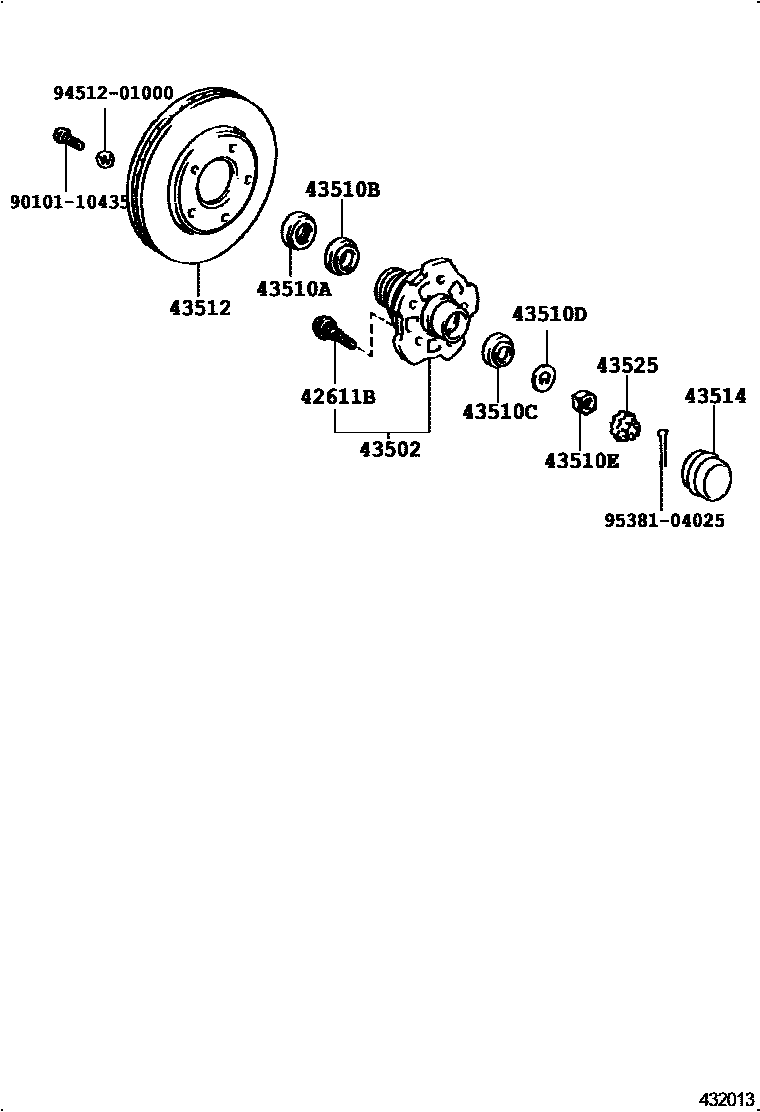

FRONT AXLE HUB

0001 1 0002 1 0003 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048iGS141,JZS141,143,145,LS141199110-199508

43502HUB SUB-ASSY, FRONT AXLE

main43502-30110iJZS141,143,LS141..4FC199110-199508

main43503-30040iJZS143,145..ROYG,ROYT199110-199508

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iJZS143..ROYT199210-199308

main90311-48001iGS141,JZS141,143,145,LS141199110-199508

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34083iJZS143,145..ROYG,ROYT199110-199508

main90368-34083iJZS145199210-199308

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21082iJZS141,143,LS141199210-199308

main90368-21082iJZS143,145..ROYG,ROYT199110-199508

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iJZS143,145..ROYG,ROYT199110-199508

main90214-20005iJZS145199210-199308

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iJZS141,143,LS141..4FC199110-199508

main90170-19185iJZS145199210-199308

43512DISC, FRONT

main43512-30210iJZS147,149,UZS141,147199210-199508

main43512-30220iJZS141,143,145,LS141199210-199508

main43512-30250iJZS149,UZS141199110-199210

sub43512-30210

main43512-30260iJZS141,143,145,LS141199110-199210

sub43512-30220

main43512-50090iUZS143,145199210-199303

sub43512-30241

sub43512-50120

main43512-50100iUZS143,145199303-199508

43514CAP, FRONT HUB GREASE

main43514-22020iJZS145199210-199308

main43514-22020iJZS143,145..ROYG,ROYT199110-199402

main43514-30040iGS141,JZS141,143,145,LS141199402-199508

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iJZS143,145..ROYG,ROYT199110-199508

main43525-22010iJZS145199210-199308

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 3 diagrams in section
