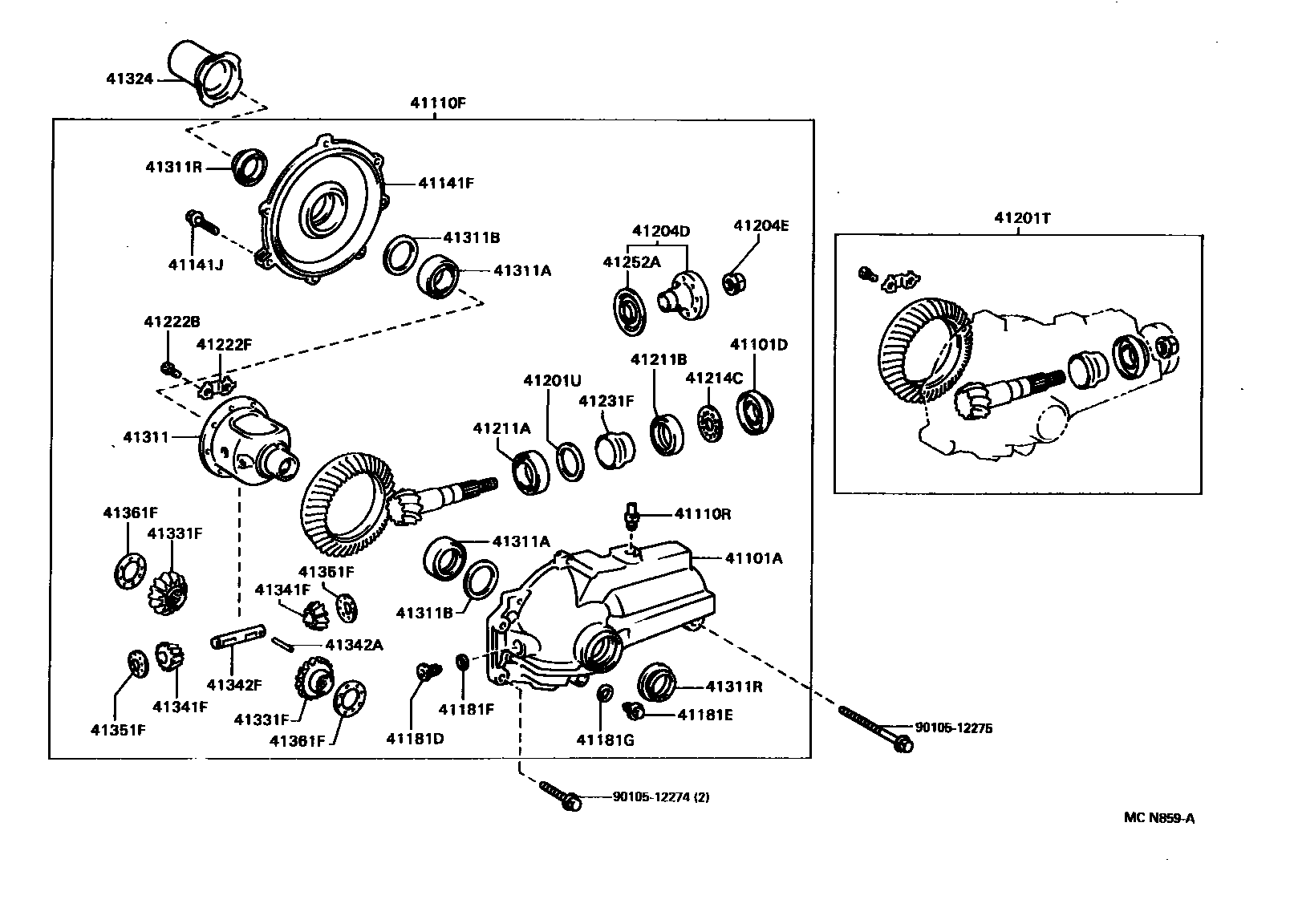

FRONT AXLE HOUSING & DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
sub90311-43015
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
sub90341-24014
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
sub90430-24017
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
sub90564-54006
sub90564-54008
sub90564-54010
sub90564-54012
sub90564-54014
sub90564-54016
sub90564-54018
sub90564-54020
sub90564-54022
sub90564-54024
sub90564-54026
sub90564-54028
sub90564-54030
sub90564-54032
sub90564-54034
sub90564-54036
sub90564-54038
sub90564-54040
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
41311RSEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
41324GUIDE, FRONT DIFFERENTIAL OIL SEAL
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
9010512274
main90105-12274
9010512275
main90105-12275
34 parts on this diagram · 1 diagram in section
