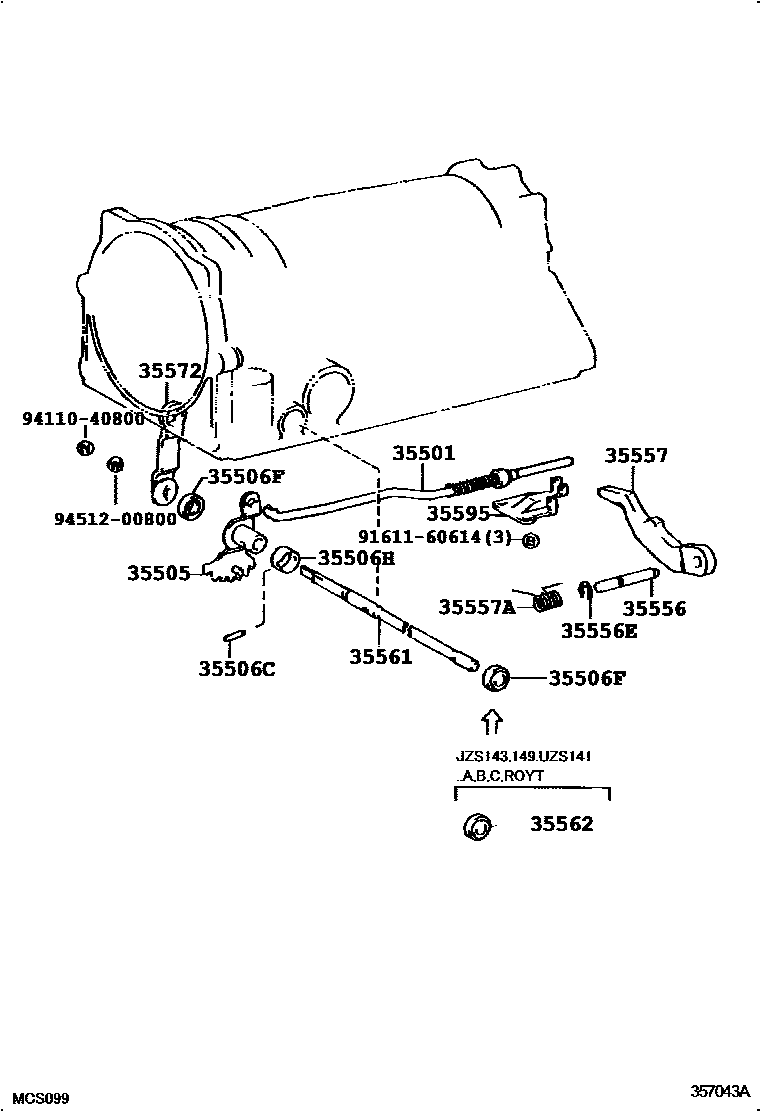

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A341E,A350E 0002 1A340E,A341E 0003 1A340H,A341E 0004 1A340E 0005 1A341E 0006 1A340H,A341E 0007 1A42DL 0008 1A42DL

35501ROD SUB-ASSY, PARKING LOCK

main35501-22020iGS141199308-199508

main35501-30010iJZS14#,LS141,UZS14#199110-199508

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22050iGS141199308-199508

main35505-22060iJZS141,LS141199110-199508

main35505-30030iJZS143..ROYT199110-199508

main35505-50010iJZS143,145,147,149,UZS14#..4FC199110-199508

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGS141,JZS14#,LS141,UZS14#199110-199508

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iGS141199308-199508

main90311-12002iJZS14#,LS141,UZS14#199110-199508

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iGS141199308-199508

sub90560-20025

main90560-20006iJZS14#,LS141,UZS14#199110-199508

35556SHAFT, PARKING LOCK PAWL

main35556-26010iGS141199308-199508

main35556-30020iJZS14#,LS141,UZS14#199110-199508

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGS141,JZS14#,LS141,UZS14#199110-199508

35557PAWL, PARKING LOCK

main35557-30020iJZS14#,LS141,UZS14#199110-199508

main35557-35010iGS141199308-199508

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJZS14#,LS141,UZS14#199110-199508

main90508-25001iGS141199308-199508

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJZS14#,LS141,UZS141,147199110-199508

main35561-35010iUZS143,145199210-199508

main35561-40010iGS141199308-199508

main35561-50010iJZS143,145,149,UZS141199110-199207

35562CAP, MANUAL VALVE LEVER SHAFT

main35562-50010iJZS143,149,UZS141..A,B,C,ROYT199110-199207

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22040iGS141199308-199508

main35572-30060iJZS141,LS141199110-199508

main35572-50011iJZS143,145,147,149,UZS141199110-199306

sub35572-30060

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJZS14#,LS141,UZS14#199110-199508

main35595-40010iGS141199308-199508

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

16 parts on this diagram · 8 diagrams in section
