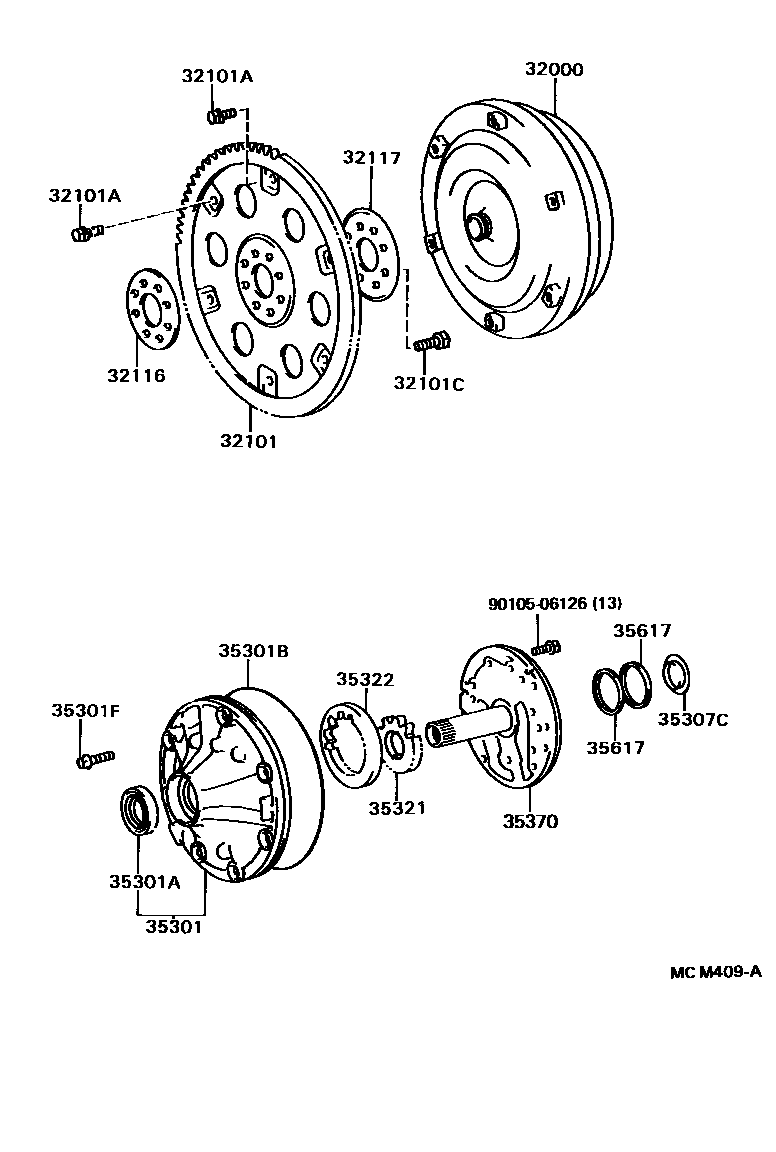

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A340E,A341E,A341H,A350E 0002 1A42DL

32000CONVERTER ASSY, TORQUE

main32000-22160iJZS141199110-199508

main32000-30240iGS141199308-199508

main32000-30260iUZS14#199110-199507

sub32000-30320

main32000-30270iLS141199110-199308

main32000-30280iJZS143,145,147,149199110-199308

main32000-30290iLS141199308-199508

main32000-30300iJZS143,145,147,149199308-199508

main32000-30320iUZS14#199506-199508

sub32000-30321

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-22050iJZS14#199110-199508

main32101-24012iGS141199308-199508

main32101-35020iLS141199110-199508

main32101-50010iUZS14#199110-199508

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009iGS141,JZS14#,LS141,UZS14#199110-199508

main90119-09010iGS141,JZS141,143,145,LS141199110-199508

main90119-09017iJZS147,149,UZS14#199110-199508

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046iGS141199308-199508

main90105-10226iUZS14#199110-199508

main90105-10294iJZS14#199110-199508

main90105-12014iLS141199110-199508

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGS141199308-199508

main32116-22020iJZS14#199110-199508

main32116-35010iLS141199110-199508

main32116-50010iUZS14#199110-199508

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGS141199308-199508

main32117-22020iJZS14#199110-199508

main32117-35010iLS141199110-199508

main32117-50010iUZS14#199110-199508

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGS141199308-199508

main35301-30040iJZS141,LS141199110-199508

main35301-35010iJZS143,145,147,149,UZS14#199110-199508

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGS141199308-199508

main90311-38029iJZS14#,LS141,UZS14#199110-199508

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGS141199308-199508

main90301-99033iJZS14#,LS141,UZS14#199110-199508

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iJZS14#,LS141,UZS14#199110-199508

main90105-08137iGS141199308-199508

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iJZS14#,LS141,UZS14#199110-199508

sub35789-30340

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iJZS143,145,147,149,UZS14#199110-199508

main35321-12070iJZS141,LS141199307-199508

main35321-12080iJZS141,LS141199307-199508

main35321-12090iJZS141,LS141199110-199508

main35321-12100iJZS141,LS141199307-199508

main35321-12110iJZS141,LS141199307-199508

main35321-22020iGS141199308-199508

main35321-22030iGS141199308-199508

main35321-22040iGS141199308-199508

main35321-22050iGS141199308-199508

main35321-22060iGS141199308-199508

main35321-32050iJZS141199110-199210

sub35321-12090

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iJZS143,145,147,149,UZS14#199110-199508

main35322-12060iJZS141,LS141199307-199508

main35322-12070iJZS141,LS141199307-199508

main35322-12080iJZS141,LS141199110-199508

main35322-12090iJZS141,LS141199307-199508

main35322-12100iJZS141,LS141199307-199508

main35322-22020iGS141199308-199508

main35322-22030iGS141199308-199508

main35322-22040iGS141199308-199508

main35322-22050iGS141199308-199508

main35322-22060iGS141199308-199508

main35322-32050iJZS141199110-199210

sub35322-12080

35370SHAFT ASSY, STATOR

main35370-14012iGS141199308-199508

main35370-30031iJZS14#,LS141199110-199508

main35370-50010iUZS14#199110-199508

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iJZS14#,LS141,UZS14#199110-199508

main35617-32010iGS141199308-199508

9010506126

main90105-06126

16 parts on this diagram · 2 diagrams in section
