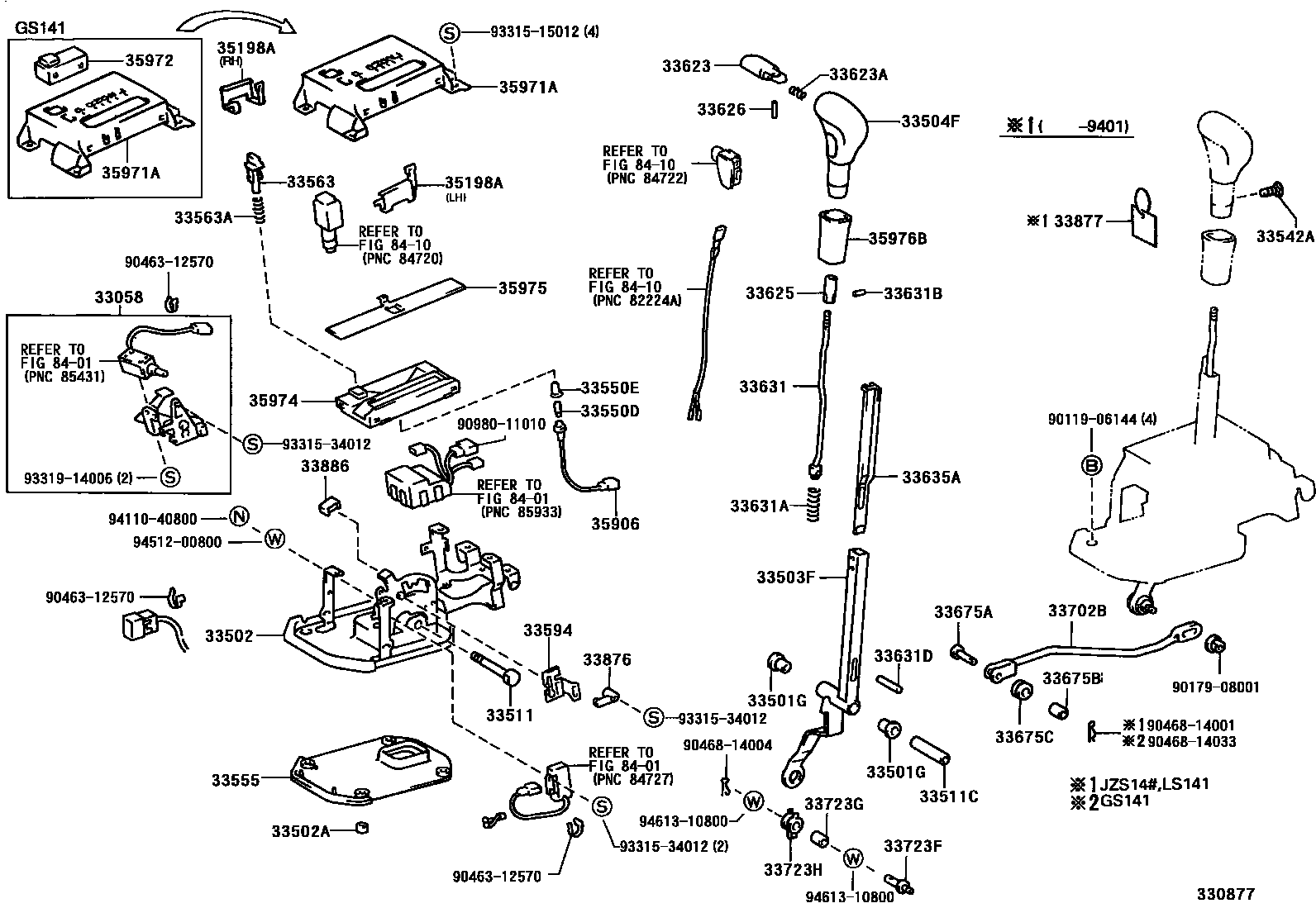

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-30030iJZS147,149,UZS141,147199110-199508

main33058-30040iGS141,JZS141,143,145,LS141199110-199508

main33058-30050iUZS143,145199210-199508

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003iGS141,JZS141,143,145,LS141199110-199508

main90385-11020iJZS147,149,UZS14#199110-199508

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-30290iJZS147,149,UZS141,147199110-199508

main33502-30300iGS141,JZS141,143,145,LS141199110-199508

main33502-30320iUZS143,145199210-199508

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06061iJZS147,149,UZS14#199110-199508

main90387-06065iGS141,JZS141,143,145,LS141199110-199508

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-30020iJZS147,149,UZS141,147199110-199508

main33055-30030iGS141,JZS141,143,145,LS141199110-199508

main33055-30050iUZS143,145199210-199508

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-30230-B0iJZS141,143..ROY199110-199508

sub33542-30230

main33542-30230-B0iJZS141,143..ROY199110-199508

SHADOW,TRIM1#

sub33542-30230

main33542-30230-E1iJZS14#,UZS14#..A,B,C,ROYG,ROYT199110-199508

QUARTZ,TRIM4#

sub33542-30230

main33542-30230-E1iJZS141,143..ROY199110-199508

sub33542-30230

main33542-30230-J1iJZS145,147,149,UZS14#199110-199508

DK.BLUE,TRIM8#

sub33542-30230

main33542-30230-J1iJZS141,143..ROY199110-199508

sub33542-30230

main33542-30240-B0iGS141,JZS141,143,LS141..ROY,SALEX,SSL199110-199508

SHAD0W GRAY,TRIM1#

sub33542-30240

main33542-30240-B2iGS141,JZS141,143,LS141..ROY,SALEX,SSL199308-199508

SHADO GRAY,TRIM1#

sub33542-30240

main33542-30240-E0iJZS141,143,LS141..ROY,SALEX,SSL199110-199308

QUARTZ,TRIM4#

sub33542-30240

main33542-30240-E2iGS141,JZS141,143,LS141..ROY,SALEX,SSL199308-199508

DK.ROSE,TRIM4#

sub33542-30240

main33542-30240-J0iJZS141,143,LS141..ROY,SALEX,SSL199110-199308

DARK BLUE,TRIM8#

sub33542-30240

main33542-30240-J2iGS141,JZS141,143,LS141..ROY,SALEX,SSL199308-199508

DK.BLUE,TRIM8#

sub33542-30240

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-50010iGS141,JZS14#,LS141,UZS14#199110-199508

33511CCOLLAR (FOR CONTROL SHAFT)

main90387-08098iGS141,JZS14#,LS141,UZS14#199110-199508

33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)

main90159-50312iGS141,JZS14#,LS141,UZS14#199110-199508

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iGS141,JZS141,143,145,LS141199110-199508

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iGS141,JZS141,143,145,LS141199110-199508

33555BOOT, SHIFT LEVER

main33555-30180iJZS147,149,UZS141,147199110-199508

sub33555-30280

main33555-30200iUZS143,145199210-199508

sub33555-30300

main33555-30220iGS141,JZS141,143,145,LS141199110-199508

33563BUTTON, SHIFT LOCK RELEASE

main33563-30040iGS141,JZS141,143,145,LS141199110-199508

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-06058iGS141,JZS141,143,145,LS141199110-199508

33594PLATE, SHIFT LOCK (FOR FLOOR SHIFT)

main33594-30060iJZS147,149,UZS141,147199110-199508

main33594-30080iGS141,JZS141,143,145,LS141199110-199508

main33594-30090iUZS143,145199210-199508

33623BUTTON, SHIFT LEVER KNOB

main33623-30110-B0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

sub33623-30110

main33623-30110-E1iGS141,JZS14#,LS141,UZS14#199110-199508

DARK ROSE,TRIM4#

sub33623-30110

main33623-30110-J0iGS141,JZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL199110-199508

DARK BLUE,TRIM8#

sub33623-30110

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iGS141,JZS14#,LS141,UZS14#199110-199508

33625SLEEVE, SHIFT LEVER KNOB

main33625-30030iGS141,JZS14#,LS141,UZS14#199110-199508

33626STOPPER, SHIFT LEVER BUTTON

main90256-02004iGS141,JZS14#,LS141,UZS14#199110-199508

33631ROD, DETENT

main33631-30080iJZS147,149,UZS141,147199110-199508

main33631-30100iUZS143,145199210-199508

main33631-30130iGS141,JZS141,143,145,LS141199110-199508

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07082iJZS147,149,UZS141,147199110-199508

main90501-08147iGS141,JZS141,143,145,LS141,UZS143,145199110-199508

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90256-02003iGS141,JZS14#,LS141,UZS14#199110-199508

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04003iGS141,JZS141,143,145,LS141199110-199508

main90256-04010iJZS147,149,UZS14#199110-199508

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-30070iJZS147,149,UZS141,147199110-199508

main33635-30080iUZS143,145199210-199508

main33635-30100iGS141,JZS141,143,145,LS141199110-199508

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iJZS147,149,UZS14#199110-199508

L=24.1

main90240-08120iGS141,JZS141,143,145,LS141199110-199508

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iGS141,JZS14#,LS141,UZS14#199110-199508

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17023iJZS14#,LS141,UZS14#199110-199508

main90480-17177iGS141199308-199508

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30260iUZS141,147199110-199508

main33702-30270iJZS147,149199110-199508

sub33702-30440

main33702-30290iJZS141,143,145199110-199508

main33702-30300iLS141199110-199508

main33702-30360iUZS143,145199210-199508

main33702-30370iGS141199308-199508

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-30070iGS141,JZS14#,LS141,UZS14#199110-199508

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005iGS141,JZS14#,LS141,UZS14#199110-199508

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main33572-30040iUZS143,145199210-199508

main90480-17177iJZS14#,LS141,UZS141199110-199308

33876GUIDE, SHIFT LOCK PLATE

main33876-30040iJZS147,149,UZS14#199110-199508

main33876-50010iGS141,JZS141,143,145,LS141199110-199508

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-30030iGS141,JZS14#,LS141,UZS14#199110-199401

33886STOPPER, SHIFT LEVER

main33886-22010iGS141,JZS14#,LS141,UZS14#199110-199508

35198ABRACKET, WIRE HARNESS CLAMP, NO.4

main35198-30020iJZS147,149,UZS14#199110-199508

main35198-30050iJZS147,149,UZS141,147199110-199508

main35198-30060iUZS143,145199210-199508

main35198-30080iGS141,JZS141,143,145,LS141199110-199508

main35198-30090iGS141,JZS141,143,145,LS141199110-199508

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-30070iGS141,JZS141,143,145,LS141199110-199508

sub35906-20070

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-30250iGS141,JZS141,143,LS141..4FC199110-199508

main35971-30270iJZS143..ROYT199110-199508

main35971-30280iJZS141,143,LS141..4FC199110-199508

35972COVER, POSITION INDICATOR HOUSING

main35972-30050iJZS143..ROYT199110-199508

main35972-30060iGS141199308-199508

35974HOUSING, POSITION INDICATOR, LOWER

main35974-30080iGS141,JZS141,143,145,LS141199110-199508

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30200iGS141,JZS141,143,145,LS141199110-199508

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-30040-B1iUZS143,145199308-199508

SHADO GRAY,TRIM1#

sub35976-30040

main35976-30040-E1iUZS143,145199308-199508

DK.ROSE,TRIM4#

sub35976-30040

main35976-30040-J1iUZS143,145199308-199508

DK.BLUE,TRIM8#

sub35976-30040

main35976-30060-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

sub35976-30060

main35976-30060-E0iJZS141,143,145,LS141..4FC199110-199508

QUARTZ,TRIM4#

sub35976-30060

main35976-30060-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub35976-30060

main35976-30070-B0iJZS147,149,UZS141,147199110-199508

SHADOW GRAY,TRIM1#

sub35976-30070

main35976-30070-B1iJZS149,UZS141..B,C199308-199508

SHADO GRAY,TRIM1#

sub35976-30070

main35976-30070-E0iJZS147,149,UZS141,147199110-199508

QUARTZ,TRIM4#

sub35976-30070

main35976-30070-E1iJZS147,149,UZS141,147199308-199508

DK.ROSE,TRIM4#

sub35976-30070

main35976-30070-J0iJZS149,UZS141199110-199508

DK.BLUE,TRIM8#

sub35976-30070

8401

8410

9011906144

main90119-06144

9017908001

main90179-08001

9046312570

main90463-12570

9046814001

main90468-14001

9046814004

main90468-14004

9046814033

main90468-14033

9098011010

main90980-11010

9331515012

main93315-15012

9331534012

main93315-34012

9331914006

main93319-14006

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

56 parts on this diagram · 4 diagrams in section
