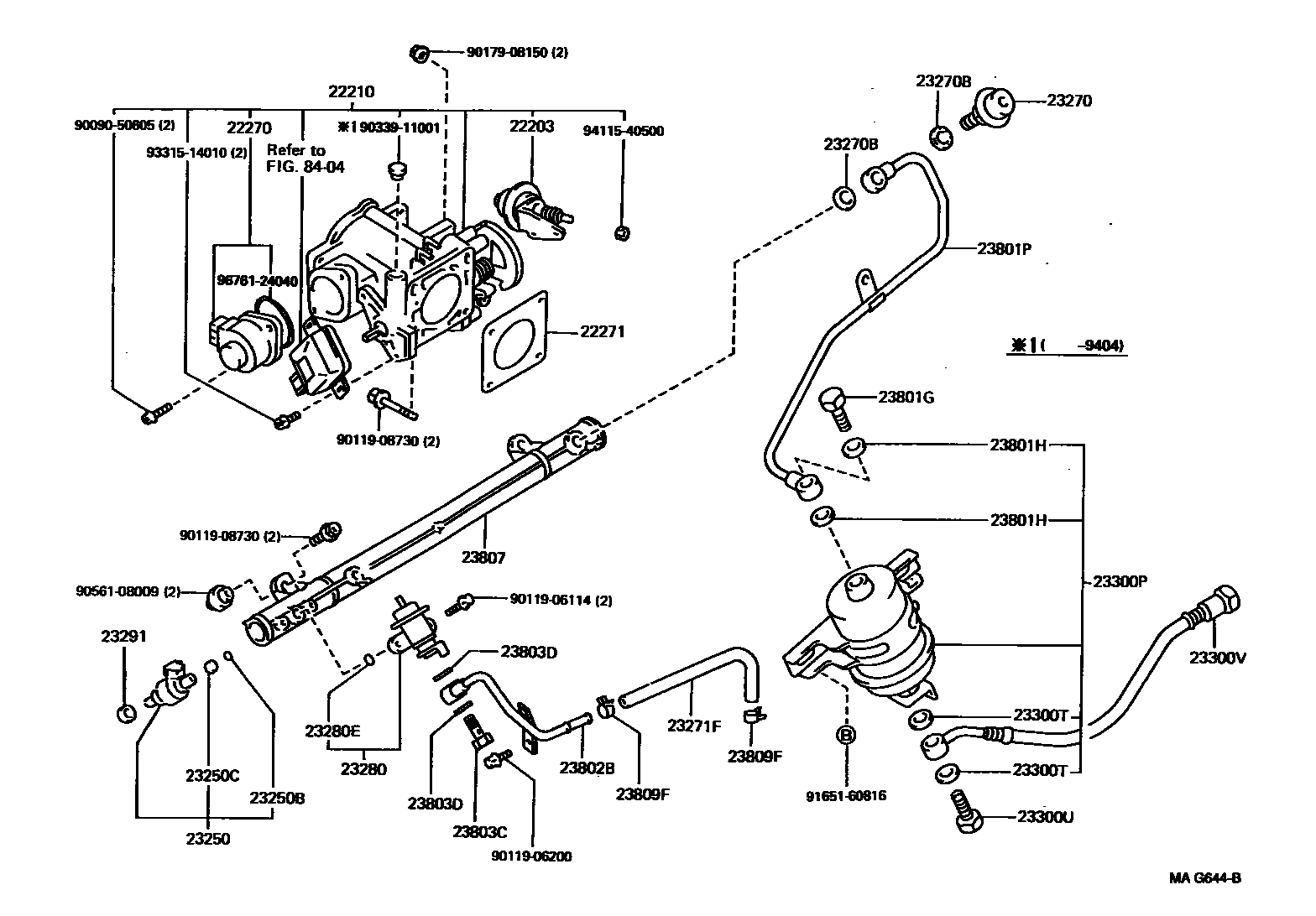

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-46060i2JZGE..JZS143,145,147,149¥5,700199110-199308

main22203-46020i1JZGE..JZS141199110-199308

main22203-70080i1GFE..GS141199308-199508

22210BODY ASSY, THROTTLE

main22030-50060i1UZFE..UZS141¥140,000199110-199210

sub22030-50061¥140,000

main22030-50061i1UZFE..UZS141,147¥140,000199210-199409

main22030-50062i1UZFE..UZS141,147¥140,000199409-199508

main22210-46050i1JZGE..JZS141¥75,500199110-199308

main22210-46070i1JZGE..JZS141¥50,500199110-199202

sub22210-46072¥50,600

main22210-46071i1JZGE..JZS141¥50,500199202-199209

sub22210-46072¥50,600

main22210-46072i1JZGE..JZS141¥50,600199209-199308

main22210-46090i2JZGE..JZS143,149..A,ROY,ROYT¥50,500199110-199201

sub22210-46091¥50,600

main22210-46091i2JZGE..JZS143,149..A,ROY,ROYT¥50,600199201-199308

main22210-46120i2JZGE..JZS145,149..B,ROYG¥50,500199110-199201

sub22210-46121¥50,500

main22210-46121i2JZGE..JZS145,149..B,ROYG¥50,500199201-199308

main22210-46191i1JZGE..JZS141¥50,500199308-199508

main22210-46200i1JZGE..JZS141¥50,500199308-199508

main22210-46230i2JZGE..JZS143,145,147,149..A,ROY,ROYG,ROYT¥50,500199308-199508

main22210-46240i2JZGE..JZS149..B¥50,500199308-199508

main22210-50090i1UZFE..UZS143,145¥50,500199210-199409

main22210-50091i1UZFE..UZS143,145¥50,500199409-199508

main22210-70340i1GFE..GS141¥120,000199308-199507

sub22210-70341¥121,000

sub90999-92002¥460

main22210-70341i1GFE..GS141¥121,000199507-199508

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-46010i1JZGE..JZS141¥83,300199110-199202

main22270-46020i1JZGE..JZS141¥83,300199202-199508

main22270-46020i1JZGE..JZS141¥83,300199110-199202

main22270-46050i2JZGE..JZS143,145,147,149¥83,700199110-199508

main22270-50010i1UZFE..UZS141¥83,300199110-199210

main22270-50020i1UZFE..UZS14#¥83,700199210-199508

main22270-70120i1GFE..GS141¥83,600199308-199508

22271GASKET, THROTTLE BODY

main22271-46010i1JZGE..JZS141¥510199110-199508

main22271-46020i2JZGE..JZS143,145,147,149¥510199110-199508

main22271-50010i1UZFE..UZS14#¥370199110-199508

main22271-70021i1GFE..GS141¥250199308-199508

23250INJECTOR ASSY, FUEL

main23209-46010i1JZGE..JZS141¥20,500199110-199508

main23209-46030i2JZGE..JZS143,145,147,149¥20,500199110-199508

sub23209-46031¥21,100

main23209-50020i1UZFE..UZS14#¥20,500199110-199508

main23209-70100i1GFE..GS141¥20,500199308-199508

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i1JZGE,2JZGE..JZS14#¥350199110-199508

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i1GFE..GS141¥230199110-199508

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46021i1JZGE,2JZGE..JZS14#¥7,400199110-199508

main23270-28030i1GFE..GS141¥6,800199308-199508

sub23207-46010¥7,200

main23270-50010i1UZFE..UZS14#¥6,400199110-199508

sub23270-50011¥6,400

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081i1GFE..GS141¥0199308-199508

main23232-41081i1UZFE..UZS14#¥0199110-199508

DAMPER SIDE

main90430-12026i1UZFE..UZS14#¥90199110-199508

DELIVERY PIPE SIDE

main90430-14008i1JZGE,2JZGE..JZS14#¥90199110-199508

DAMPER SIDE

23271FHOSE, FUEL

main23271-50050i1UZFE..UZS14#¥620199110-199508

main23271-70060i1GFE..GS141¥2,020199308-199508

23280REGULATOR ASSY, FUEL PRESSURE

main23280-46010i1JZGE,2JZGE..JZS14#¥10,000199110-199508

main23280-50010i1UZFE..UZS14#¥9,800199110-199508

main23280-70100i1GFE..GS141¥9,800199308-199508

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GFE..GS141¥350199308-199508

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1GFE..GS141¥340199110-199508

main23291-46010i1JZGE,2JZGE..JZS14#¥120199309-199508

23300PFILTER, FUEL(FOR EFI)

main23300-50030i1JZGE,2JZGE..JZS141,143,145¥7,100199110-199508

main23300-50050i1UZFE..UZS14#¥7,100199110-199508

main23300-79015i1GFE..GS141¥6,900199308-199508

23300TGASKET(FOR FUEL FILTER)

main90430-12026i2JZGE..JZS147,149¥90199110-199508

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12029i1GFE..GS141¥520199308-199508

23300VHOSE, FUEL(FOR FUEL INLET)

main90923-01346i1GFE..GS141¥10,400199308-199508

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12023i1UZFE..UZS143,145¥340199110-199508

main90401-12097i1GFE..GS141¥310199308-199508

23801HGASKET(FOR FUEL PIPE)

main90430-12026i1UZFE..UZS14#¥90199110-199508

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-46020i2JZGE..JZS143,145,147,149¥5,500199110-199308

sub23801-46021¥5,500

main23801-46021i2JZGE..JZS143,145,147,149¥5,500199308-199508

main23801-46050i1JZGE..JZS141¥6,100199110-199209

sub23801-46060¥6,100

main23801-46060i1JZGE..JZS141¥6,100199209-199508

main23801-50010i1UZFE..UZS14#¥2,630199110-199508

main23801-70060i1GFE..GS141¥4,370199308-199508

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-46020i1JZGE..JZS141¥2,970199110-199508

main23802-46030i2JZGE..JZS143,145,147,149¥3,790199110-199311

main23802-46060i2JZGE..JZS143,145,147,149¥4,360199311-199508

main23802-50010i1UZFE..UZS141¥3,070199110-199208

sub23802-50011¥3,090

main23802-50011i1UZFE..UZS14#¥3,090199208-199508

main23802-70050i1GFE..GS141¥3,230199308-199508

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-10038i1UZFE..UZS14#¥340199110-199508

main90430-12026i1JZGE,2JZGE..JZS14#¥90199110-199508

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90401-12023i1JZGE,2JZGE..JZS14#¥340199110-199508

main90430-10012i1GFE..GS141¥150199110-199508

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-46010i1JZGE,2JZGE..JZS14#¥14,600199110-199208

sub23807-46011¥14,400

main23807-46011i1JZGE,2JZGE..JZS14#¥14,400199208-199508

sub23807-46021¥14,600

main23807-50010i1UZFE..UZS141¥12,900199110-199308

sub23807-50011¥12,800

main23807-50020i1UZFE..UZS143,145¥12,700199210-199508

sub23807-50021¥12,700

main23807-70060i1GFE..GS141¥18,100199308-199508

23809FCLIP(FOR FUEL PIPE SUPPORT)

main90467-13001i1GFE..GS141¥230199308-199508

RETURN TUBE SIDE

sub96135-51300¥120

main90467-13065i1GFE..GS141¥200199308-199508

sub96135-51300¥120

8404

9009050605

main90090-50605¥120

9011906114

main90119-06114¥130

9011906200

main90119-06200¥280

9011908730

main90119-08730¥140

9017908150

main90179-08150¥120

9033911001

main90339-11001¥0

9056108009

main90561-08009¥200

9165160816

main91651-60816¥100

9331514010

main93315-14010¥160

9411540500

main94115-40500¥110

9676124040

main96761-24040¥260

37 parts on this diagram · 9 diagrams in section
