IGNITION COIL & SPARK PLUG / GLOW PLUG

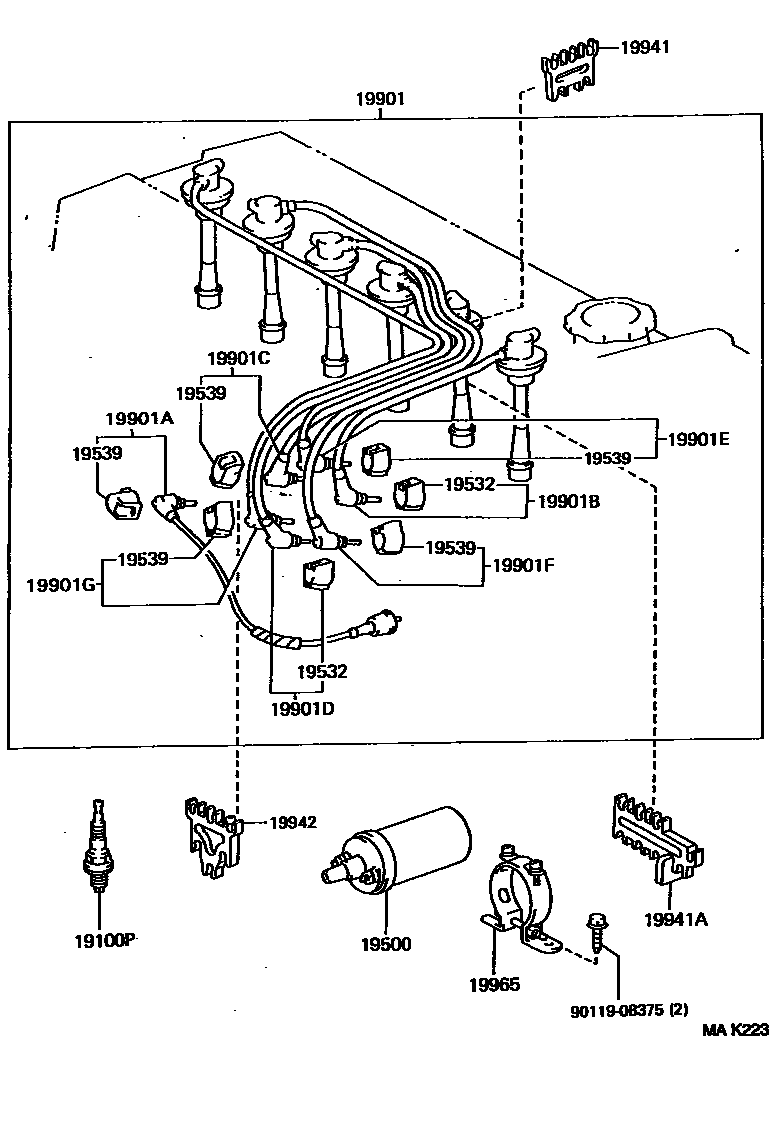

Parts diagram
19100PPLUG, SPARK
main90919-01164i199308-199508
main90919-01168i199110-199508
sub90919-01217
main90919-01169i199110-199508
main90919-01178i199110-199508
sub90919-01210
main90919-01179i199110-199508
19500COIL ASSY, IGNITION
main90919-02113i199308-199508
main90919-02197i199110-199508
19532HOLDER, RESISTIVE CODE, NO.2
main19532-46010i199311-199508
MARK"E"
main19532-46010i199110-199311
MARK "E"
main19532-46010i199110-199508
main19532-50010i199110-199311
MARK "B"
main19532-50010i199311-199508
MARK"B"
main19532-50010i199110-199409
main19539-46010i199409-199508
19539HOLDER, RESISTIVE CODE, NO.4
main19539-11010i199110-199508
main19539-16010i199110-199303
main19539-46010i199311-199508
MARK"A"
main19539-46010i199110-199311
MARK "A"
main19539-46010i199110-199508
main19539-50010i199110-199508
MARK"C"
main19539-50010i199303-199508
main19539-62010i199110-199508
main19539-62020i199308-199311
MARK "L"
main19539-62020i199311-199508
MARK"L"
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21534i199110-199304
main90919-21544i199110-199508
main90919-21545i199308-199508
main90919-21564i199304-199308
main90919-21572i199304-199508
sub90919-29125
main90919-21574i199308-199508
sub90919-29135
main90919-22262i199110-199409
main90919-22379i199409-199508
19901ACORD, COIL RESISTIVE
main90919-13333i199110-199409
main90919-13334i199110-199508
main90919-13415i199110-199508
main90919-13421i199110-199508
main90919-13424i199308-199508
main90919-13462i199409-199508
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-12967i199110-199409
sub90919-15444
main90919-15282i199308-199508
main90919-15325i199110-199508
main90919-15444i199409-199508
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-12968i199110-199409
sub90919-15445
main90919-15283i199308-199508
main90919-15326i199110-199508
main90919-15445i199409-199508
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-12969i199110-199409
sub90919-15446
main90919-15284i199308-199508
main90919-15327i199110-199508
main90919-15446i199409-199508
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-12970i199110-199409
sub90919-15447
main90919-15285i199308-199508
main90919-15328i199110-199508
main90919-15447i199409-199508
19901FCORD, SPARK PLUG RESISTIVE, NO.5
main90919-12946i199110-199508
main90919-12971i199110-199409
sub90919-15448
main90919-15286i199308-199508
main90919-15448i199409-199508
19901GCORD, SPARK PLUG RESISTIVE, NO.6
main90919-12972i199110-199409
sub90919-15449
main90919-15287i199308-199508
main90919-15329i199110-199508
main90919-15449i199409-199508
19941CLAMP, RESISTIVE CORD, NO.1
main19941-50020i199110-199508
main90929-01277i199110-199508
main90929-01298i199308-199508
19941ACLAMP(FOR RESISTIVE CORD)
main90929-01301i199308-199508
19942CLAMP, RESISTIVE CORD, NO.2
main19942-50020i199110-199508
main90929-01278i199110-199508
main90929-01300i199308-199508
19965BAND, IGNITION COIL, NO.1
main90919-03086i199308
main90919-03105i199110-199508
9011908375
main90119-08375

17 parts on this diagram · 4 diagrams in section
