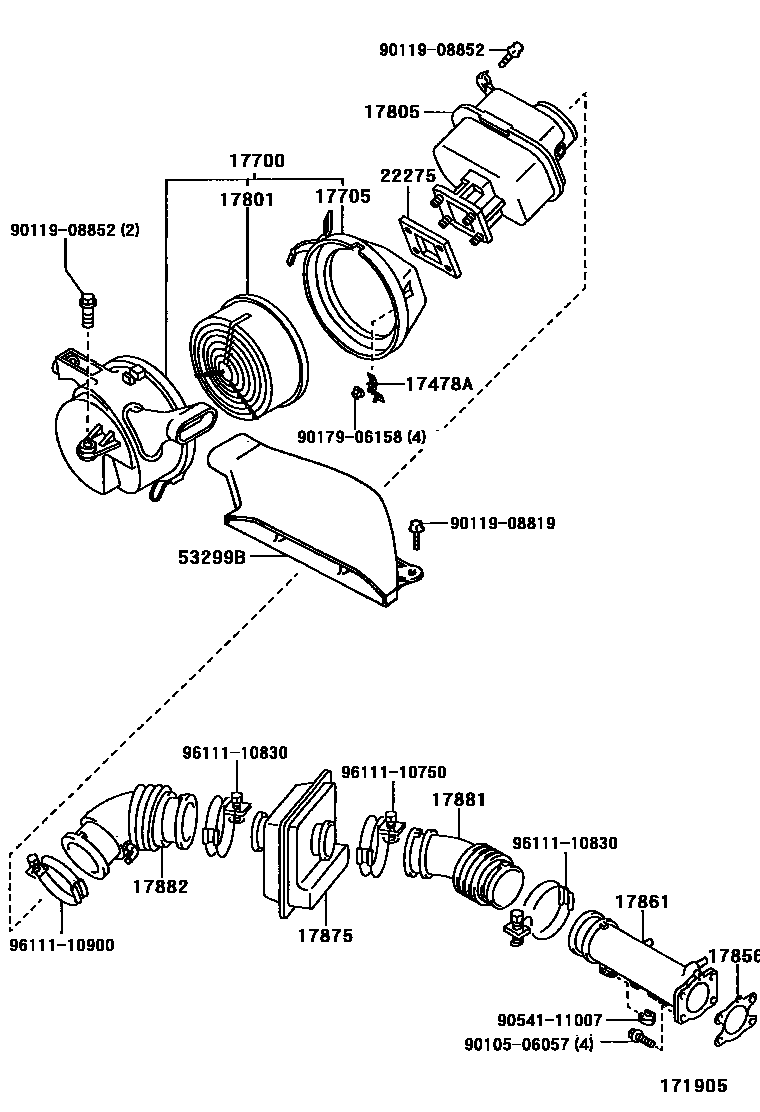

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0006 1

17478APLATE, LOCK

main17478-43010×2i1GFE..GS141199308-199508

17700CLEANER ASSY, AIR

main17700-46120i1JZGE,2JZGE..JZS141,143,145199110-199508

main17700-46130i2JZGE..JZS147,149199110-199508

main17700-50050i1UZFE..UZS14#199110-199508

main17700-54720i2LTHE..LS141199110-199308

main17700-54721i2LTE..LS141199308-199508

main17700-70080i1GFE..GS141199308-199508

17705CAP SUB-ASSY, AIR CLEANER

main17705-42130i1GFE..GS141199308-199508

main17705-46090i1JZGE,2JZGE..JZS141,143,145199110-199508

main17705-50030i2JZGE..JZS147,149199110-199508

main17705-54280i2LT#..LS141199110-199508

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46050i1JZGE,2JZGE..JZS141,143,145199110-199508

main17801-50020i2JZGE..JZS147,149199110-199508

main17801-54090i2LT#..LS141199110-199508

main17801-70020i1GFE..GS141199308-199508

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-70070i1GFE..GS141199308-199508

17856GASKET, AIR INTAKE FLANGE

main17856-70020i1GFE..GS141199308-199508

17861CONNECTOR, INTAKE AIR

main17860-46010i1JZGE..JZS141199110-199508

main17860-46030i2JZGE..JZS143,145,147,149199110-199508

sub17860-46031

main17861-70070i1GFE..GS141199308-199508

17875PIPE, INTAKE AIR CONNECTOR

main17875-46010i1JZGE..JZS141199110-199508

main17875-46040i2JZGE..JZS143,145199110-199508

main17875-46050i2JZGE..JZS147,149199110-199508

main17875-50050i1UZFE..UZS141199110-199210

main17875-50070i1UZFE..UZS14#199210-199508

main17875-70120i1GFE..GS141199308-199508

17881HOSE, AIR CLEANER, NO.1

main17881-46060i1JZGE..JZS141199110-199508

main17881-46110i2JZGE..JZS143,145199110-199508

main17881-46120i2JZGE..JZS147,149199110-199508

main17881-50010i1UZFE..UZS14#199110-199508

main17881-54490i2LTHE..LS141199110-199306

main17881-54491i2LT#..LS141199306-199508

main17881-70240i1GFE..GS141199308-199508

17882HOSE, AIR CLEANER, NO.2

main17882-46040i1JZGE..JZS141199110-199508

main17882-46090i2JZGE..JZS143,145199110-199508

main17882-46100i2JZGE..JZS147,149199110-199508

main17882-54380i2LTHE..LS141199110-199306

main17882-54381i2LT#..LS141199306-199508

main17882-70060i1GFE..GS141199308-199508

22275GASKET, AIR FLOW METER

main22275-43010i1GFE..GS141199308-199508

main22275-50020i1UZFE..UZS14#199110-199508

53299BDUCT, COOL AIR INTAKE

main53299-30220iLS141199110-199508

9010506057

main90105-06057

9011908819

main90119-08819

9011908852

main90119-08852

9017906158

main90179-06158

9054111007

main90541-11007

9611110750

main96111-10750

9611110830

main96111-10830

9611110900

main96111-10900

20 parts on this diagram · 5 diagrams in section
