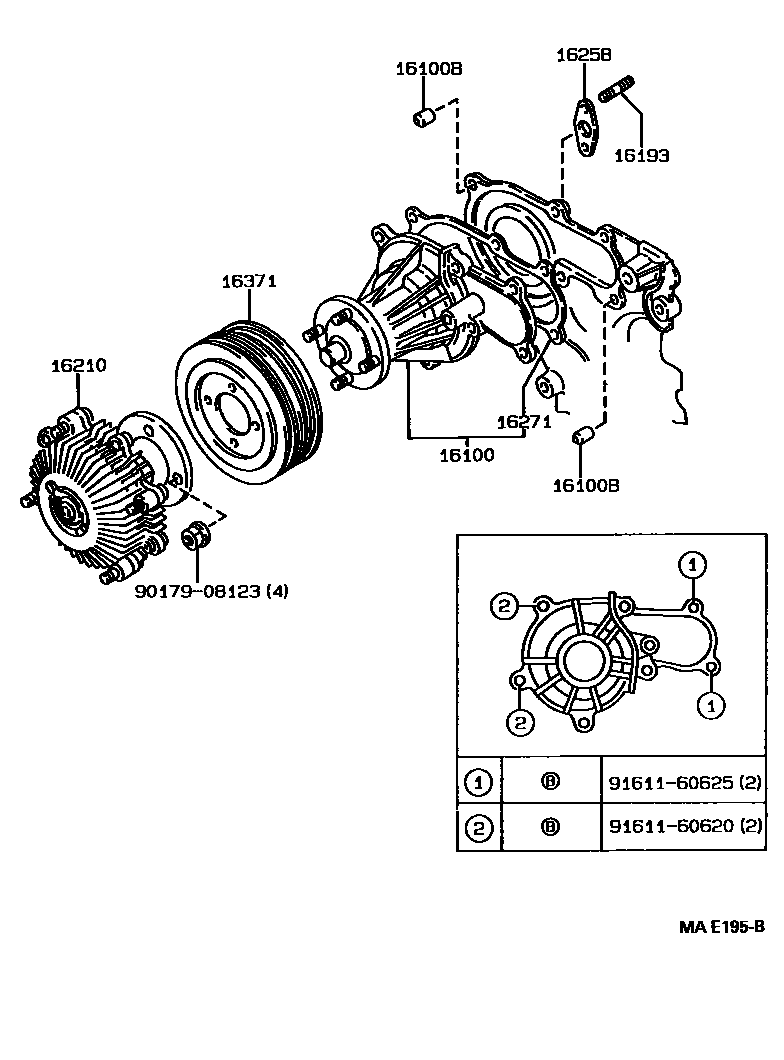

WATER PUMP

0001 1 0002 1 0003 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-49815i1JZGE..JZS141199110-199506

sub16100-49816

sub90445-12291

main16100-49816i1JZGE..JZS141199506-199508

sub16100-49837

main16100-49835i2JZGE..JZS143,145,147,149199110-199506

sub16100-49836

sub90445-12291

main16100-49836i2JZGE..JZS143,145,147,149199506-199508

sub16100-49837

main16100-50020i1UZFE..UZS14#199110-199312

sub16100-50021

main16100-50021i1UZFE..UZS14#199312-199409

sub16100-50022

main16100-50022i1UZFE..UZS14#199409-199508

sub16100-50023

main16100-59155i2LT#..LS141199110-199508

sub16100-59255

main16100-79116i1GFE..GS141199308-199508

sub16100-79117

sub90119-08B68

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1GFE..GS141199308-199508

main90253-11021i1UZFE..UZS14#199110-199308

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1GFE..GS141199308-199508

main16193-46030i1JZGE..JZS141199110-199508

main16193-46040i2JZGE..JZS143,145,147,149199110-199508

16210COUPLING ASSY, FLUID

main16210-46040i1JZGE,2JZGE..JZS14#199110-199508

sub16210-46041

main16210-54130i2LT#..LS141199110-199508

main16210-70040i1GFE..GS141199308-199508

16258GASKET(FOR HEATER RETURN)

main16258-70020i1GFE..GS141199308-199508

16271GASKET, WATER PUMP

main16124-70041i1GFE..GS141199308-199508

main16271-54020i2LT#..LS141199110-199508

sub16271-54030

16371PULLEY, FAN

main16371-46020i1JZGE,2JZGE..JZS14#199110-199508

main16371-54030i2LT#..LS141199110-199508

main16371-70060i1GFE..GS141199308-199508

sub16371-70061

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

10 parts on this diagram · 4 diagrams in section
