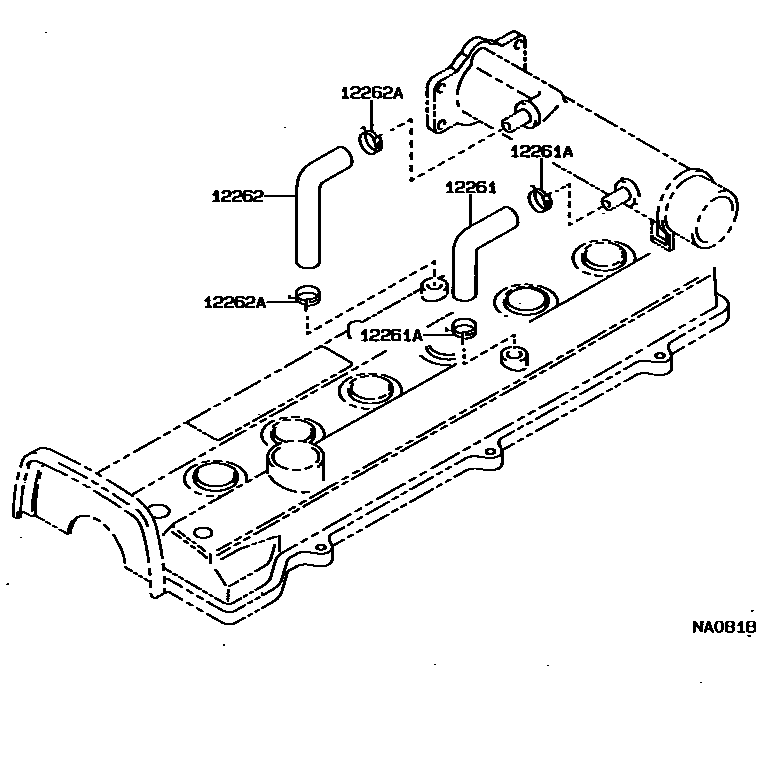

VENTILATION HOSE

0001 1 0002 1 0003 1 0005 1

12261HOSE, VENTILATION

main12261-46010i1JZGE,2JZGE..JZS14#199110-199508

main12261-50020i1UZFE..UZS14#199110-199409

sub12261-50021

main12261-50021i1UZFE..UZS14#199409-199508

main12261-54090i2LT#..LS141199110-199508

main12261-70040i1GFE..GS141199308-199508

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i1JZGE,2JZGE..JZS14#199110-199508

main90467-15021i1UZFE..UZS14#199110-199508

main90467-17002i1GFE..GS141199308-199508

sub90467-17011

main90467-18003i2LT#..LS141199110-199508

12262HOSE, VENTILATION, NO.2

main12262-46010i1JZGE,2JZGE..JZS141,147,149199110-199508

main12262-46030i2JZGE..JZS143,145199110-199508

main12262-50010i1UZFE..UZS14#199110-199409

main12262-50011i1UZFE..UZS14#199409-199508

main12262-54031i2LT#..LS141199110-199508

main12262-70020i1GFE..GS141199308-199508

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-15021i1UZFE..UZS14#199409-199508

THROTTLE BODY SIDE

main90467-17002i1GFE..GS141199308-199508

sub90467-17011

main90467-18003i1JZGE,2JZGE..JZS14#199110-199508

main90467-22009i1UZFE..UZS14#199110-199409

main96134-41500i1UZFE..UZS14#199409-199508

ELBOW SIDE

sub96134-51500

4 parts on this diagram · 4 diagrams in section
