SHORT BLOCK ASSEMBLY

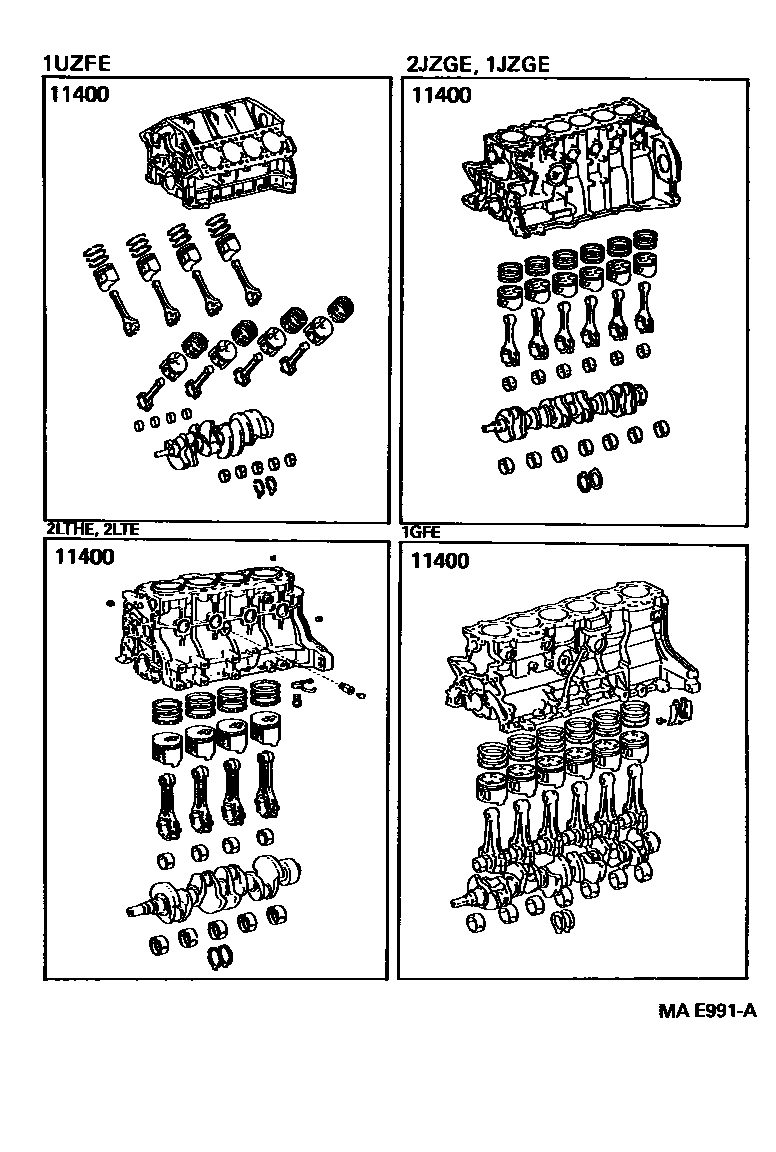

Parts diagram

11400BLOCK ASSY, SHORT

main11400-49055i1JZGE..JZS141199110-199505

main11400-49056i1JZGE..JZS141199505-199508

main11400-49065i2JZGE..JZS143,145,147,149199110-199505

main11400-49066i2JZGE..JZS143,145,147,149199505-199508

main11400-50010i1UZFE..UZS141,147199110-199407

main11400-50011i1UZFE..UZS141,147199407-199508

main11400-50040i1UZFE..UZS143,145199210-199407

main11400-50041i1UZFE..UZS143,145199407-199508

main11400-54140i2LTHE..LS141199110-199308

main11400-54151i2LTE..LS141199308-199508

main11400-70090i1GFE..GS141199308-199508

1 parts on this diagram · 1 diagram in section
