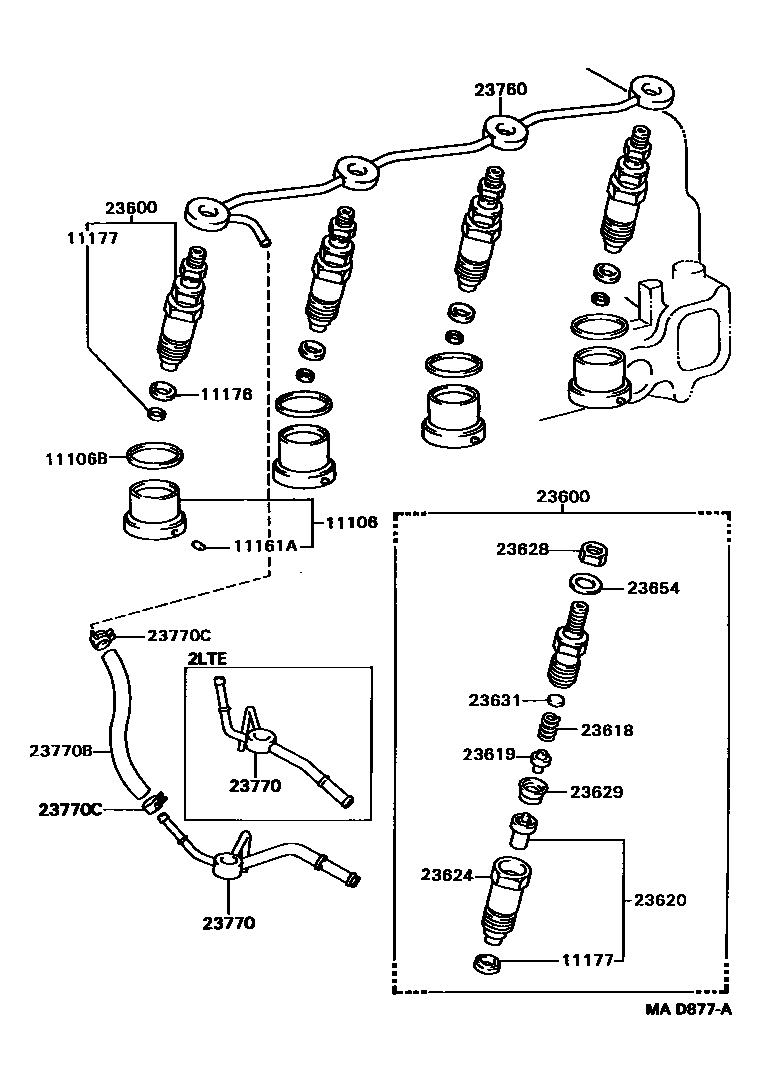

INJECTION NOZZLE

0001 1 0002 1 0003 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-54100i2L..LS136199110-199409

main11106-54110i2LTE..LS130,131199308

main11106-54140i2LTHE..LS130,131199110-199308

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-54030i2LTE,2L..LS13#199110

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i2LTE,2L..LS13#199110

main90253-05001i2LTHE..LS130,131199110-199308

11176SEAT, INJECTION NOZZLE

main11176-64010i2LT#,2L..LS13#199110

11177GASKET, INJECTION NOZZLE SEAT

main11177-54020i2L#..LS13#199404

main11177-64010i2LT#,2L..LS13#199110-199404

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59105i2L..LS136199110-199409

main23600-59115i2LTE..LS130,131199308-199512

main23600-59155i2LTHE..LS130,131199110-199308

main23600-59235i2LTE..LS130199512

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54080i2LTHE,2L..LS13#199110-199409

main23618-54090i2LTE..LS130199512

main23618-54730i2LTE..LS130,131199308-199512

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i2LT#,2L..LS13#199110

23620NOZZLE ASSY

main23620-59045i2L..LS136199110-199409

main23620-59055i2LTE..LS130,131199308

main23620-59065i2LTHE..LS130,131199110-199308

23624NUT, NOZZLE RETAINING

main23624-55050i2LTE..LS130199512

main23624-64010i2LT#..LS130,131199110-199512

sub23624-55010

main23624-64040i2L..LS136199110-199409

sub23624-64041

23628NUT(FOR RING PACKING SETTING)

main23628-64010i2LT#,2L..LS13#199110

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-54080i2LTE,2L..LS13#199110

main23629-64010i2LTHE..LS130,131199110-199308

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i2LT#,2L..LS13#199110

main23631-64012i2LT#,2L..LS13#199110

main23631-64014i2LT#,2L..LS13#199110

main23631-64016i2LT#,2L..LS13#199110

main23631-64018i2LT#,2L..LS13#199110

main23632-64010i2LT#,2L..LS13#199110

main23632-64012i2LT#,2L..LS13#199110

main23632-64014i2LT#,2L..LS13#199110

main23632-64016i2LT#,2L..LS13#199110

main23632-64018i2LT#,2L..LS13#199110

main23633-64010i2LT#,2L..LS13#199110

main23633-64012i2LT#,2L..LS13#199110

main23633-64014i2LT#,2L..LS13#199110

main23633-64016i2LT#,2L..LS13#199110

main23633-64018i2LT#,2L..LS13#199110

main23634-64010i2LT#,2L..LS13#199110

main23634-64012i2LT#,2L..LS13#199110

main23634-64014i2LT#,2L..LS13#199110

main23634-64016i2LT#,2L..LS13#199110

main23634-64018i2LT#,2L..LS13#199110

main23635-64010i2LT#,2L..LS13#199110

main23635-64012i2LT#,2L..LS13#199110

23654WASHER(FOR RING PACKING)

main23654-64010i2LT#,2L..LS13#199110

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-54030i2LT#,2L..LS13#199110

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23764-54070i2LT#..LS130,131199110-199401

main23764-54071i2LTE..LS130,131199401

main23764-54080i2L..LS136199110-199409

23770BHOSE, FUEL

main95333-04020i2LT#,2L..LS13#199110

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-30400i2LT#,2L..LS13#199110-199502

sub96132-51000

main96133-41000i2LTE..LS13#199502-199512

sub96132-51000

18 parts on this diagram · 3 diagrams in section
