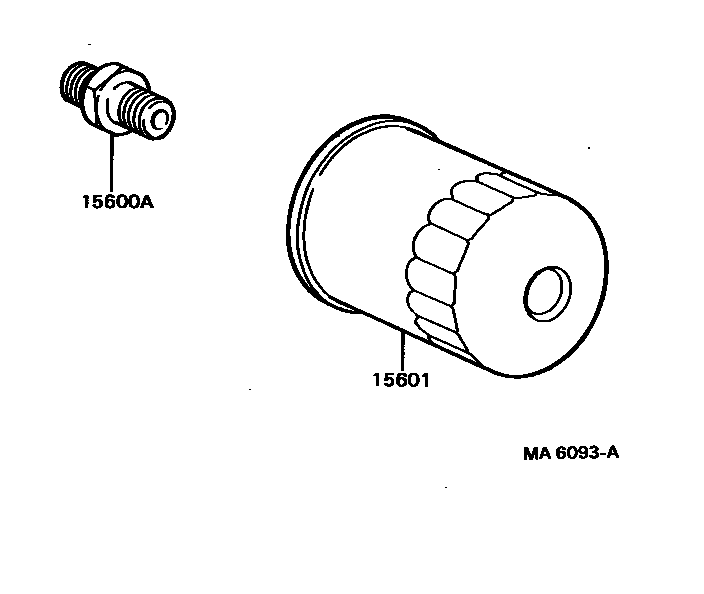

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15600AUNION(FOR OIL FILTER)

main15116-54021i2LT#..LS130,131199110

main90404-19002i1G#..GS13#199110

main90404-19011i2L..LS136199110-199409

main90404-19019i1JZGE..JZS130199609-199904

15601FILTER SUB-ASSY, OIL

main15600-41010i2L..LS136199110-199409

sub90915-40002

main15601-33021i3YPE..YS130199112-199512

main90915-03002i1JZGE,2JZGE..JZS13#199110-199204

sub90915-20001

main90915-03006i2LTHE..LS130,131199110-199308

sub90915-30002

main90915-20001i1JZGE,2JZGE..JZS13#199204-199904

sub90915-20003

main90915-30002i2LTE..LS130,131199308

2 parts on this diagram · 6 diagrams in section
