SHORT BLOCK ASSEMBLY

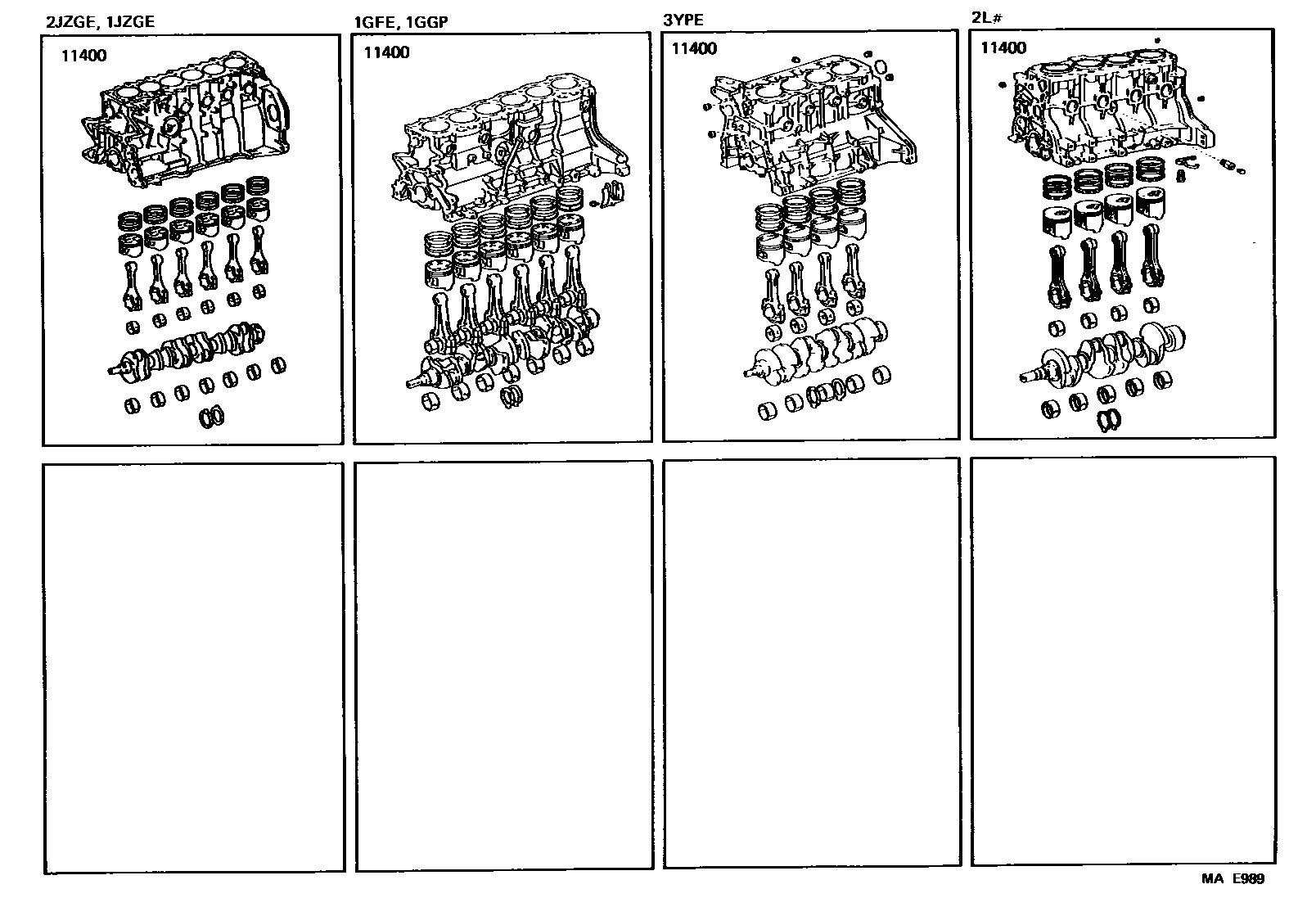

Parts diagram
11400BLOCK ASSY, SHORT
main11400-49055i199110-199505
sub11400-49056
sub90402-16015
sub90430-16012
main11400-49056i199505-199604
sub11400-49057
main11400-49057i199604-199609
sub11400-49058
main11400-49065i199110-199505
sub11400-49066
sub90402-16015
sub90430-16012
main11400-49066i199505-199512
sub11400-49067
main11400-49115i199609
sub11400-49116
main11400-54100i199110-199409
main11400-54140i199110-199308
main11400-54151i199308
main11400-70090i199110-199805
sub11400-70091
main11400-70091i199805
main11400-70110i199112-199412
main11400-70111i199412-199512
sub11400-70112
main11400-73080i199112-199308
main11400-73090i199308-199512
sub11400-73091
sub11444-75020

1 parts on this diagram · 1 diagram in section
