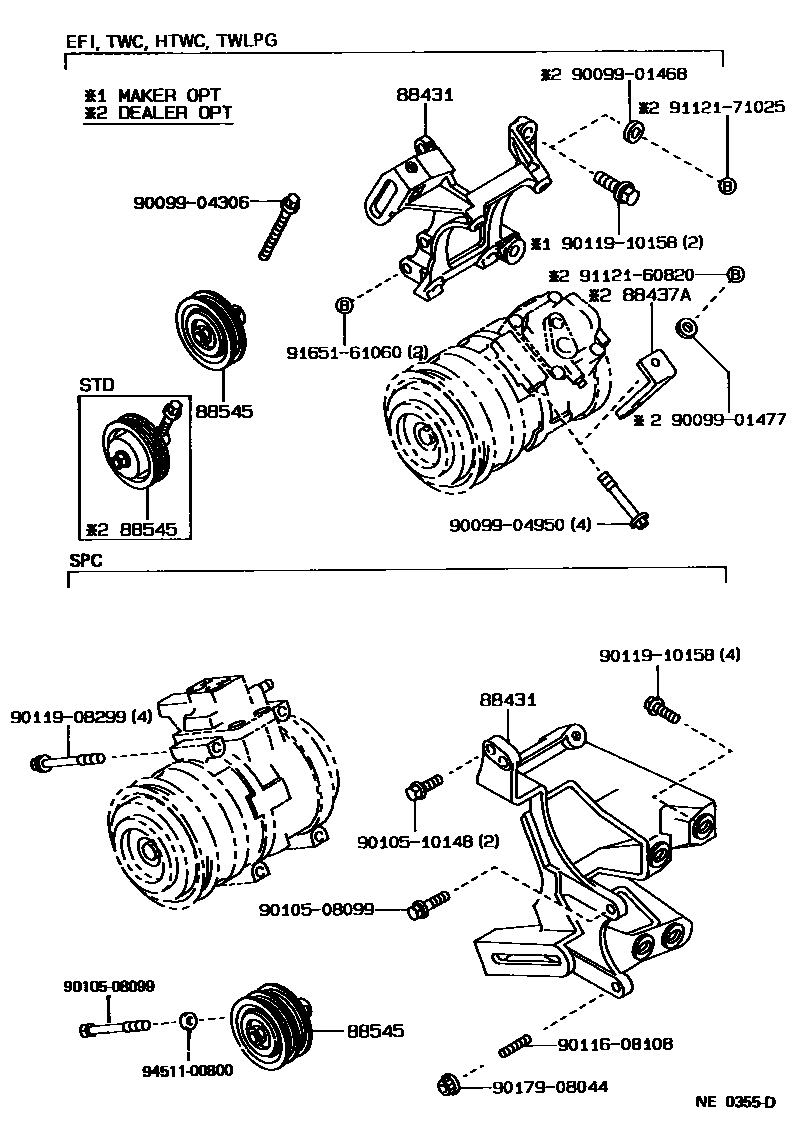

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22210iGS130,136..STD..EFI198709-198908

main88431-22270iLS13#198908-199110

main88431-22290iLS130,136..STD198908-199110

main88431-24030iMS130198709-198908

main88431-24041iGS130..TWLPG;GS130,136..STD198908-199110

main88431-24050iGS13#..(DLX,SAL,SALEX,SDX,SPE,SSL)..EFI198709-198908

main88431-24060iGS13#..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC)198709-199110

main88431-26170iLS136..DLX198709-198908

main88431-26180iLS136..STD198709-198908

main88431-30490iYS130198709-199110

main88431-30550iMS135,137198709-199110

main88431-30570iGS130,131..SPC198709-199110

main88431-30600iUZS131198908-199110

main88431-30610iLS130,131..(HT,SED)..(SALEX,SDX,SPE,SSL)198910-199110

main88431-30620iGS130..SDX..TWLPG198911-199110

88437AATTACHMENT, COMPRESSOR

main88437-22050iLS130..DLX198709-199110

main88437-22060iGS130,136..STD..EFI198709-198908

main88437-24020iGS13#..(DLX,SAL,SALEX,SDX,SPE,SSL)..EFI198709-198908

88545PULLEY ASSY, IDLE

main88440-17010iGS13#,MS135,137..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,TWC)198709-199110

main88440-24010iGS130..TWLPG;GS130,136..STD198908-199110

main88440-28030iGS130,136..STD..EFI198709-198908

main88440-30250iMS130198709-198908

sub88440-28050

main88440-30280iGS130,131..SPC198709-199110

main88440-35010iLS130..STD198709-199110

main88440-35020iYS130198709-199110

9009901468

main90099-01468

9009901477

main90099-01477

9009904306

main90099-04306

9009904950

main90099-04950

9010508099

main90105-08099

9010510148

main90105-10148

9011608108

main90116-08108

9011908299

main90119-08299

9011910158

main90119-10158

9017908044

main90179-08044

9112160820

main91121-60820

9112171025

main91121-71025

9165161060

main91651-61060

9451100800

main94511-00800

17 parts on this diagram · 5 diagrams in section
