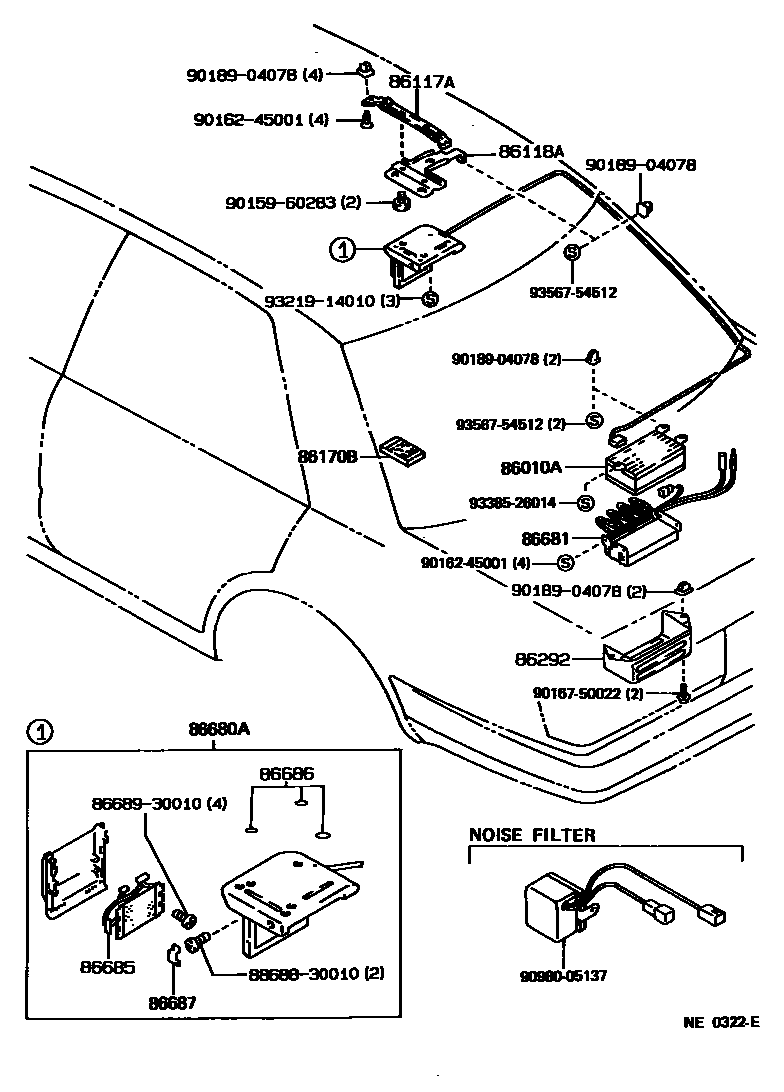

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1 0004 1 0005 1 0007 1

86010ATUNER ASSY, TELEVISION

main86010-30020iGS131,MS135,137..SED198709-198908

main86010-30030iGS131,JZS131,MS13#,UZS131..SED..(ROY,ROYG)198809-199110

main86010-30040iMS137..WIB198809-199110

main86010-91701iGS130,JZS130..ROY198908-199110

86117ABRACKET, TELEVISION DISPLAY, A

main86117-30010iGS131,JZS131,MS135,137,UZS131..SED..(ROY,ROYG)198709-199110

main86117-30020iMS137..WIB198809-199110

main86117-91701iGS130,JZS130..ROY198908-199110

86118ABRACKET, TELEVISION DISPLAY, B

main86118-30010iGS131,JZS131,MS135,137,UZS131..SED..(ROY,ROYG)198709-199110

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-30250iGS130,131,JZS13#,MS13#,UZS131..ROY,ROYG198709-199110

86292COVER, TELEVISION SET

main86292-30010iGS131..SED..SPC198709-198908

main86292-30020iGS131,MS135,137..SED..TWC198809-199110

main86292-30030iGS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)198809-199110

86680ADISPLAY ASSY, TELEVISION

main86680-30010-04iGS131,MS135,137..SED198709-198908

BLUE,TRIM8#

main86680-30010-06iGS131,MS135,137..SED198709-198908

SABLE,TRIM3#,4#

main86680-30020-04iGS131,JZS131,MS13#,UZS131..SED..(ROY,ROYG)198809-199110

BLUE,TRIM8#

main86680-30020-06iGS131,MS135,137..SED..TWC198809-199110

SABLE,TRIM3#,4#

main86680-30030-04iMS137..WIB198809-199110

BLUE,TRIM8#

main86680-30030-06iGS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)198809-199110

SABLE,TRIM3#,4#

main86680-91701-04iGS130,JZS130..ROY198908-199110

BLUE,TRIM8#

sub86680-91701

main86680-91701-06iGS130,JZS130..ROY198908-199110

SABLE,TRIM3#,4#

sub86680-91701

86681DIVIDER, ANTENNA

main86681-30010iMS137..4FC198809-199110

86685LIGHT, TELEVISION

main86685-30010iMS137;GS131,MS135..SED198709-199110

86686PLUG, TELEVISION NO.1

main86686-30010-04iGS131,JZS131,MS13#,UZS131..ROY,ROYG198709-199110

BLUE,TRIM8#

main86686-30010-06iGS131,JZS131,MS13#,UZS131..ROY,ROYG198709-199110

SABLE,TRIM3#,4#

86687PLUG, TELEVISION NO.2

main86687-30010-04iGS131,JZS131,MS13#,UZS131..ROY,ROYG198709-199110

BLUE,TRIM8#

main86687-30010-06iGS131,JZS131,MS13#,UZS131..ROY,ROYG198709-199110

SABLE,TRIM3#,4#

8668930010

main86689-30010

8868830010BRACKET, COOLER DIAPHRAGM

main88688-30010

9015960283

main90159-60283

9016245001

main90162-45001

9016750022

main90167-50022

9018904078

main90189-04078

9098005137

main90980-05137

9321914010

main93219-14010

9338526014

main93385-26014

9356754512

main93567-54512

20 parts on this diagram · 5 diagrams in section
