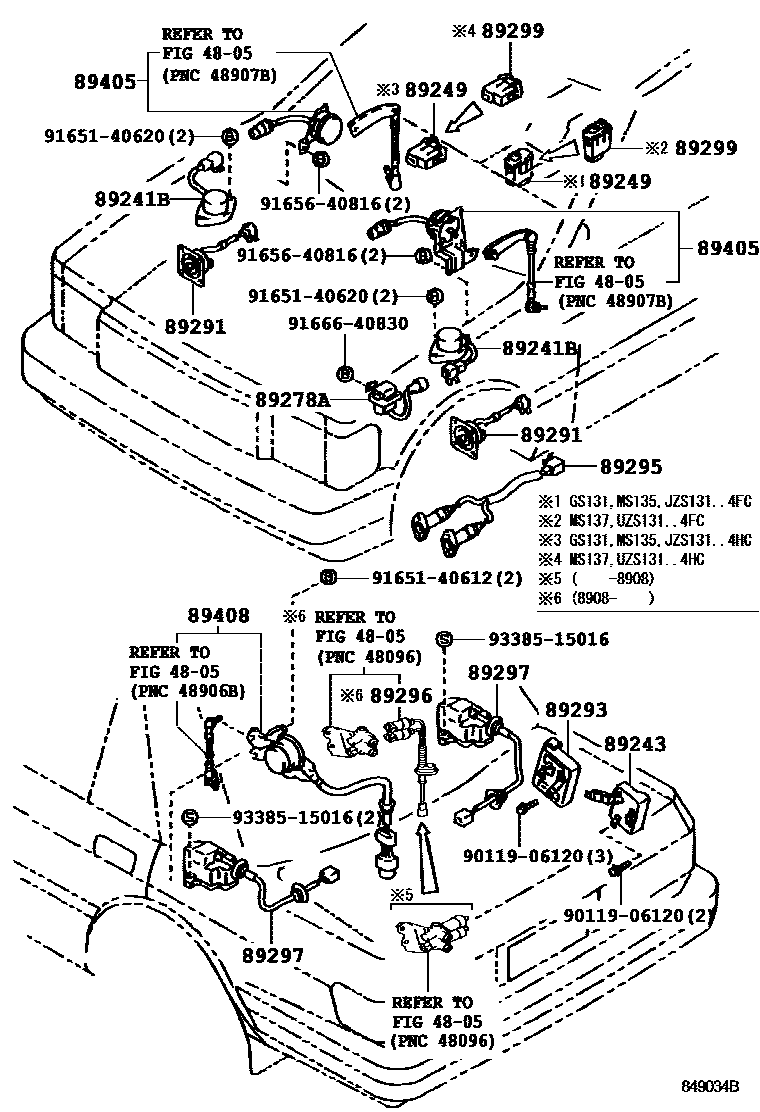

ELECTRONIC MODULATED SUSPENSION

4805

89241BACTUATOR, ABSORBER CONTROL

main89241-30010×2iGS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG,SALEX198709-199110

89243COMPUTER, ABSORBER CONTROL

main89243-30020iGS131..ROY..SPC;JZS131,MS135..ROY,SALEX198709-199110

89249SWITCH, ABSORBER CONTROL

main89249-30020iMS135..4FC;GS131..4FC..ROY..SPC198709-198908

main89249-30030iGS131,JZS131,MS135..4HC..ROY198709-199110

main89249-30040iMS135..4FC;GS131..4FC..ROY..SPC198908-198912

main89249-30041iJZS131,MS135..4FC;GS131..4FC..ROY..SPC198912-199110

89278ARELAY, HEIGHT CONTROL

main89278-30020iMS137,UZS131198709-199004

main89278-30021iMS137,UZS131199004-199110

89291ACTUATOR, SUSPENSION CONTROL, FRONT

main89291-30010×2iMS137,UZS131198709-199107

main89291-30011×2iMS137,UZS131199107-199110

89293COMPUTER, SUSPENSION CONTROL

main89293-30010iMS137198709-198903

main89293-30011iMS137198903-198908

main89293-30013iMS137,UZS131199005-199012

main89293-30022iMS137,UZS131198908-199005

sub89293-30014

main89293-30030iMS137,UZS131199012-199110

89295SOLENOID, SUSPENSION CONTROL, FRONT

main89295-30010iMS137198709-198908

main89295-30011iMS137,UZS131198908-199110

89296SOLENOID, SUSPENSION CONTROL, REAR

main89296-30020iMS137,UZS131198908-199110

89297ACTUATOR, SUSPENSION CONTROL, REAR

main89297-30011iMS137,UZS131199107-199110

RH,AISIN

main89297-30020iMS137198709-198908

main89297-30021iMS137,UZS131198908-199110

RH,DENSO

main89298-30010iMS137,UZS131198709-199107

main89298-30011iMS137,UZS131199107-199110

LH,AISIN

main89298-30021iMS137,UZS131199103-199110

LH,DENSO

89299SWITCH, SUSPENSION CONTROL

main89299-30010iMS137..4FC198709-198908

main89299-30020iMS137,UZS131..4HC198709-199110

main89299-30030iMS137,UZS131..4FC198908-198912

main89299-30031iMS137,UZS131..4FC198912-199110

89405SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89405-30021iMS137198709-198902

main89405-30022iMS137,UZS131198902-199110

main89406-30021iMS137198709-198902

main89406-30022iMS137,UZS131198902-199110

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89408-30010iMS137,UZS131198709-199110

9011906120

main90119-06120

9165140612

main91651-40612

9165140620

main91651-40620

9165640816

main91656-40816

9166640830

main91666-40830

9338515016

main93385-15016

19 parts on this diagram · 1 diagram in section
