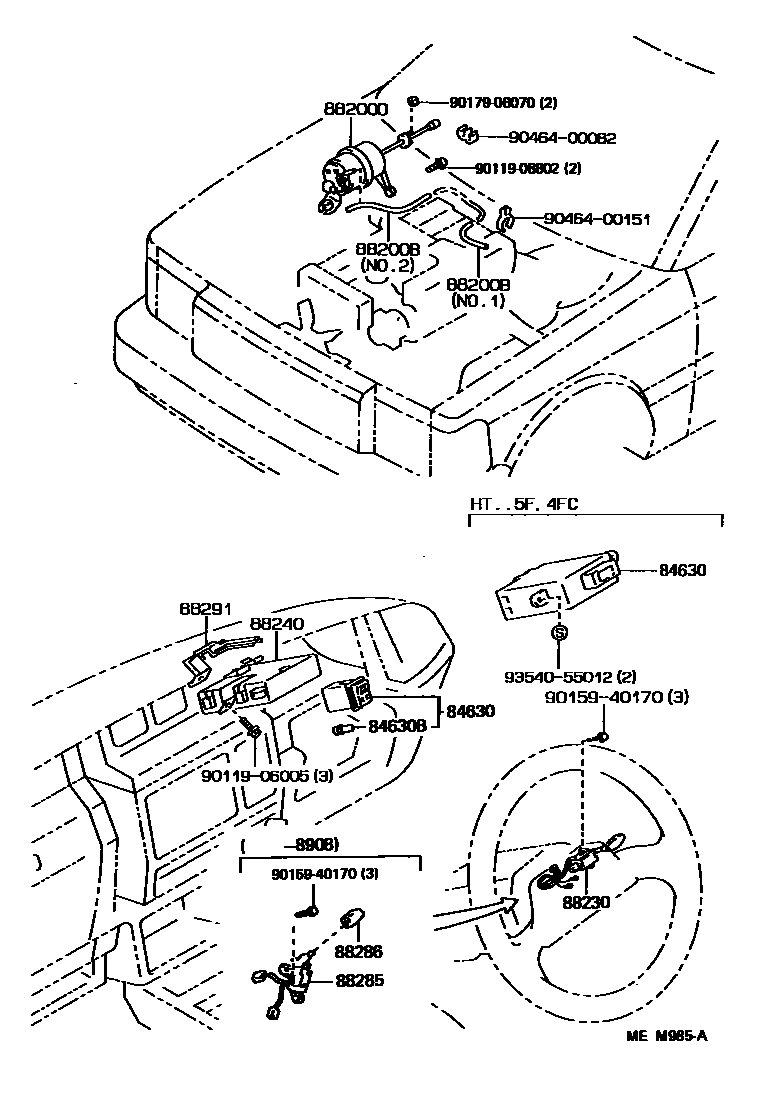

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-30040iGS131,LS130,MS135,137..HT..(4FC,5F)..(ROY,ROYG,SALEX)198709-198908

main84630-30041iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)..(ROY,ROYG,SALEX)198908-199110

main84630-30050iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)198709-198908

sub84630-30070

main84630-30051iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SALEX)198908-199110

sub84630-30070

84630BBULB(FOR CRUISE CONTROL SWITCH)

main84999-10200iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)198709-198908

88200BHOSE, CRUISE CONTROL VACUUM

main88283-30050iGS130,131..ROY..SPC198709-198908

NO.3

main88283-30070iLS130,131..SALEX198709-199110

main88283-30090iJZS13#,UZS131..ROY,ROYG,SALEX198908-199110

main90999-92002iGS131..TWC198709-199110

main90999-92003iGS130,131..(SAL,SALEX)..EFI198709-198908

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-30130iGS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX198709-198903

main88200-30131iGS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX198903-198908

main88200-30150iUZS131198908-199110

main88200-30160iGS130,131,LS130,131,MS13#..ROY,ROYG,SAL,SALEX198908-199110

main88200-30200iJZS13#..ROY,SALEX199008-199110

sub88200-30210

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-30030iMS135..SALEX198908-199110

main88230-30050iMS137,UZS131..4FC198908-199110

88240COMPUTER ASSY, CRUISE CONTROL

main88240-30160iGS130,131,MS135,137..(ROY,ROYG,SAL,SALEX)..(EFI,HTWC,TWC)198710-199110

main88240-30170iLS130,131..SALEX198710-199110

main88240-30180iGS130,131..ROY..SPC198709-199110

main88240-30200iUZS131198908-199110

main88240-30210iJZS13#..ROY,SALEX199008-199110

88285SWITCH, CRUISE CONTROL

main88285-30020iGS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX198709-198908

88286KNOB, SPEED CONTROL SWITCH

main88286-30030iGS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX198709-198908

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-30070iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX198709-199110

9011906005

main90119-06005

9011908802

main90119-08802

9015940170

main90159-40170

9017906070

main90179-06070

9046400082

main90464-00082

9046400151

main90464-00151

9354055012

main93540-55012

16 parts on this diagram · 6 diagrams in section
