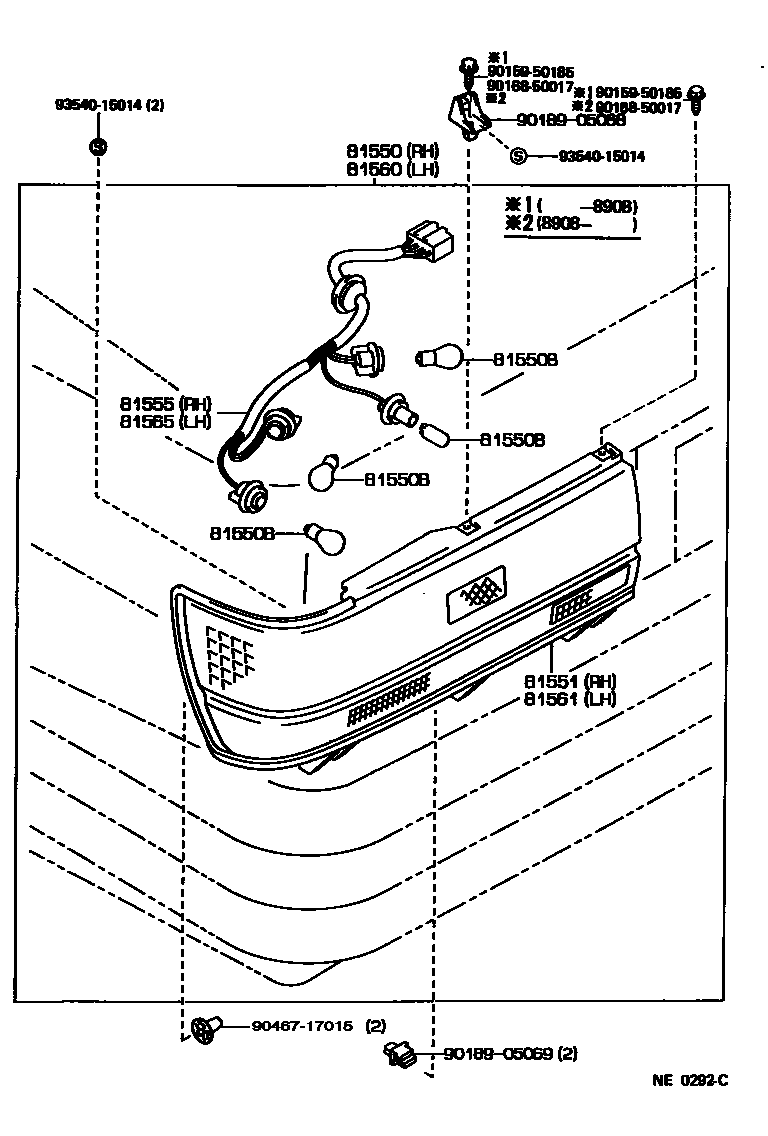

REAR COMBINATION LAMP

0001 1 0002 1LISENCE PLATE LAMP-HI TYPE 0003 1 0004 1 0005 1 0006 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-30560iGS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX)¥36,000198709-198908

main81550-30560iMS130..SDX¥36,000198809-198908

main81550-30561iGS130..SDX..TWLPG¥36,200198908-199110

main81550-30570iGS130,LS130,MS130,YS130..SED..(DLX,SDX)¥36,200198709-199009

sub81550-30571¥36,200

main81550-30571iGS130,LS130,YS130..SED..(DLX,SDX)¥36,200199009-199110

main81550-30580iGS130,LS130,YS130..STD¥36,200198709-199009

sub81550-30581¥36,200

main81550-30581iGS130,LS130,YS130..STD¥36,200199009-199110

main81550-30590iGS130,131,LS130..HT¥36,400198709-198901

sub81550-30592¥36,400

main81550-30591iGS131,LS131..HT..NOB¥36,200198908-199110

main81550-30592iGS130,131,LS130..HT¥36,400198901-198908

main81550-30600iMS135,137..WIB¥35,400198709-198802

sub81550-30601¥35,300

main81550-30601iMS135,137..WIB¥35,300198802-198901

sub81550-30603¥35,300

main81550-30602iGS131,JZS131,MS13#,UZS131..WIB¥36,200198908-199110

main81550-30603iMS135,137..WIB¥35,300198901-198908

main81550-91705iGS130,LS130..WG¥18,700198709-198908

main81550-91707iGS130,JZS130,LS130..WG¥18,700198908-199110

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039iGS130,LS130..(HT,WG)..SALEX;GS131,136,JZS130,LS131,136..(HT,V,WG)..NOB;GS130,LS130,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD¥200198709-199110

sub90981-11059¥200

main99132-11210iGS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)¥170198709-199110

main99132-21210iGS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130¥190198709-199110

81551LENS, REAR COMBINATION LAMP, RH

main81551-30560iGS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX)¥33,100198709-198908

main81551-30560iMS130..SDX¥33,100198809-198908

main81551-30561iGS131,JZS131,LS131,MS13#,UZS131..SED¥33,200198908-199110

main81551-30570iGS130,LS130,MS130,YS130..SED..(DLX,SDX)¥33,200198709-199009

sub81551-30571¥33,200

main81551-30571iGS130,LS130,YS130..SED..(DLX,SDX)¥33,200199009-199110

main81551-30580iGS130,LS130,YS130..STD¥33,200198709-199009

sub81551-30581¥33,200

main81551-30581iGS130,LS130,YS130..STD¥33,200199009-199110

main81551-30590iGS130,131,LS130..HT¥30,000198709-198901

sub81551-30592¥30,000

main81551-30591iGS131,LS131..HT..NOB¥33,200198908-199110

main81551-30592iGS130,131,LS130..HT¥30,000198901-198908

main81551-30600iMS135,137..WIB¥30,000198709-198802

sub81551-30601¥30,000

main81551-30601iMS135,137..WIB¥30,000198802-198901

sub81551-30603¥30,000

main81551-30602iGS131,JZS131,MS13#,UZS131..WIB¥33,200198908-199110

main81551-30603iMS135,137..WIB¥30,000198901-198908

main81551-91705iGS130,LS130..WG¥14,400198709-198908

main81551-91706iGS136,LS136¥14,100198709-199110

main81551-91707iGS130,JZS130,LS130..WG¥14,000198908-199110

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30560iMS130..SDX¥3,820198809-198908

main81555-30560iGS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX)¥3,820198709-198908

main81555-30561iGS131,JZS131,LS131,MS13#,UZS131..SED¥3,830198908-199110

main81555-30570iGS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)¥3,830198709-199110

main81555-30590iGS130,131,LS130,131..HT..NOB¥4,500198709-199110

main81555-30600iMS135,137..WIB¥3,820198709-198802

sub81555-30601¥3,820

main81555-30601iMS135,137..WIB¥3,820198802-198908

main81555-30602iGS131,JZS131,MS13#,UZS131..WIB¥3,830198908-199110

main81555-91705iGS130,136,JZS130,LS130,136..V,WG¥3,140198709-199110

81560LAMP ASSY, REAR COMBINATION, LH

main81560-30530iMS130..SDX¥36,000198809-198908

main81560-30530iGS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX)¥36,000198709-198908

main81560-30531iGS130..SDX..TWLPG¥36,200198908-199110

main81560-30540iGS130,LS130,MS130,YS130..SED..(DLX,SDX)¥36,200198709-199009

sub81560-30541¥36,200

main81560-30541iGS130,LS130,YS130..SED..(DLX,SDX)¥36,200199009-199110

main81560-30550iGS130,LS130,YS130..STD¥36,200198709-199009

sub81560-30551¥36,200

main81560-30551iGS130,LS130,YS130..STD¥36,200199009-199110

main81560-30560iGS130,131,LS130..HT¥36,400198709-198901

sub81560-30562¥36,400

main81560-30561iGS131,LS131..HT..NOB¥36,200198908-199110

main81560-30562iGS130,131,LS130..HT¥36,400198901-198908

main81560-30570iMS135,137..WIB¥35,400198709-198802

sub81560-30571¥35,300

main81560-30571iMS135,137..WIB¥35,300198802-198901

sub81560-30573¥35,300

main81560-30572iGS131,JZS131,MS13#,UZS131..WIB¥36,200198908-199110

main81560-30573iMS135,137..WIB¥35,300198901-198908

main81560-91705iGS130,LS130..WG¥18,700198709-198908

main81560-91707iGS130,JZS130,LS130..WG¥18,700198908-199110

81561LENS, REAR COMBINATION LAMP, LH

main81561-30530iMS130..SDX¥33,100198809-198908

main81561-30530iGS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX)¥33,100198709-198908

main81561-30531iGS131,JZS131,LS131,MS13#,UZS131..SED¥33,200198908-199110

main81561-30540iGS130,LS130,MS130,YS130..SED..(DLX,SDX)¥33,200198709-199009

sub81561-30541¥33,200

main81561-30541iGS130,LS130,YS130..SED..(DLX,SDX)¥33,200199009-199110

main81561-30550iGS130,LS130,YS130..STD¥33,200198709-199009

sub81561-30551¥33,200

main81561-30551iGS130,LS130,YS130..STD¥33,200199009-199110

main81561-30560iGS130,131,LS130..HT¥30,000198709-198901

sub81561-30562¥30,000

main81561-30561iGS131,LS131..HT..NOB¥33,200198908-199110

main81561-30562iGS130,131,LS130..HT¥30,000198901-198908

main81561-30570iMS135,137..WIB¥30,000198709-198802

sub81561-30571¥30,000

main81561-30571iMS135,137..WIB¥30,000198802-198901

sub81561-30573¥30,000

main81561-30572iGS131,JZS131,MS13#,UZS131..WIB¥33,200198908-199110

main81561-30573iMS135,137..WIB¥30,000198901-198908

main81561-91705iGS130,LS130..WG¥14,400198709-198908

main81561-91706iGS136,LS136¥14,100198709-199110

main81561-91707iGS130,JZS130,LS130..WG¥14,000198908-199110

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-30560iGS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX)¥3,820198709-198908

main81555-30560iMS130..SDX¥3,820198809-198908

main81555-30561iGS131,JZS131,LS131,MS13#,UZS131..SED¥3,830198908-199110

main81555-30570iGS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)¥3,830198709-199110

main81555-30590iGS130,131,LS130,131..HT..NOB¥4,500198709-199110

main81555-30600iMS135,137..WIB¥3,820198709-198802

sub81555-30601¥3,820

main81555-30601iMS135,137..WIB¥3,820198802-198908

main81555-30602iGS131,JZS131,MS13#,UZS131..WIB¥3,830198908-199110

main81555-91705iGS130,136,JZS130,LS130,136..V,WG¥3,140198709-199110

9015950185

main90159-50185¥130

9016850017

main90168-50017¥120

9018905068

main90189-05068¥130

9018905069

main90189-05069¥130

9046717015

main90467-17015¥520

9354015014

main93540-15014¥110

13 parts on this diagram · 6 diagrams in section
