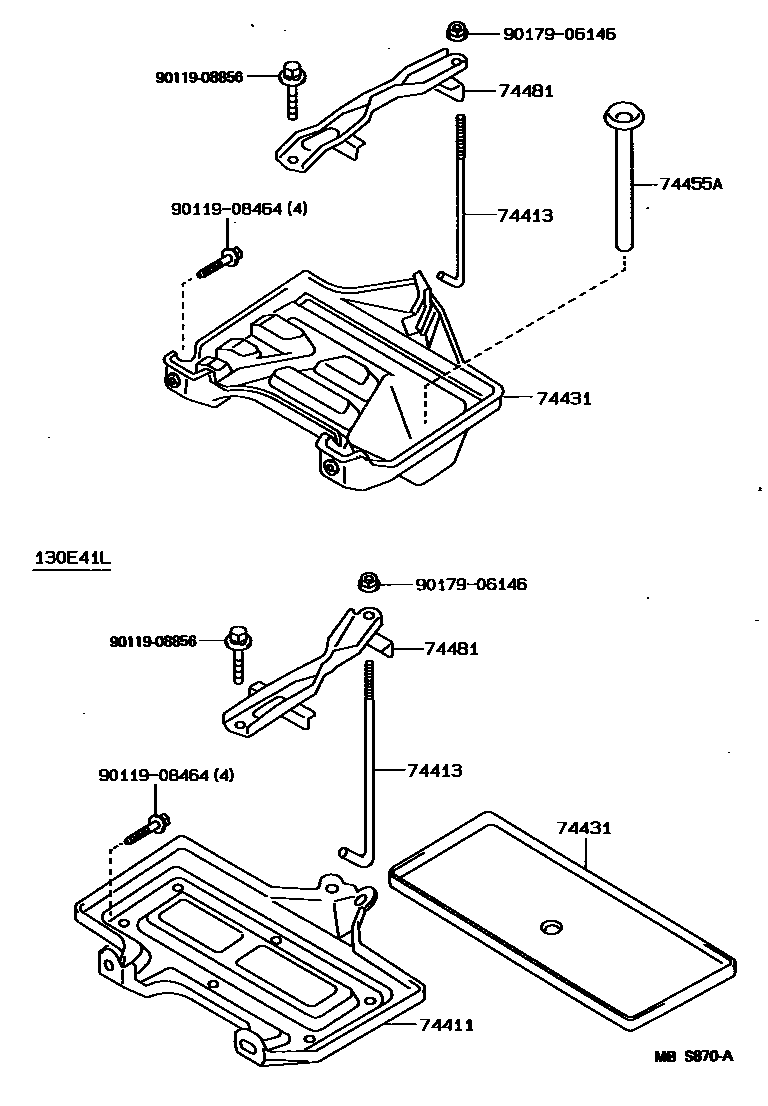

BATTERY CARRIER

74411CARRIER, BATTERY

main74411-30250iLS13#198709-199110

74413BOLT, BATTERY CLAMP

main74451-30080iLS13#198709-199110

main74451-30090iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

74431TRAY, BATTERY

main74431-30010iLS13#198709-199110

main74431-30080iGS136198709-199110

main74431-30090iGS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG198709-199110

main74431-30100iGS130,131..SPC198709-199110

74455AHOSE, BATTERY DRAIN

main74455-30020iMS137,UZS131198805-199110

74481CLAMP, BATTERY HOLD DOWN

main74404-30190iGS136198709-199110

main74404-30220iGS130,131,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

main74404-30230iLS13#198709-199110

9011908464

main90119-08464

9011908856

main90119-08856

9017906146

main90179-06146

8 parts on this diagram · 1 diagram in section
