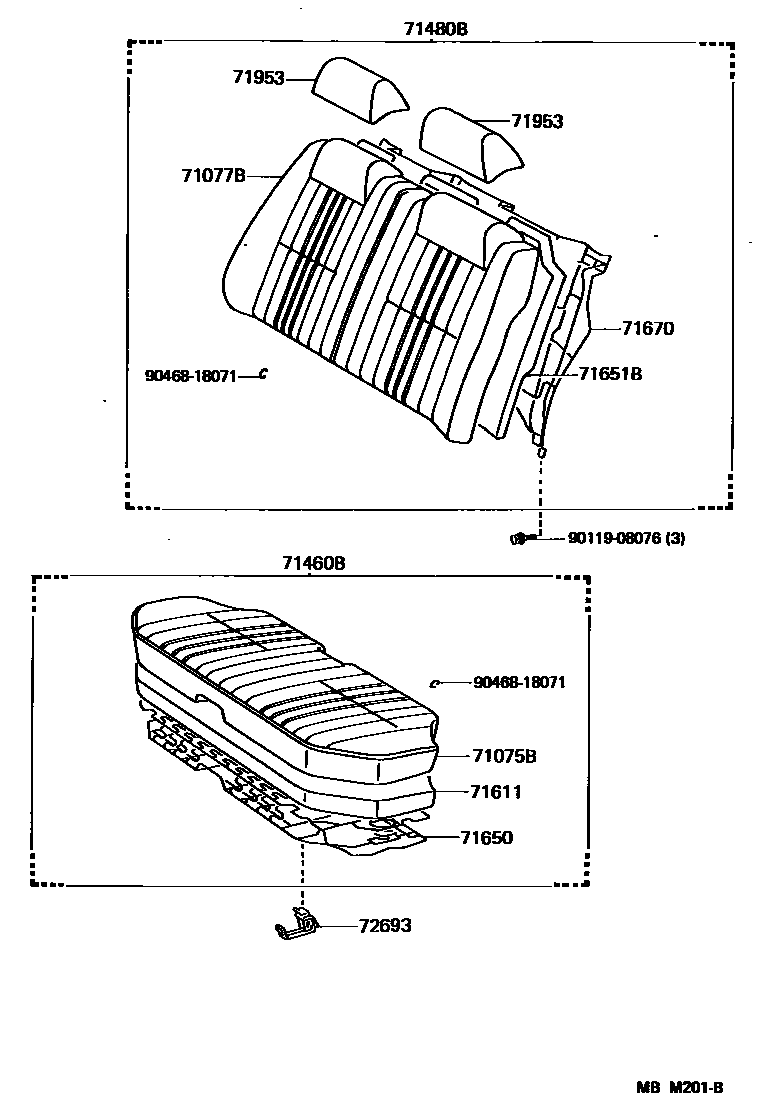

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-30070-02iGS130,131,LS130,131..SED..SALEX198709-199110

MAROON,TRIM3#

main71065-30070-04iGS130,131,LS130,131..SED..SALEX198709-199110

BLUE,TRIM8#

main71065-30070-06iGS130,131,LS130,131..SED..SALEX198709-199110

SABLE,TRIM4#

main71065-30080-04iMS130..SDX198709-198809

sub71065-30081

main71065-30081-04iMS130..SDX198809-198908

main71065-30082-04iGS130..SDX..TWLPG198908-199110

main71065-30260-02iGS130..(4FC,4H)..DLX..HTWC;GS130,YS130..DLX..(EFI,LPG)198709-198908

main71065-30260-04iGS130,YS130..DLX..(EFI,HTWC,LPEFI,LPG)198709-199110

BLUE,TRIM8#

main71065-30260-04iGS130,YS130..DLX..(EFI,HTWC,LPEFI,LPG)198709-199110

main71065-30280-02iGS130,LS130,YS130..DLX198709-199110

MAROON,TRIM3#

main71065-30280-02iMS130..4H..SDX198709-198908

main71065-30280-04iYS130..DLX199008-199110

main71065-30280-04iGS130,LS130,MS130,YS130..DLX198709-199110

BLUE,TRIM8#

main71065-30280-04iGS130,LS130,MS130,YS130..DLX198709-199110

main71065-30290-02iGS130,LS130,MS130..SED..SDX198709-199110

MAROON,TRIM3#

main71065-30290-04iGS130,LS130,MS130..SED..SDX198709-199110

BLUE,TRIM8#

main71065-30300-02iGS130,131..SAL198709-199110

MAROON,TRIM3#

main71065-30300-04iGS130,131..SAL198709-199110

BLUE,TRIM8#

main71065-30300-06iGS130,131..SAL198709-199110

SABLE,TRIM4#

main71065-30350-02iGS130,131,LS130,131..SPE198709-199110

MAROON,TRIM3#

main71065-30350-04iGS130,131,LS130,131..SPE198709-199110

BLUE,TRIM8#

main71065-30350-06iGS130,131,LS130,131..SPE198709-199110

SABLE,TRIM4#

main71065-30360-02iGS131,JZS131,LS130,131..SSL198709-199110

MAROON,TRIM3#

main71065-30360-04iGS131,JZS131,LS130,131..SSL198709-199110

BLUE,TRIM8#

main71065-30360-06iGS131,JZS131,LS130,131..SSL198709-199110

SABLE,TRIM4#

main71065-30380-02iGS131,LS130..HT..SALEX198709-198908

MAROON,TRIM3#

main71065-30380-04iGS131,LS130..HT..SALEX198709-198908

BLUE,TRIM8#

main71065-30380-06iGS131,LS130..HT..SALEX198709-198908

SABLE,TRIM4#

main71065-30381-02iGS131,JZS131,LS131,MS135..HT..SALEX198908-199110

MAROON,TRIM3#

main71065-30381-04iGS131,JZS131,LS131,MS135..HT..SALEX198908-199110

BLUE,TRIM8#

main71065-30381-06iGS131,JZS131,LS131,MS135..HT..SALEX198908-199110

SABLE,TRIM4#

main71065-30400-02iGS131,JZS131,LS130,131..SSL198709-199110

main71065-30400-04iGS131,LS130..SSL198709-198908

main71065-30400-06iGS131,JZS131,LS130,131..SSL198709-199110

main71065-30400-14iGS131,JZS131,LS131..SSL198908-199110

main71065-30410-02iGS131..HT..ROY198709-198809

MAROON,TRIM3#

sub71065-30411

main71065-30410-04iGS131..HT..ROY198709-198809

BLUE,TRIM8#

sub71065-30411

main71065-30410-06iGS131..HT..ROY198709-198809

BROWN,TRIM4#

sub71065-30411

main71065-30411-02iGS131..HT..ROY198809-198908

MAROON,TRIM3#

main71065-30411-04iGS131..HT..ROY198809-198908

BLUE,TRIM8#

main71065-30411-06iGS131..HT..ROY198809-198908

SABLE,TRIM4#

main71065-30412-02iGS131,JZS131..HT..ROY198908-199110

MAROON,TRIM3#

main71065-30412-04iGS131,JZS131..HT..ROY198908-199110

BLUE,TRIM8#

main71065-30412-04iGS131..4FC..SSL..HTWC199108-199110

main71065-30412-06iGS131..4FC..SSL..HTWC199105-199110

main71065-30412-06iGS131,JZS131..HT..ROY198908-199110

SABLE,TRIM4#

main71065-30450-02iGS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX198709-199110

main71065-30450-04iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71065-30450-06iGS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX198709-199110

main71065-30450-14iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71065-30460-04iGS130,MS130..SDX..(LPG,TWLPG)198709-199110

main71065-30490-04iGS131..4FC..SSL198902-198908

main71065-30490-04iGS131..4FC..SSL198902-198908

main71065-30490-06iGS131..4FC..SSL198902-198908

main71065-30490-06iGS131..4FC..SSL198902-198908

main71065-30500-02iGS131..SSL..HTWC198903-198907

main71065-30500-04iGS131..SSL..HTWC198903-198907

main71065-30500-06iGS131..SSL..HTWC198903-198907

main71075-31010-04iGS136,LS136..STD199012-199110

main71075-31020-02iGS136,LS136..DLX199012-199110

main71075-31020-04iGS136,LS136..DLX199012-199110

main71075-31030-02iGS136..SDX199012-199110

main71075-31030-04iGS136..SDX199012-199110

main71075-31040-02iGS130..WG..SDX199012-199110

main71075-31040-04iGS130..WG..SDX199012-199110

main71075-91751-02iGS136..SDX198709-199110

MAROON,TRIM3#

sub71075-31030

main71075-91751-04iGS136..SDX198709-199110

BLUE,TRIM8#

sub71075-31030

main71075-91752-04iGS136,LS136..STD198709-199110

BLUE,TRIM8#

sub71075-31010

main71075-91753-02iGS136,LS136..DLX198709-199110

MAROON,TRIM3#

sub71075-31020

main71075-91753-04iGS136,LS136..DLX198709-199110

BLUE,TRIM8#

sub71075-31020

main71075-91759-02iGS130..WG..SDX198709-199110

MAROON,TRIM3#

sub71075-31040

main71075-91759-04iGS130..WG..SDX198709-199110

BLUE,TRIM8#

sub71075-31040

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-3A290-02iGS130,LS130..SED..SALEX198709-198908

MAROON,TRIM3#

main71077-3A290-04iGS130,LS130..SED..SALEX198709-198908

BLUE,TRIM8#

main71077-3A290-06iGS130,LS130..SED..SALEX198709-198908

SABLE,TRIM4#

main71077-3A291-02iGS131,LS131..SED..SALEX198908-199110

MAROON,TRIM3#

main71077-3A291-04iGS131,LS131..SED..SALEX198908-199110

BLUE,TRIM8#

main71077-3A291-06iGS131,LS131..SED..SALEX198908-199110

SABLE,TRIM4#

main71077-3A300-04iMS130..SDX198709-198809

sub71077-3A301

main71077-3A301-04iMS130..SDX198809-198908

main71077-3A302-04iGS130..SDX..TWLPG198908-199110

main71077-3A340-04iGS130,LS130,YS130..STD198709-199110

BLUE,TRIM8#

main71077-3A340-04iGS130,LS130,YS130..STD198709-199110

main71077-3A360-02iGS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130,YS130..DLX..(DSL,EFI,LPG)198709-199110

MAROON,TRIM3#

main71077-3A360-02iGS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130,YS130..DLX..(DSL,EFI,LPG)198709-198908

main71077-3A360-04iYS130..DLX199008-199110

main71077-3A360-04iGS130,MS130..SED..4H..SDX198709-199110

BLUE,TRIM8#

main71077-3A360-04iGS130,LS130,MS130,YS130..DLX198709-199110

main71077-3A390-02iGS130,LS130,MS130..SED..SDX198709-199008

MAROON,TRIM3#

main71077-3A390-04iGS130,LS130,MS130..SED..SDX198709-199008

BLUE,TRIM8#

main71077-3A391-02iGS130,LS130..SED..SDX199008-199110

MAROON,TRIM3#

main71077-3A391-04iGS130,LS130..SED..SDX199008-199110

BLUE,TRIM8#

main71077-3A400-04iGS130,MS130..SDX..(LPG,TWLPG)198709-199008

main71077-3A401-04iGS130..SDX..TWLPG199008-199110

main71077-3A410-02iGS130..SAL198709-198908

MAROON,TRIM3#

main71077-3A410-04iGS130..SAL198709-198908

BLUE,TRIM8#

main71077-3A410-06iGS130..SAL198709-198908

SABLE,TRIM4#

main71077-3A411-02iGS131..SAL198908-199008

MAROON,TRIM3#

main71077-3A411-04iGS131..SAL198908-199008

BLUE,TRIM8#

main71077-3A411-06iGS131..SAL198908-199008

SABLE,TRIM4#

main71077-3A421-02iGS131..SAL199008-199110

MAROON,TRIM3#

main71077-3A421-04iGS131..SAL199008-199110

BLUE,TRIM8#

main71077-3A421-06iGS131..SAL199008-199110

SABLE,TRIM4#

main71077-3A440-02iGS130,131,LS130,131..SPE198709-199008

MAROON,TRIM3#

main71077-3A440-04iGS130,131,LS130,131..SPE198709-199008

BLUE,TRIM8#

main71077-3A440-06iGS130,131,LS130,131..SPE198709-199008

SABLE,TRIM4#

main71077-3A441-02iGS131,LS131..SPE199008-199110

MAROON,TRIM3#

main71077-3A441-04iGS131,LS131..SPE199008-199110

BLUE,TRIM8#

main71077-3A441-06iGS131,LS131..SPE199008-199110

SABLE,TRIM4#

main71077-3A450-02iGS131,LS130..SSL198709-198908

MAROON,TRIM3#

main71077-3A450-04iGS131,LS130..SSL198709-198908

BLUE,TRIM8#

main71077-3A450-06iGS131,LS130..SSL198709-198908

SABLE,TRIM4#

main71077-3A451-02iGS131,LS131..SSL198908-199008

MAROON,TRIM3#

main71077-3A451-04iGS131,LS131..SSL198908-199008

BLUE,TRIM8#

main71077-3A451-06iGS131,LS131..SSL198908-199008

SABLE,TRIM4#

main71077-3A461-02iGS131,JZS131,LS131..SSL199008-199110

MAROON,TRIM3#

main71077-3A461-04iGS131,JZS131,LS131..SSL199008-199110

BLUE,TRIM8#

main71077-3A461-06iGS131,JZS131,LS131..SSL199008-199110

SABLE,TRIM4#

main71077-3A470-02iGS131,LS130..HT..SALEX198709-198908

MAROON,TRIM3#

main71077-3A470-04iGS131,LS130..HT..SALEX198709-198908

BLUE,TRIM8#

main71077-3A470-06iGS131,LS130..HT..SALEX198709-198908

SABLE,TRIM4#

main71077-3A471-02iGS131,LS131,MS135..HT..SALEX198908-199008

MAROON,TRIM3#

main71077-3A471-04iGS131,LS131,MS135..HT..SALEX198908-199008

BLUE,TRIM8#

main71077-3A471-06iGS131,LS131,MS135..HT..SALEX198908-199008

SABLE,TRIM4#

main71077-3A472-02iGS131,JZS131,LS131,MS135..HT..SALEX199008-199110

MAROON,TRIM3#

main71077-3A472-04iGS131,JZS131,LS131,MS135..HT..SALEX199008-199110

BLUE,TRIM8#

main71077-3A472-06iGS131,JZS131,LS131,MS135..HT..SALEX199008-199110

SABLE,TRIM4#

main71077-3A490-02iGS131,LS130..SSL198709-198908

main71077-3A490-04iGS131,LS130..SSL198709-198908

main71077-3A490-06iGS131,LS130..SSL198709-198908

main71077-3A491-02iGS131,LS131..SSL198908-199008

main71077-3A491-04iGS131,LS131..SSL198908-199008

main71077-3A491-06iGS131,LS131..SSL198908-199008

main71077-3A500-02iGS131..HT..ROY198709-198809

MAROON,TRIM3#

sub71077-3A501

main71077-3A500-04iGS131..HT..ROY198709-198809

BLUE,TRIM8#

sub71077-3A501

main71077-3A500-06iGS131..HT..ROY198709-198809

BROWN,TRIM4#

sub71077-3A501

main71077-3A501-02iGS131..HT..ROY198809-198908

MAROON,TRIM3#

main71077-3A501-04iGS131..HT..ROY198809-198908

BLUE,TRIM8#

main71077-3A501-06iGS131..HT..ROY198809-198908

SABLE,TRIM4#

main71077-3A502-02iGS131,JZS131..HT..ROY198908-199110

MAROON,TRIM3#

main71077-3A502-04iGS131..4FC..SSL..HTWC199108-199110

main71077-3A502-04iGS131,JZS131..HT..ROY198908-199110

BLUE,TRIM8#

main71077-3A502-06iGS131,JZS131..HT..ROY198908-199110

SABLE,TRIM4#

main71077-3A502-06iJZS131..SSL199105-199110

main71077-3A530-02iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71077-3A530-04iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71077-3A530-06iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71077-3A531-02iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71077-3A531-04iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71077-3A531-06iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71077-3A560-04iGS131..SSL..SPC198902-198908

main71077-3A560-04iGS131..4FC..SSL198902-198908

main71077-3A560-06iGS131..SSL..SPC198902-198908

main71077-3A560-06iGS131..SSL..SPC198902-198908

main71077-3A590-02iGS131..SSL..HTWC198903-198907

main71077-3A590-04iGS131..SSL..HTWC198903-198907

main71077-3A590-06iGS131..SSL..HTWC198903-198907

main71077-3A610-02iGS131,JZS131,LS131..SSL199008-199110

main71077-3A610-04iGS131,JZS131,LS131..SSL199008-199110

main71077-3A610-06iGS131,JZS131,LS131..SSL199008-199110

main71077-91751-02iGS136..SDX198709-199110

MAROON,TRIM3#

main71077-91751-04iGS136..SDX198709-199110

BLUE,TRIM8#

main71077-91752-04iGS136,LS136..STD198709-199110

BLUE,TRIM8#

main71077-91753-02iGS136,LS136..(4FC,5F)..DLX198709-199110

MAROON,TRIM3#

main71077-91753-04iGS136,LS136..(4FC,5F)..DLX198709-199110

BLUE,TRIM8#

main71077-91754-02iGS136..4H..DLX198709-199110

MAROON,TRIM3#

main71077-91754-04iGS136..4H..DLX198709-199110

BLUE,TRIM8#

main71077-91755-02iGS130..WG..(4FC,5F)..SDX198709-199110

MAROON,TRIM3#

main71077-91755-04iGS130..WG..SDX198709-199110

BLUE,TRIM8#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-31010-04iGS136,LS136..STD199012-199110

main71460-31020-02iGS136,LS136..DLX199012-199110

main71460-31020-04iGS136,LS136..DLX199012-199110

main71460-31030-02iGS136..SDX199012-199110

main71460-31030-04iGS136..SDX199012-199110

main71460-31040-02iGS130..WG..SDX199012-199110

main71460-31040-04iGS130..WG..SDX199012-199110

main71460-91751-04iGS136,LS136..STD198709-199110

***,BLUE,TRIM8#

sub71460-31010

main71460-91752-02iGS136,LS136..DLX198709-199110

***,MAROON,TRIM3#

sub71460-31020

main71460-91752-04iGS136,LS136..DLX198709-199110

***,BLUE,TRIM8#

sub71460-31020

main71460-91753-02iGS136..SDX198709-199110

***,MAROON,TRIM3#

sub71460-31030

main71460-91753-04iGS136..SDX198709-199110

***,BLUE,TRIM8#

sub71460-31030

main71460-91759-02iGS130..WG..SDX198709-199110

***,MAROON,TRIM3#

sub71460-31040

main71460-91759-04iGS130..WG..SDX198709-199110

***,BLUE,TRIM8#

sub71460-31040

main71560-30440-02iYS130..DLX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI198709-198908

main71560-30440-04iGS130,LS130,YS130..STD198709-199110

main71560-30440-04iGS130,YS130..DLX..(EFI,HTWC,LPEFI,LPG)198709-199110

***,BLUE,TRIM8#

main71560-30460-02iMS130..4H..SDX198709-198908

main71560-30460-02iMS130..4H..SDX198709-199110

***,MAROON,TRIM3#

main71560-30460-04iGS130,MS130..SED..4H..SDX198709-199110

main71560-30460-04iGS130,LS130,MS130,YS130..DLX198709-199110

***,BLUE,TRIM8#

main71560-30460-04iYS130..DLX199008-199110

main71560-30470-02iGS130,LS130,MS130..SED..SDX198709-199110

***,MAROON,TRIM3#

main71560-30470-04iGS130,LS130,MS130..SED..SDX198709-199110

***,BLUE,TRIM8#

main71560-30490-02iGS130,131..SAL198709-199110

***,MAROON,TRIM3#

main71560-30490-04iGS130,131..SAL198709-199110

***,BLUE,TRIM8#

main71560-30490-06iGS130,131..SAL198709-199110

***,SABLE,TRIM4#

main71560-30500-04iMS130..(4H,4HC)..SDX198709-198809

sub71560-30501

main71560-30501-04iMS130..SDX198809-198908

main71560-30502-04iGS130..SDX..TWLPG198908-199110

main71560-30520-02iGS130,131,LS130,131..SED..SALEX198709-199110

***,MAROON,TRIM3#

main71560-30520-04iGS130,131,LS130,131..SED..SALEX198709-199110

***,BLUE,TRIM8#

main71560-30520-06iGS130,131,LS130,131..SED..SALEX198709-199110

***,SABLE,TRIM4#

main71560-30540-02iGS130,131,LS130,131..SPE198709-199110

***,MAROON,TRIM3#

main71560-30540-04iGS130,131,LS130,131..SPE198709-199110

***,BLUE,TRIM8#

main71560-30540-06iGS130,131,LS130,131..SPE198709-199110

***,SABLE,TRIM4#

main71560-30550-02iGS131,JZS131,LS130,131..SSL198709-199110

***,MAROON,TRIM3#

main71560-30550-04iGS131,JZS131,LS130,131..SSL198709-199110

***,BLUE,TRIM8#

main71560-30550-06iGS131,JZS131,LS130,131..SSL198709-199110

***,SABLE,TRIM4#

main71560-30570-02iGS131,LS130..HT..SALEX198709-198908

***,MAROON,TRIM3#

main71560-30570-04iGS131,LS130..HT..SALEX198709-198908

***,BLUE,TRIM8#

main71560-30570-06iGS131,LS130..HT..SALEX198709-198908

***,SABLE,TRIM4#

main71560-30571-02iGS131,JZS131,LS131,MS135..HT..SALEX198908-199110

***,MAROON,TRIM3#

main71560-30571-04iGS131,JZS131,LS131,MS135..HT..SALEX198908-199110

***,BLUE,TRIM8#

main71560-30571-06iGS131,JZS131,LS131,MS135..HT..SALEX198908-199110

***,SABLE,TRIM4#

main71560-30600-02iGS131..HT..ROY198709-198809

MAROON,TRIM3#

sub71560-30601

main71560-30600-04iGS131..HT..4HC..SPC198709-198809

BLUE,TRIM8#

sub71560-30601

main71560-30600-06iGS131..HT..ROY198709-198809

BROWN,TRIM4#

sub71560-30601

main71560-30601-02iGS131..HT..ROY198809-198908

***,MAROON,TRIM3#

main71560-30601-04iGS131..HT..ROY198809-198908

***,BLUE,TRIM8#

main71560-30601-06iGS131..HT..ROY198809-198908

***,SABLE,TRIM4#

main71560-30602-02iGS131,JZS131..HT..ROY198908-199110

***,MAROON,TRIM3#

main71560-30602-04iGS131,JZS131..HT..ROY198908-199110

***,BLUE,TRIM8#

main71560-30602-06iGS131,JZS131..HT..ROY198908-199110

***,SABLE,TRIM4#

main71560-30640-02iGS131,JZS131,LS130,131..SSL198709-199110

main71560-30640-04iGS131,LS130..SSL198709-198908

main71560-30640-06iGS131,JZS131,LS130,131..SSL198709-199110

main71560-30640-14iGS131,JZS131,LS131..SSL198908-199110

main71560-30650-02iGS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX198709-199110

main71560-30650-04iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71560-30650-06iGS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX198709-199110

main71560-30650-14iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71560-30660-04iGS130,MS130..SDX..(LPG,TWLPG)198709-199110

main71560-30690-04iGS131..SSL..SPC198902-198908

main71560-30690-04iGS131..4FC..SSL198902-198908

main71560-30690-06iGS131..SSL..SPC198902-198908

main71560-30690-06iGS131..4FC..SSL198902-198908

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-30902-02iGS131..HT..4FC..ROY..SPC198809-198908

main71480-30902-04iGS131..HT..4FC..ROY..SPC198809-198908

main71480-30902-06iGS131..HT..4HC..SPC198809-198908

main71480-30903-02iGS131..HT..4FC..ROY..SPC198908-199110

main71480-30903-04iGS131,JZS131..HT..4HC..ROY198908-199110

main71480-30903-06iGS131,JZS131..HT..4HC..ROY198908-199110

main71480-31020-04iGS136,LS136..STD199012-199110

main71480-31030-02iGS136..4H..DLX199012-199110

main71480-31030-04iGS136..4H..DLX199012-199110

main71480-31040-02iGS136,LS136..(4FC,5F)..DLX199012-199110

main71480-31040-04iGS136,LS136..(4FC,5F)..DLX199012-199110

main71480-31050-02iGS136..SDX199012-199110

main71480-31050-04iGS136..SDX199012-199110

main71480-31060-02iGS130..WG..SDX199012-199110

main71480-31060-04iGS130..WG..SDX199012-199110

main71480-3A400-02iGS130,LS130..SED..SALEX198709-198908

***,MAROON,TRIM3#

main71480-3A400-04iGS130,LS130..SED..SALEX198709-198908

***,BLUE,TRIM8#

main71480-3A400-06iGS130,LS130..SED..SALEX198709-198908

***,SABLE,TRIM4#

main71480-3A401-02iGS131,LS131..SED..SALEX198908-199110

***,MAROON,TRIM3#

main71480-3A401-04iGS131,LS131..SED..SALEX198908-199110

***,BLUE,TRIM8#

main71480-3A401-06iGS131,LS131..SED..SALEX198908-199110

***,SABLE,TRIM4#

main71480-3A420-02iGS130,131..SAL198709-199008

***,MAROON,TRIM3#

main71480-3A420-04iGS130,131..SAL198709-199008

***,BLUE,TRIM8#

main71480-3A420-06iGS130,131..SAL198709-199008

***,SABLE,TRIM4#

main71480-3A450-02iGS131..SAL199008-199110

***,MAROON,TRIM3#

main71480-3A450-04iGS131..SAL199008-199110

***,BLUE,TRIM8#

main71480-3A450-06iGS131..SAL199008-199110

***,SABLE,TRIM4#

main71480-3A470-04iGS130,YS130..DLX..(EFI,HTWC,LPEFI,LPG)198709-199110

main71480-3A470-04iGS130,LS130,YS130..STD198709-199110

***,BLUE,TRIM8#

main71480-3A500-02iMS130..4H..SDX198709-199110

***,MAROON,TRIM3#

main71480-3A500-02iGS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130,YS130..DLX..(DSL,EFI,LPG)198709-198908

main71480-3A500-04iGS130,LS130,MS130,YS130..DLX198709-199110

main71480-3A500-04iGS130,LS130,MS130,YS130..DLX198709-199110

***,BLUE,TRIM8#

main71480-3A500-04iYS130..DLX199008-199110

main71480-3A510-02iGS130,LS130,MS130..SED..SDX198709-199008

***,MAROON,TRIM3#

main71480-3A510-04iGS130,LS130,MS130..SED..SDX198709-199008

***,BLUE,TRIM8#

main71480-3A511-02iGS130,LS130..SED..SDX199008-199110

***,MAROON,TRIM3#

main71480-3A511-04iGS130,LS130..SED..SDX199008-199110

***,BLUE,TRIM8#

main71480-3A520-04iGS130,MS130..SDX..(LPG,TWLPG)198709-199008

main71480-3A521-04iGS130..SDX..TWLPG199008-199110

main71480-3A560-04iMS130..SDX198709-198809

sub71480-3A561

main71480-3A561-04iMS130..SDX198809-198908

main71480-3A562-04iGS130..SDX..TWLPG198908-199110

main71480-3A570-02iGS130,131,LS130,131..SPE198709-199008

***,MAROON,TRIM3#

main71480-3A570-04iGS130,131,LS130,131..SPE198709-199008

***,BLUE,TRIM8#

main71480-3A570-06iGS130,131,LS130,131..SPE198709-199008

***,SABLE,TRIM4#

main71480-3A571-02iGS131,LS131..SPE199008-199110

***,MAROON,TRIM3#

main71480-3A571-04iGS131,LS131..SPE199008-199110

***,BLUE,TRIM8#

main71480-3A571-06iGS131,LS131..SPE199008-199110

***,SABLE,TRIM4#

main71480-3A580-02iGS131,LS130,131..SSL198709-199008

***,MAROON,TRIM3#

main71480-3A580-04iGS131,LS130,131..SSL198709-199008

***,BLUE,TRIM8#

main71480-3A580-06iGS131,LS130,131..SSL198709-199008

***,SABLE,TRIM4#

main71480-3A590-02iGS131,JZS131,LS131..SSL199008-199110

***,MAROON,TRIM3#

main71480-3A590-04iGS131,JZS131,LS131..SSL199008-199110

***,BLUE,TRIM8#

main71480-3A590-06iGS131,JZS131,LS131..SSL199008-199110

***,SABLE,TRIM4#

main71480-3A610-02iGS131,LS130..HT..SALEX198709-198908

***,MAROON,TRIM3#

main71480-3A610-04iGS131,LS130..HT..SALEX198709-198908

***,BLUE,TRIM8#

main71480-3A610-06iGS131,LS130..HT..SALEX198709-198908

***,SABLE,TRIM4#

main71480-3A611-02iGS131,LS131,MS135..HT..SALEX198908-199008

***,MAROON,TRIM3#

main71480-3A611-04iGS131,LS131,MS135..HT..SALEX198908-199008

***,BLUE,TRIM8#

main71480-3A611-06iGS131,LS131,MS135..HT..SALEX198908-199008

***,SABLE,TRIM4#

main71480-3A612-02iGS131,JZS131,LS131,MS135..HT..SALEX199008-199110

***,MAROON,TRIM3#

main71480-3A612-04iGS131,JZS131,LS131,MS135..HT..SALEX199008-199110

***,BLUE,TRIM8#

main71480-3A612-06iGS131,JZS131,LS131,MS135..HT..SALEX199008-199110

***,SABLE,TRIM4#

main71480-3A620-02iGS131..HT..4HC..SPC198709-198809

MAROON,TRIM3#

sub71480-3A621

main71480-3A620-04iGS131..HT..4HC..SPC198709-198809

BLUE,TRIM8#

sub71480-3A621

main71480-3A620-06iGS131..HT..ROY198709-198809

BROWN,TRIM4#

sub71480-3A621

main71480-3A621-02iGS131..HT..ROY198809-198908

***,MAROON,TRIM3#

main71480-3A621-04iGS131..HT..ROY198809-198908

***,BLUE,TRIM8#

main71480-3A621-06iGS131..HT..ROY198809-198908

***,SABLE,TRIM4#

main71480-3A622-02iGS131,JZS131..HT..ROY198908-199110

***,MAROON,TRIM3#

main71480-3A622-04iGS131,JZS131..HT..ROY198908-199110

***,BLUE,TRIM8#

main71480-3A622-06iGS131,JZS131..HT..ROY198908-199110

***,SABLE,TRIM4#

main71480-3A650-02iGS131,LS130,131..SSL198709-199008

main71480-3A650-04iGS131,LS130..SSL198709-198908

main71480-3A650-06iGS131,LS130,131..SSL198709-199008

main71480-3A650-14iGS131,LS131..SSL198908-199008

main71480-3A680-02iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71480-3A680-04iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71480-3A680-06iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71480-3A681-02iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71480-3A681-04iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71480-3A681-06iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71480-3A690-04iGS131..4FC..SSL198902-198908

main71480-3A690-04iGS131..SSL..SPC198902-198908

main71480-3A690-06iGS131..SSL..SPC198902-198908

main71480-3A690-06iGS131..4FC..SSL198902-198908

main71480-3A720-02iGS131,JZS131,LS131..SSL199008-199110

main71480-3A720-04iGS131,JZS131,LS131..SSL199008-199110

main71480-3A720-06iGS131,JZS131,LS131..SSL199008-199110

main71480-91E05-04iGS136,LS136..STD198709-199110

***,BLUE,TRIM8#

main71480-91E06-02iGS136..4H..DLX198709-199110

***,MAROON,TRIM3#

main71480-91E06-04iGS136..4H..DLX198709-199110

***,BLUE,TRIM8#

main71480-91E07-02iGS136,LS136..(4FC,5F)..DLX198709-199110

***,MAROON,TRIM3#

main71480-91E07-04iGS136,LS136..(4FC,5F)..DLX198709-199110

***,BLUE,TRIM8#

main71480-91E08-02iGS136..SDX198709-199110

***,MAROON,TRIM3#

main71480-91E08-04iGS136..SDX198709-199110

***,BLUE,TRIM8#

main71480-91E09-04iGS136,LS136..STD198709-199110

main71480-91E10-02iGS136..4H..DLX198709-199110

main71480-91E10-04iGS136..4H..DLX198709-199110

main71480-91E11-02iGS136,LS136..(4FC,5F)..DLX198709-199110

main71480-91E11-04iGS136,LS136..(4FC,5F)..DLX198709-199110

main71480-91E12-02iGS136..SDX198709-199110

main71480-91E12-04iGS136..SDX198709-199110

main71480-91E13-02iGS130..WG..SDX198709-199110

***,MAROON,TRIM3#

main71480-91E13-04iGS130..WG..SDX198709-199110

***,BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71503-91704iGS130,136,LS136..(V,WG)..(DLX,SDX,STD)198709-199110

main71611-30480iGS130,MS130..SDX..(LPG,TWLPG)198709-199110

main71611-30580iGS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)198709-199110

main71611-30590iGS131,JZS131..HT..ROY198709-199110

main71611-30590iGS131..4FC..SSL..HTWC199105-199110

main71611-30610iGS130,131,JZS131,LS130,131..SPE,SSL198709-199110

main71611-30620iGS131,JZS131,LS130,131..SSL198709-199110

71650SPRING ASSY, REAR SEAT CUSHION

main71015-30260iGS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX198709-199110

main71015-30260iGS131..4FC..SSL..HTWC199105-199110

main71650-30360iGS130,131,LS130,131..SED..SALEX198709-199110

main71650-30380iGS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)198709-199101

sub71650-30400

main71650-30390iGS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL)198709-199110

main71650-30400iGS130,131,LS130,YS130..SED..(DLX,SAL,SDX,STD)199101-199110

main71650-91708iGS136,LS136198709-199110

main71650-91709iGS130..WG..SDX198709-199110

main71650-91710iGS130,LS130..WG..SALEX198709-198908

main71650-91711iGS130..SPC198709-198908

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-30050iGS130,LS130,YS130..STD198709-199110

main71507-30080iGS130,LS130,MS130,YS130..SED..(DLX,SDX)198709-199110

main71507-30080iYS130..DLX199008-199110

main71507-30090iGS130,131,LS130,131..SPE198709-199110

main71507-30100iGS131,LS130..HT..(SALEX,SSL)198709-198908

main71651-30590iMS130..SDX198709-198908

main71651-30591iGS130..SDX..TWLPG198908-199110

main71651-30620iGS130..SAL198709-198908

main71651-30630iGS131,LS130..HT..(4FC,5F)..SALEX198709-198908

main71651-30631iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71651-30631iGS131..4FC..SSL..HTWC199105-199110

main71651-30700iGS131..SAL198908-199110

main71651-30710iGS131,JZS131,LS131..SSL198908-199110

main71651-30720iGS131,JZS131,LS131,MS135..HT..SALEX198908-199110

main71651-91711iGS136,LS136198709-199110

main71651-91713iGS130..WG..SDX198709-199110

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-30430iGS130,LS130..SED..SALEX198709-198908

main71670-30431iGS130..SDX..TWLPG198908-199110

main71670-30450iGS130,LS130,YS130..STD198709-199110

main71670-30460iYS130..DLX199008-199110

main71670-30460iGS130,LS130,MS130,YS130..SED..(DLX,SDX)198709-199110

main71670-30470iGS130,131..SAL198709-199101

sub71670-30520

main71670-30480iGS131..HT..ROY198709-198908

main71670-30481iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX198908-199110

main71670-30481iGS131..4FC..SSL..HTWC199105-199110

main71670-30500iGS130,131,LS130,131..SPE198709-199110

main71670-30510iGS131,JZS131,LS130,131,MS135..HT..(SALEX,SSL)198709-199110

main71670-30520iGS131..SAL199101-199110

main71670-31010iGS136,LS136..4H199012-199110

main71670-31020iGS136,LS136..4FC,5F199012-199110

main71670-31030iGS130..WG..SDX199012-199110

main71670-91719iGS136,LS136..4H198709-198908

main71670-91720iGS136,LS136..4FC,5F198709-199110

main71670-91721iGS136,LS136..4H198709-199110

main71670-91721iGS136,LS136..4H198908-199012

main71670-91722iGS136,LS136..4FC,5F198709-199110

main71670-91723iGS130..WG..SDX198709-199110

71953PAD, REAR SEAT HEADREST

main71953-30090iGS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)198709-199110

main71953-30120iGS130,131,LS130,131..SPE198709-199110

main71953-91701iGS130..WG..SDX198709-199110

72693HOOK, REAR SEAT CUSHION LOCK

main72693-30011iGS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)198709-199110

9011908076

main90119-08076

9046818071

main90468-18071

12 parts on this diagram · 16 diagrams in section
