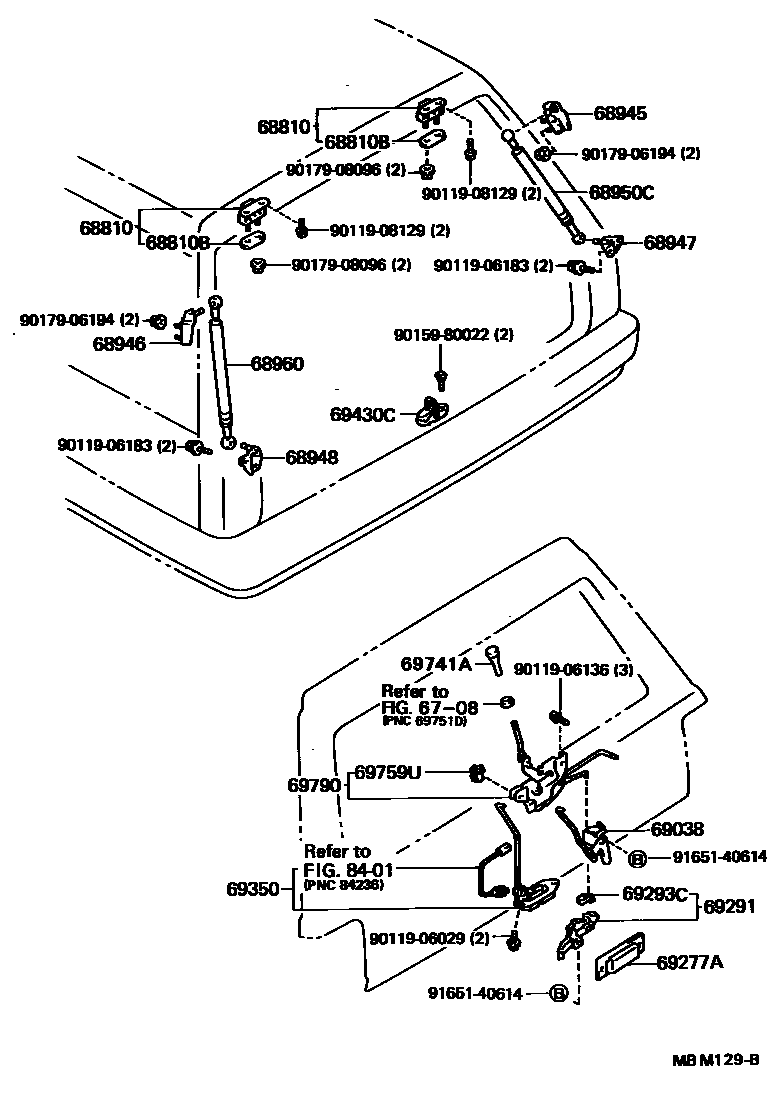

BACK DOOR LOCK & HANDLE

0001 1 0002 1 0003 1 0004 1

6708

68810HINGE ASSY, BACK DOOR, UPPER

main68810-91705iGS130,136,LS13#..V,WG198709-198808

sub68810-91706

main68810-91706iGS130,136,JZS130,LS130,136..V,WG198808-199110

68810BPAD, BACK DOOR HINGE

main68838-15010iGS130,136,LS13#..V,WG198709-198808

sub68838-15011

main68838-15011iGS130,136,JZS130,LS130,136..V,WG198808-199110

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-91701iGS130,136,JZS130,LS130,136..V,WG198709-199110

sub68945-31010

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-91701iGS130,136,JZS130,LS130,136..V,WG198709-199110

sub68946-31010

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-91701iGS130,136,JZS130,LS130,136..V,WG198709-199110

sub68947-31010

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-91701iGS130,136,JZS130,LS130,136..V,WG198709-199110

sub68948-31010

68950CSTAY ASSY, BACK DOOR, RH

main68950-91707iGS136..SDX198709-199110

main68950-91708iGS136,LS136..DLX,STD198709-199110

main68950-91709iGS130,LS130..WG198709-198908

main68950-91711iGS130,JZS130,LS130..WG198908-199110

sub68950-39235

68960STAY ASSY, BACK DOOR, LH

main68960-91707iGS136..SDX198709-199110

main68960-91708iGS136,LS136..DLX,STD198709-199110

main68960-91709iGS130,LS130..WG198709-198908

main68960-91711iGS130,JZS130,LS130..WG198908-199110

sub68960-39095

69038PROTECTOR SUB-ASSY, BACK DOOR CHILD

main69038-91702iGS130,LS130..WG..(SALEX,SDX)198709-199110

69277ABEZEL, BACK DOOR INSIDE HANDLE

main69277-91701-12iGS130,JZS130,LS130..WG198709-199110

MAROON,TRIM3#

sub69277-91701

main69277-91701-16iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

SABLE,TRIM4#

sub69277-91701

main69277-91701-24iGS130,JZS130,LS130..WG198709-199110

BLUE,TRIM8#

sub69277-91701

69291HANDLE ASSY, BACK DOOR INSIDE

main69209-91702-12iGS130,JZS130,LS130..WG198709-199110

MAROON,TRIM3#

main69209-91702-16iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

SABLE,TRIM4#

main69209-91702-24iGS130,JZS130,LS130..WG198709-199110

BLUE,TRIM8#

69293CSNAP, BACK DOOR HANDLE

main69293-12020iGS130,JZS130,LS130..WG198709-199110

69350LOCK ASSY, BACK DOOR

main69350-91706iGS130,136,LS13#..V,WG198709-198809

sub69350-91707

main69350-91707iGS130,136,JZS130,LS130,136..V,WG198809-199110

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-91703iGS130,136,JZS130,LS130,136..V,WG198709-199110

69741AKNOB, BACK DOOR LOCK CONTROL

main69741-91701-12iGS130,JZS130,LS130..WG198709-199110

MAROON,TRIM3#

sub69741-91701

main69741-91701-16iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

SABLE,TRIM4#

sub69741-91701

main69741-91701-34iGS130,JZS130,LS130..WG198709-199110

BLUE,TRIM8#

sub69741-91701

69759USNAP, BACK DOOR LOCK CONTROL LINK

main69759-24060iGS130,LS130..WG..(SALEX,SDX)198709-199110

main69759-24060iGS130,LS130..WG..(HTWC,TDE)198908-199110

GRAY

main69759-24080iGS130,LS130..WG..(HTWC,TDE)198908-199110

69790CONTROL ASSY, BACK DOOR LOCK

main69790-91711iGS136,LS136198709-199110

main69790-91712iGS130,LS130..WG..(SALEX,SDX)198709-199110

main69790-91713iGS130,JZS130..ROY198709-199110

8401

9011906029

main90119-06029

9011906136

main90119-06136

9011906183

main90119-06183

9011908129

main90119-08129

9015980022

main90159-80022

9017906194

main90179-06194

9017908096

main90179-08096

9165140614

main91651-40614

27 parts on this diagram · 4 diagrams in section
