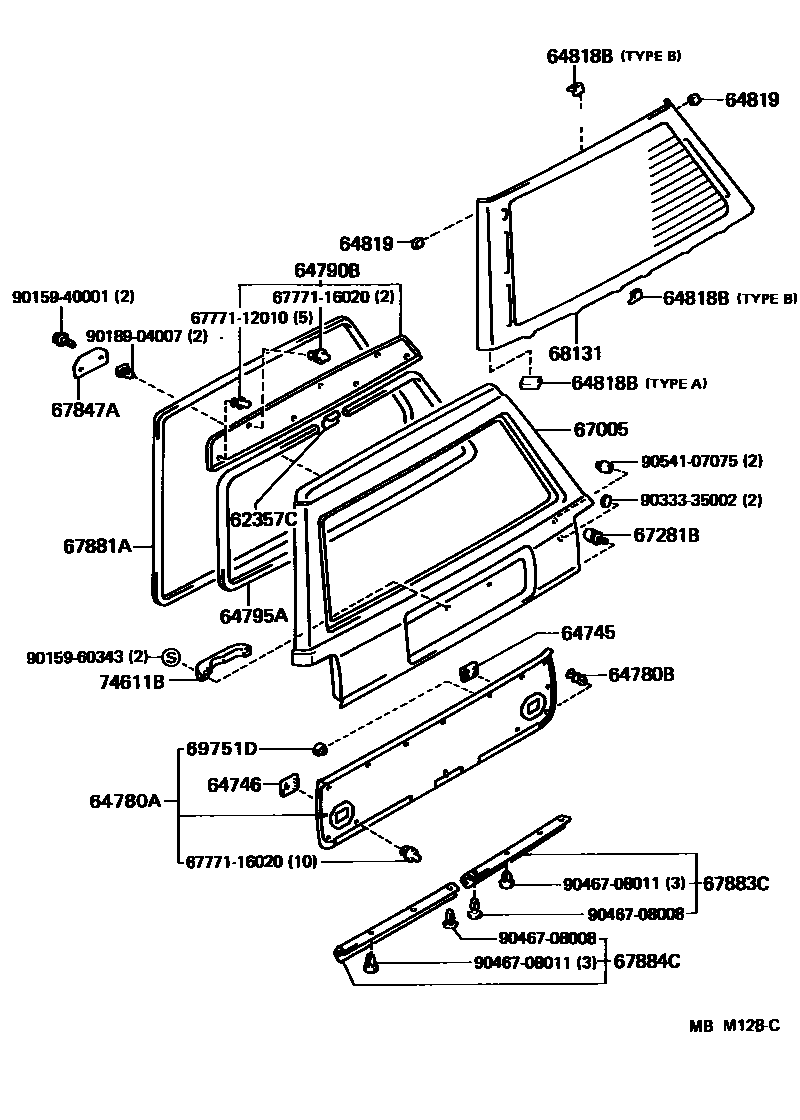

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

62357CCOVER, BACK WINDOW INSIDE TRIM

main62357-91703-12iGS130,LS130..WG198709-198908

MAROON,TRIM3#

sub62357-91703

main62357-91703-14iGS130,LS130..WG198709-198908

BLUE,TRIM8#

sub62357-91703

main62357-91703-16iGS130,LS130..WG..(ROY,SALEX)198709-198908

SABLE,TRIM4#

sub62357-91703

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-91701-02iGS130,JZS130,LS130..WG198709-199110

MAROON,TRIM3#

sub64745-91701

main64745-91701-04iGS130,JZS130,LS130..WG198709-199110

BLUE,TRIM8#

sub64745-91701

main64745-91701-06iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

SABLE,TRIM4#

sub64745-91701

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64745-91701-02iGS130,JZS130,LS130..WG198709-199110

MAROON,TRIM3#

sub64745-91701

main64745-91701-04iGS130,JZS130,LS130..WG198709-199110

BLUE,TRIM8#

sub64745-91701

main64745-91701-06iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

SABLE,TRIM4#

sub64745-91701

64780APANEL ASSY, BACK DOOR TRIM

main64780-91719-02iGS136,LS136..DLX,SDX198709-199110

MAROON,TRIM3#

main64780-91719-04iGS136,LS136198709-199110

BLUE,TRIM8#

main64780-91720-02iGS130..WG..SDX198709-199110

MAROON,TRIM3#

main64780-91720-04iGS130..WG..SDX198709-199110

BLUE,TRIM8#

main64780-91721-02iGS130,LS130..WG..SALEX198709-199110

MAROON,TRIM3#

main64780-91721-04iGS130,LS130..WG..SALEX198709-199110

BLUE,TRIM8#

main64780-91721-06iGS130,LS130..WG..SALEX198709-199110

SABLE,TRIM4#

main64780-91722-02iGS130..SPC198709-198908

MAROON,TRIM3#

main64780-91722-04iGS130..SPC198709-198908

BLUE,TRIM8#

main64780-91722-06iGS130..SPC198709-198908

SABLE,TRIM4#

main64780-91724-02iGS130,JZS130..ROY198908-199110

MAROON,TRIM3#

main64780-91724-04iGS130,JZS130..ROY198908-199110

BLUE,TRIM8#

main64780-91724-06iGS130,JZS130..ROY198908-199110

SABLE,TRIM4#

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-08114-32iGS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)198709-199110

MAROON,TRIM3#

sub90467-08114

main90467-08114-38iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

SABLE,TRIM4#

sub90467-08114

main90467-08114-54iGS130,136,JZS130,LS130,136..V,WG198709-199110

BLUE,TRIM8#

sub90467-08114

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-91702-04iGS130,LS130..WG..(ROY,SALEX)198709-198908

BLUE,TRIM8#

sub64790-91702

main64790-91702-06iGS130,LS130..WG..(ROY,SALEX)198709-198908

SABLE,TRIM3#,4#

sub64790-91702

main64790-91703-04iGS130,JZS130,LS130..WG198908-199110

BLUE,TRIM8#

sub64790-91703

main64790-91703-06iGS130,JZS130,LS130..ROY,SALEX198908-199110

SABLE,TRIM3#,4#

sub64790-91703

main64790-91703-06iGS130,JZS130,LS130..ROY,SALEX198908-199110

SABLE,TRIM3#

sub64790-91703

64795ATRIM, BACK WINDOW OPENING

main64795-91701-02iGS130,LS130..WG198709-198710

MAROON,TRIM3#

sub64795-91703

sub64795-91701

main64795-91701-14iGS130,LS130..WG198709-198710

BLUE,TRIM8#

sub64795-91703

sub64795-91701

main64795-91701-16iGS130,LS130..WG..(ROY,SALEX)198709-198710

SABLE,TRIM4#

sub64795-91703

sub64795-91701

main64795-91703-02iGS130,LS130..WG198710-198908

MAROON,TRIM3#

main64795-91703-04iGS130,LS130..WG198710-198908

BLUE,TRIM8#

main64795-91703-06iGS130,LS130..WG..(ROY,SALEX)198710-198908

SABLE,TRIM4#

main64795-91704-02iGS130,JZS130,LS130..WG198908-199110

MAROON,TRIM3#

sub64795-91704

main64795-91704-04iGS130,JZS130,LS130..WG198908-199110

BLUE,TRIM8#

sub64795-91704

main64795-91704-06iGS130,JZS130,LS130..ROY,SALEX198908-199110

SABLE,TRIM4#

sub64795-91704

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-91701iGS130,JZS130,LS130..WG198709-199110

main64818-91702iGS130,LS130..WG198709-199110

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-91701iGS130,JZS130,LS130..WG198709-199110

67005PANEL SUB-ASSY, BACK DOOR

main67005-91780iGS136,LS136..DLX,STD198709-199110

main67005-91781iGS136,LS136..DLX,STD198709-199110

main67005-91784iGS130..WG..SDX198709-198908

main67005-91786iGS130,LS130..WG..(ROY,SALEX)198709-198908

main67005-91E01iGS130,JZS130,LS130..WG198908-199110

67281BSTOPPER, BACK DOOR, LOWER

main67281-91605iGS130,136,JZS130,LS130,136..V,WG198709-199110

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-91701iGS130,136,LS136..(V,WG)..(DLX,SDX,STD)198709-199110

67881AWEATHERSTRIP, BACK DOOR

main67881-91255iGS130,136,JZS130,LS130,136..V,WG198709-199110

67883CWEATHERSTRIP, BACK DOOR, LOWER RH

main67883-91701iGS130,136,JZS130,LS130,136..V,WG198709-199110

67884CWEATHERSTRIP, BACK DOOR, LOWER LH

main67884-91701iGS130,136,JZS130,LS130,136..V,WG198709-199110

68131GLASS, BACK DOOR

main68105-91715iGS136,LS136..DLX,SDX198709-199110

main68105-91716iGS130,LS130..WG198709-198909

sub68105-91723

main68105-91717iGS130,LS130..WG..(ROY,SALEX)198709-198909

sub68105-91724

main68105-91722iGS136,LS136..DLX198908-199110

sub68105-91715

main68105-91722iGS136,LS136..DLX198709-198908

sub68105-91715

main68105-91723iGS130,JZS130,LS130..WG198908-199110

sub68105-31020

main68105-91724iGS130,JZS130,LS130..ROY,SALEX198908-199110

main68131-91703iGS136,LS136..STD198709-199110

sub68105-91714

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69751-91701-12iGS130,JZS130,LS130..WG198709-199110

MAROON,TRIM3#

sub69751-91701

main69751-91701-14iGS130,JZS130,LS130..WG198709-199110

BLUE,TRIM8#

sub69751-91701

main69751-91701-16iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

SABLE,TRIM4#

sub69751-91701

74611BGRIP, ASSIST

main74611-91701-12iGS130,JZS130,LS130..WG198709-199110

MAROON,TRIM3#

sub74611-91701

main74611-91701-14iGS130,JZS130,LS130..WG198709-199110

BLUE,TRIM8#

sub74611-91701

main74611-91701-16iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

SABLE,TRIM4#

sub74611-91701

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6777116020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16020

9015940001

main90159-40001

9015960343

main90159-60343

9018904007

main90189-04007

9033335002

main90333-35002

9046708008

main90467-08008

9046708011

main90467-08011

9054107075

main90541-07075

27 parts on this diagram · 3 diagrams in section
