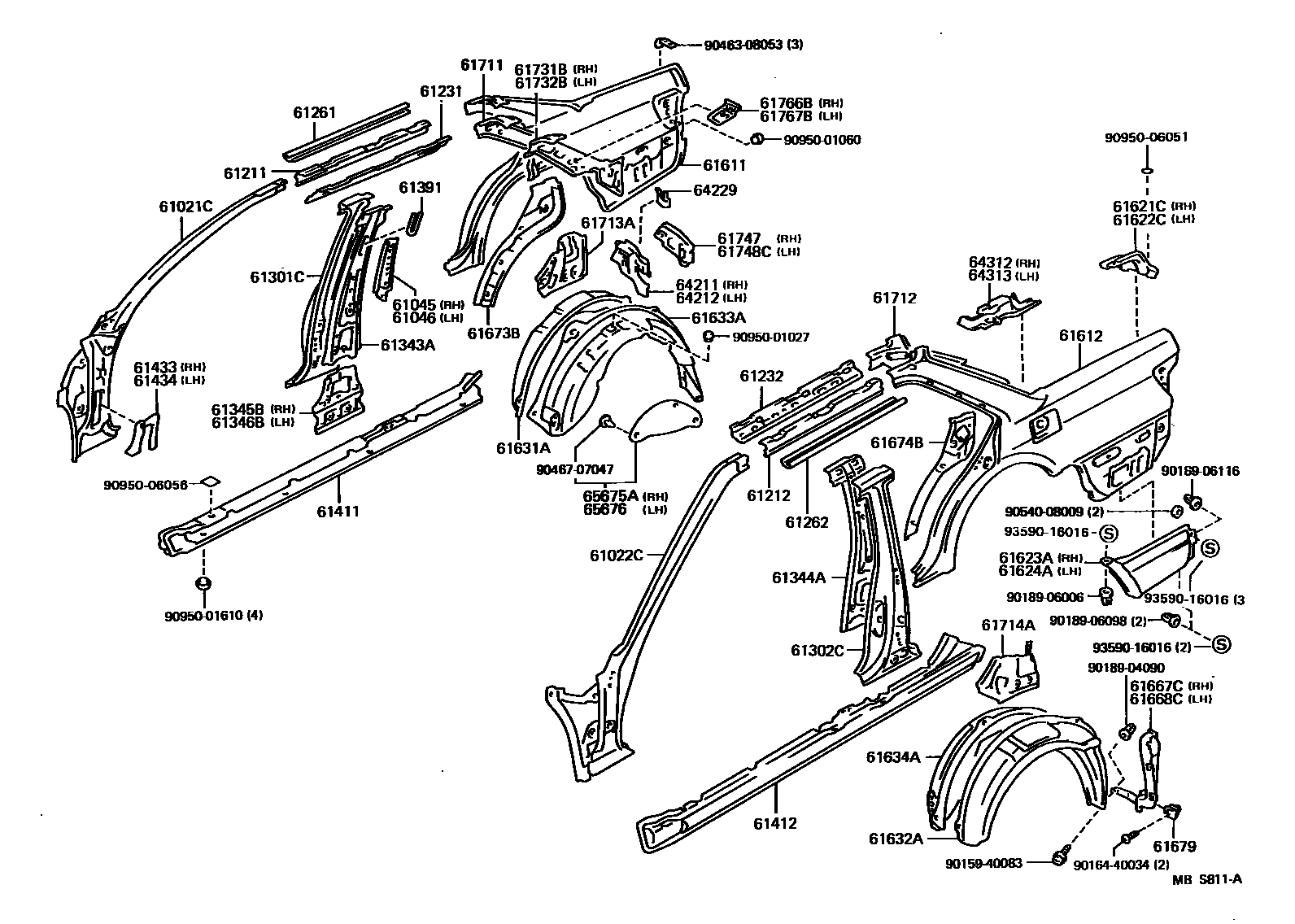

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-30160iGS130..SED..SDX;GS130..DLX,ROY,SALEX,STD;GS131,JZS13#,LS130,131,MS13#,UZS131,YS130..SED,WG198908-199110

sub61021-31020

main61021-30200iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-30160iGS130..SED..SDX;GS130..DLX,ROY,SALEX,STD;GS131,JZS13#,LS130,131,MS13#,UZS131,YS130..SED,WG198908-199110

sub61022-31020

main61022-30190iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61045REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH

main61045-30060iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

main61045-30070iGS130,131,LS130,MS135,137..HT198709-198809

main61045-30071iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198812-199110

61046REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH

main61046-30060iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

main61046-30070iGS130,131,LS130,MS135,137..HT198709-198809

main61046-30071iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198812-199110

61211RAIL, ROOF SIDE, OUTER RH

main61211-30140iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61211-30150iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main61211-91704iGS130,136,JZS130,LS130,136..V,WG198709-199110

61212RAIL, ROOF SIDE, OUTER LH

main61212-30140iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61212-30150iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main61212-91704iGS130,136,JZS130,LS130,136..V,WG198709-199110

61231RAIL, ROOF SIDE, INNER RH

main61231-30220iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61231-30230iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main61231-91705iGS130,136,JZS130,LS130,136..V,WG198709-199110

61232RAIL, ROOF SIDE, INNER LH

main61232-30220iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61232-30230iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main61232-91705iGS130,136,JZS130,LS130,136..V,WG198709-199110

61261CHANNEL, ROOF DRIP, RH

main61261-30130iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61261-30140iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main61261-91702iGS130,136,JZS130,LS130,136..V,WG198709-199110

61262CHANNEL, ROOF DRIP, LH

main61262-30130iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61262-30140iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main61262-91702iGS130,136,JZS130,LS130,136..V,WG198709-199110

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-30120iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

main61301-30140iGS130,131,LS130,MS135,137..HT198709-198908

main61301-30141iGS131,JZS131,LS131,MS13#,UZS131..HT198908-199110

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-30140iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

sub61302-30150

main61302-30160iGS130,131,LS130,MS135,137..HT198709-198908

main61302-30161iGS131,JZS131,LS131,MS13#,UZS131..HT198908-199110

61343APILLAR, CENTER BODY, INNER RH

main61343-30100iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

sub61343-30101

sub82817-3K170

main61343-30110iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61344APILLAR, CENTER BODY, INNER LH

main61344-30100iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

sub61344-30101

sub82817-3K180

main61344-30110iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-30080iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

main61345-30090iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-30080iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

main61346-30090iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61391SPACER, CENTER BODY PILLAR, INNER

main61391-30010×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

61411PANEL, ROCKER, OUTER RH

main61401-30200iGS130,YS130..DLX..(EFI,HTWC,LPEFI,LPG)198709-199110

sub61401-30220

main61401-30210iGS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

sub61401-30230

61412PANEL, ROCKER, OUTER LH

main61402-30200iGS130,YS130..DLX..(EFI,HTWC,LPEFI,LPG)198709-199110

sub61402-30220

main61402-30210iGS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

sub61402-30230

61433PANEL, ROCKER, INNER RH

main61433-30010iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

sub61433-30011

61434PANEL, ROCKER, INNER LH

main61434-30010iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

sub61434-30011

61611PANEL, QUARTER, RH

main61601-30917iYS130..DLX198908-199110

main61601-30918iGS130,LS130,MS130,YS130..DLX,STD198709-199110

main61601-30919iGS130,131,LS130,131..HT..NOB198709-199110

main61601-30920iGS131,JZS131,MS135,137..WIB198709-199110

main61601-30922iUZS131..WIB198908-199110

main61601-31900iJZS130199008-199110

main61601-31901iGS130,LS130..WG199008-199110

sub61601-31904

main61601-91712iGS136,LS136198709-198712

main61601-91713iGS130,LS130..WG198709-198712

main61601-91797iGS136,LS136198712-199110

sub61601-31902

main61601-91798iGS130,LS130..WG198712-199008

61612PANEL, QUARTER, LH

main61602-31900iJZS130199008-199110

main61602-31901iGS130,LS130..WG199008-199110

sub61602-31904

main61602-3A904iYS130..DLX198908-199110

main61602-3A905iGS130,LS130,MS130,YS130..DLX,STD198709-199110

main61602-3A906iGS130,131,LS130,131..HT..NOB198709-199110

main61602-3A907iGS131,JZS131,MS135,137..WIB198709-199110

main61602-3A911iUZS131..WIB198908-199110

main61602-91715iGS136,LS136198709-198712

main61602-91716iGS130,LS130..WG198709-198712

main61602-91794iGS136,LS136198712-199110

sub61602-31902

main61602-91795iGS130,LS130..WG198712-199008

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-30090iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61621-30100iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-30080iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61622-30100iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61623AEXTENSION, QUARTER PANEL, OUTER RH

main61623-30030iGS130,LS130,MS130,YS130..DLX,STD198709-199110

61624AEXTENSION, QUARTER PANEL, OUTER LH

main61624-30030iGS130,LS130,MS130,YS130..DLX,STD198709-199110

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-30100iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..(HT,SED)..NOB198709-199110

main61631-30110iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

main61631-91790iGS130,136,JZS130,LS130,136..V,WG198709-199110

sub61631-31900

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-30100iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..(HT,SED)..NOB198709-199110

main61632-30110iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

main61632-91790iGS130,136,JZS130,LS130,136..V,WG198709-199110

sub61632-31900

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-30913iGS130,LS130,MS130,YS130..HT,SED198709-199110

main61603-30914iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

sub61603-30915

main61633-91790iGS130,LS130..WG..(ROY,SALEX)198709-198908

main61633-91791iGS130..WG..SDX198709-199110

main61633-91792iGS136,LS136198709-199110

main61633-91793iGS130,JZS130..ROY198908-199110

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-30912iGS130,LS130,MS130,YS130..HT,SED198709-199110

main61604-30913iGS131,MS135,137198709-198908

main61604-30914iGS131,JZS131,LS131,MS13#,UZS131198908-199110

sub61604-30916

main61634-91790iGS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

sub61634-31902

main61634-91791iGS130..WG..SDX198709-199110

main61634-91792iGS136,LS136198709-199110

61667CSEAL, QAURTER PANEL, NO.1

main61667-30010iGS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB198908-198909

main61667-30020iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

main61667-30030iGS130,LS130,MS130,YS130..DLX,STD198709-199110

61668CSEAL, QUARTER PANEL, NO.2

main61668-30010iGS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB198908-198909

main61668-30020iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

main61668-30030iGS130,LS130,MS130,YS130..DLX,STD198709-199110

61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH

main61673-30010iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61673-30020iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main61673-91701iGS130,136,JZS130,LS130,136..V,WG198709-199110

61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH

main61674-30010iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61674-30020iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main61674-91701iGS130,136,JZS130,LS130,136..V,WG198709-199110

61679RETAINER, REAR WHEEL OPENING EXTENSION

main61679-30010×4iGS130,131,LS130,MS13#,YS130..(HT,SED)..NOB198709-198908

61711PANEL, ROOF SIDE, OUTER RH

main61711-30010iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61711-30020iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61712PANEL, ROOF SIDE, OUTER LH

main61712-30010iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61712-30020iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61713AEXTENSION, ROOF SIDE, OUTER RH

main61713-30010iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61713-30020iGS130,131,LS130,131..HT..NOB198709-199110

main61713-30030iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

61714AEXTENSION, ROOF SIDE, OUTER LH

main61714-30010iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61714-30020iGS130,131,LS130,131..HT..NOB198709-199110

main61714-30030iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

61731BPANEL, ROOF SIDE, INNER RH

main61705-91716iGS136,LS136198709-199110

main61705-91717iGS130,JZS130,LS130..WG198709-199110

main61731-30090iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61731-30100iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61732BPANEL, ROOF SIDE, INNER LH

main61706-91721iGS136,LS136198709-199110

main61706-91722iGS130,LS130..WG..(SALEX,SDX)198709-199110

main61706-91723iGS130,LS130..SALEX199008-199110

main61732-30090iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61732-30100iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-30030iGS131,JZS131,LS131,MS135,137,UZS131..SED198709-199110

main61747-30040iGS131,JZS131,LS131,MS135,137,UZS131..HT198709-199110

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-30030iGS131,JZS131,LS131,MS135,137,UZS131..SED198709-199110

main61748-30040iGS131,JZS131,LS131,MS135,137,UZS131..HT198709-199110

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-30070iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61766-30080iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-30060iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main61767-30070iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-30080iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main64211-30090iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-30070iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main64212-30080iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

64229STAY, REAR SEAT CUSHION SUPPORT

main64229-30010×2iGS130,LS130..SED..SALEX198709-198908

64312BRACKET, PACKAGE TRAY, RH

main64312-30901iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main64312-30902iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

64313BRACKET, PACKAGE TRAY, LH

main64313-30901iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main64313-30902iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

65675ASEAL, WHEEL HOUSE, FRONT RH

main65675-30010iMS137,UZS131198709-199110

main65675-30020iGS131,JZS131,LS131,MS135198709-199110

65676SEAL, WHEEL HOUSE, FRONT LH

main65676-30010iMS137,UZS131198709-199110

main65676-30020iGS131,JZS131,LS131,MS135198709-199110

9015940083

main90159-40083

9016440034

main90164-40034

9018904090

main90189-04090

9018906006

main90189-06006

9018906098

main90189-06098

9018906116

main90189-06116

9046308053

main90463-08053

9046707047

main90467-07047

9054008009

main90540-08009

9095001027

main90950-01027

9095001060

main90950-01060

9095001610

main90950-01610

9095006051

main90950-06051

9095006056

main90950-06056

9359016016

main93590-16016

68 parts on this diagram · 5 diagrams in section
