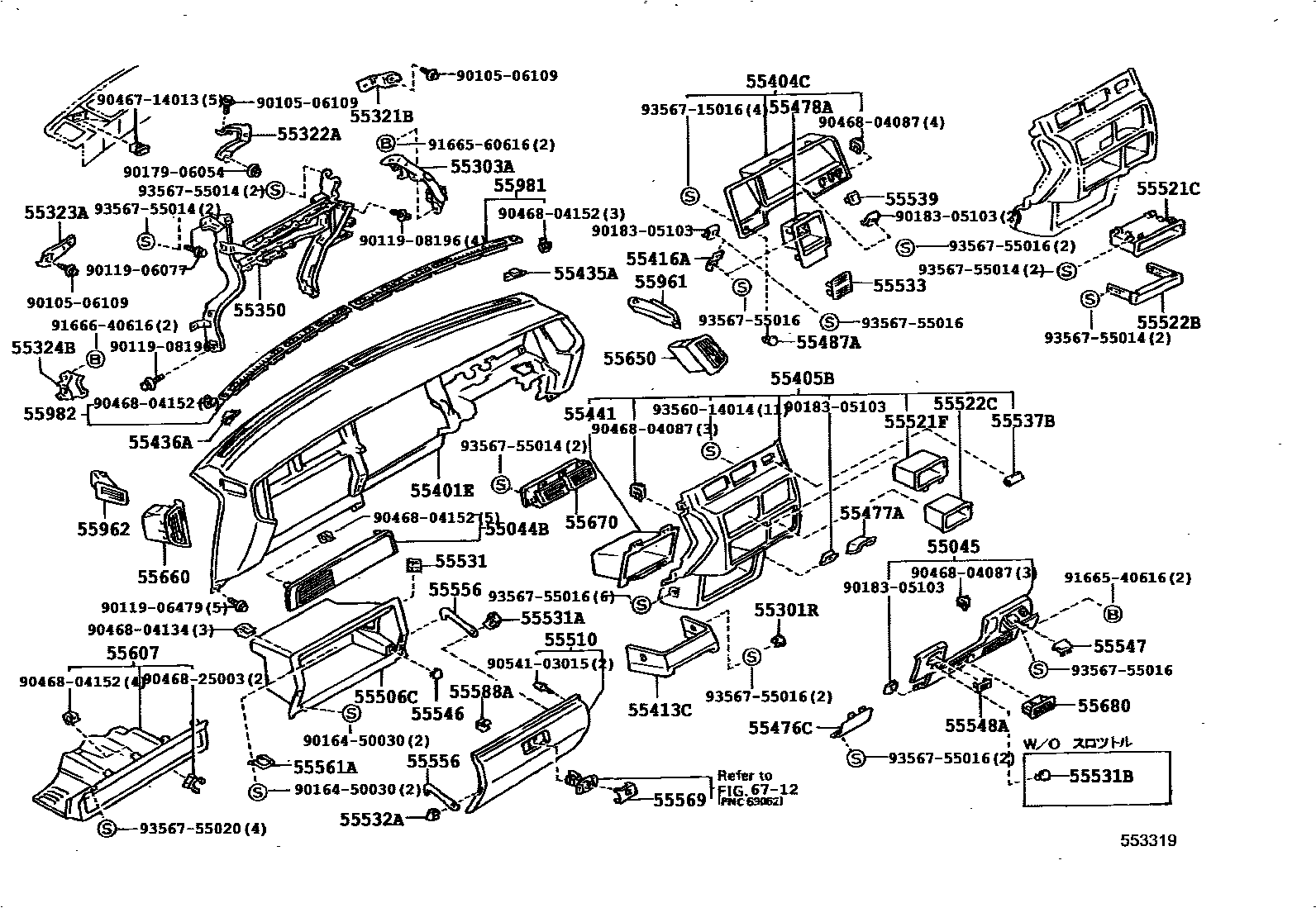

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0005 1

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-30130iGS136;GS130,LS13#,MS130,YS130..DLX,STD198709-198906

sub55044-30131

main55044-30131iGS136;GS130,LS13#,MS130,YS130..DLX,STD198906-198908

main55044-30140iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130,MS130..(SED,WG)..(ROY,SAL,SALEX,SDX)198709-198906

sub55044-30141

main55044-30141iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130,MS130..(SED,WG)..(ROY,SAL,SALEX,SDX)198906-198908

sub55044-30180

main55044-30180iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SALEX,SDX)198908-199110

main55044-30200iGS130..4H..SDX..TWLPG198908-199110

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-30050-02iGS130..4H..SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130..DLX..(DSL,EFI);GS136,LS136,MS130,YS130..DLX,SDX198709-199110

MAROON,TRIM3#

sub55045-30070

main55045-30050-04iGS130..4H..SDX;GS130,LS130..DLX,STD;GS130..ATM..SDX..TWLPG;GS136,LS136,MS130,YS130198709-199110

BLUE,TRIM8#

sub55045-30070

55301RPLUG, HOLE(FOR INSTRUMENT PANEL)

main90950-01581-04iGS130,136,LS130,136,YS130..(4H,4HC)..STD198709-199110

BLUE,TRIM8#

sub90950-01581

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-30080iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG198709-199110

main55303-30100iGS131,JZS131,LS131,MS135..HT..(4FC,5F)198709-199110

main55303-30110iGS131..HT..4FC..ROY..SPC;JZS131,MS135..4FC..(ROY,SALEX)..WIB198908-199110

main55303-30120iMS137,UZS131..4FC..NOB198908-199110

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-30050iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

main55321-30070iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-30010iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

main55322-30030iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-30010iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

main55323-30030iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-30010iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

55350BRACE ASSY, INSTRUMENT PANEL

main55350-30010iYS130;GS130,136,LS130,136..STD198709-199110

main55350-30020iGS131..HT..4HC..SPC;JZS131,MS135,137,UZS131..4HC;GS130,131,JZS130..(SED,WG)..ROY;JZS131,MS135,137,UZS131..4FC..NOB198709-199110

main55350-30020iGS131..4HC..SALEX;GS131,LS131..SED..(4FC,5F)..SALEX198908-199110

main55350-30030iGS130..4H..SDX;GS130,LS130..DLX;GS130..ATM..SDX..TWLPG;GS136,LS136,MS130..DLX,SDX198808-199110

main55350-30040iGS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130,131..(SED,WG)..(4FC,4HC,5F)..(SAL,SALEX,SDX)..(DSL,EFI,HTWC,TD,TDE)198808-199110

main55350-30060iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30300-02iGS131,MS135,137..4HC;GS130..(SAL,SALEX,SDX)..HTWC;GS130,131,MS135,137..SED..(4FC,4H)..(DLX,ROY,ROYG)..(HTWC,SPC,TWC);GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(DLX,R198709-198905

MAROON,TRIM3#

sub55401-30301

main55401-30300-04iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG198709-198905

BLUE,TRIM8#

sub55401-30301

main55401-30300-06iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)198709-198905

SABLE,TRIM4#

sub55401-30301

main55401-30301-02iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,YS130..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198905-199110

MAROON,TRIM3#

main55401-30301-04iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198905-199110

BLUE,TRIM8#

main55401-30301-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198905-199110

SABLE,TRIM4#

main55401-30320-02iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198905

MAROON,TRIM3#

sub55401-30321

main55401-30320-04iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198905

BLUE,TRIM8#

sub55401-30321

main55401-30320-06iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198905

SABLE,TRIM4#

sub55401-30321

main55401-30321-02iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198905-199110

MAROON,TRIM3#

main55401-30321-04iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198905-199110

BLUE,TRIM8#

main55401-30321-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198905-199110

SABLE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-30600iYS130;GS130,136,LS13#..STD198709-198906

sub55404-30601

main55404-30601iYS130;GS130,136,LS13#..STD198906-198908

main55404-30610iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-198906

sub55404-30611

main55404-30611iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198906-198908

main55404-30630iMS135,137..4FC..WIB198709-198801

sub55404-30631

main55404-30631iMS135,137..4FC..WIB198801-198906

sub55404-30632

main55404-30632iMS135,137..4FC..WIB198906-198908

main55404-30640iGS131,LS130..HT..(4FC,5F)..(ROY,SALEX)198709-198801

sub55404-30641

main55404-30641iGS131..SSL..SPC;GS131,LS130..HT..(4FC,5F)..(ROY,SALEX)198801-198906

sub55404-30642

main55404-30642iGS131,LS130..HT..(4FC,5F)..(ROY,SALEX,SSL)198906-198908

main55404-30650iGS130,131,LS130..SPE,SSL198709-198801

sub55404-30651

main55404-30651iGS130,LS130..SPE198801-198906

sub55404-30652

main55404-30652iGS130,LS130..SPE198906-198908

main55404-30660iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198908-199110

main55404-30680iMS135..SALEX;JZS131..4FC..WIB;GS131..HT..4FC..SPC198908-199110

main55404-30690iLS131,MS135..HT..(SALEX,SSL);GS131,JZS131..HT..(4FC,5F)..(ROY,SALEX,SSL)198908-199110

main55404-30700iGS131,LS131..SPE198908-199110

main55404-30710iYS130;GS130,136,LS130,136..STD198908-199110

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-30260-02iYS130..DLX198709-199110

MAROON,TRIM3#

main55405-30260-04iYS130;GS130,136,LS130,136..STD198709-199110

BLUE,TRIM8#

55413CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2

main55413-30080-04iGS130,136,LS130,136,YS130..(4H,4HC)..STD198709-199110

BLUE,TRIM8#

sub55413-30080

main55413-30090iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198906

sub55413-30091

main55413-30091iGS130,131,LS130,MS135,137..HT..(4FC,5F)198906-198908

main55413-30100iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)198908-199110

55416ARETAINER, METER HOOD, NO.1

main55416-30080iYS130;GS130,136,LS130,136..STD198709-199110

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-30130iGS130,131..(SPE,SSL)..(EFI,SPC)198709-199110

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-30070iGS13#,LS13#,MS130,YS130..DLX,SAL,SALEX,SDX,SPE,SSL,STD198709-199110

55441BOX, INSTRUMENT PANEL

main55440-30030-02iGS130,131,MS135,137..(SED,WG)..4FC..(SPC,TWC)198709-198908

MAROON,TRIM3#

sub55440-30030

main55440-30030-04iGS130,131,MS135,137..(SED,WG)..4FC..(SPC,TWC)198709-198908

BLUE,TRIM8#

sub55440-30030

main55440-30030-06iGS130,131,MS135,137..(SED,WG)..4FC..(SPC,TWC)198709-198908

SABLE,TRIM4#

sub55440-30030

main55440-30040iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198908

main55440-30050-02iGS131..4HC..SALEX;GS131,UZS131..SED..(4FC,5F)..(ROY,ROYG,SALEX);GS130,JZS13#,LS131,MS13#..(SED,WG)..4FC..(SPC,TDE,TWC)198908-199110

MAROON,TRIM3#

sub55440-30050

sub55440-30070

main55440-30050-04iGS131..4HC..SALEX;GS131,UZS131..SED..(4FC,5F)..(ROY,ROYG,SALEX);GS130,JZS13#,LS131,MS13#..(SED,WG)..4FC..(SPC,TDE,TWC)198908-199110

BLUE,TRIM8#

sub55440-30050

sub55440-30070

main55440-30050-06iGS131..4HC..SALEX;GS131,UZS131..SED..(4FC,5F)..(ROY,ROYG,SALEX);GS130,JZS13#,LS131,MS13#..(SED,WG)..4FC..(SPC,TDE,TWC)198908-199110

SABLE,TRIM4#

sub55440-30050

sub55440-30070

main55440-30070iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)198908-199110

main55441-30180-D0iYS130..DLX198709-199110

MAROON,MAROON,TRIM3#

sub55441-30180

main55441-30180-R8iYS130..DLX198709-199110

BLUE,BLUE,TRIM8#

sub55441-30180

55476CGARNISH, INSTRUMENT PANEL FINISH PLATE

main55476-30110-02iYS130..DLX;GS130,136,LS130,MS130..4H..(DLX,SDX)198709-199110

MAROON,TRIM3#

sub55476-43010

sub55476-30110

main55476-30110-04iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

BLUE,TRIM8#

sub55476-43010

sub55476-30110

main55476-30120-02iGS136,LS136..4FC,5F;GS130,LS130..5F..DLX..(DSL,EFI)198709-199110

MAROON,TRIM3#

sub55476-30120

main55476-30120-04iGS136,LS136,YS130..4FC,5F;GS130,LS130..5F..(DLX,STD)198709-199110

BLUE,TRIM8#

sub55476-30120

main55476-30130-02iGS130..ATM..DLX;GS130..ATM..SDX..TWLPG198709-199110

MAROON,TRIM3#

sub55476-30130

main55476-30130-04iMS130..ATM;GS130..ATM..DLX;GS130..ATM..SDX..TWLPG198709-199110

BLUE,TRIM8#

sub55476-30130

main55476-30140-02iGS130,131,LS130..(SED,WG)..5F..(SAL,SALEX,SDX)198709-199110

sub55476-30140

main55476-30140-04iGS130,131,LS130..(SED,WG)..5F..(SAL,SALEX,SDX)198709-199110

sub55476-30140

main55476-30140-06iGS130,131..SED..5F..(SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55476-30140

main55476-30150-02iGS130,131,LS130..(SED,WG)..5F..(SAL,SALEX,SDX)198709-199110

MAROON,TRIM3#

sub55476-30150

main55476-30150-04iGS130,131,LS130..(SED,WG)..5F..(SAL,SALEX,SDX)198709-199110

BLUE,TRIM8#

sub55476-30150

main55476-30150-06iGS130,131..SED..5F..(SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55476-30150

main55476-30180-02iGS130,131,LS130,131..HT..5F198709-199110

MAROON,TRIM3#

main55476-30180-04iGS130,131,LS130,131..HT..5F198709-199110

BLUE,TRIM8#

main55476-30180-06iGS130,131,LS130,131..HT..5F198709-199110

SABLE,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-30040iYS130;GS130,136,LS130,136..STD198709-199110

main55477-30050iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-199110

main55477-30060iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

55478ABEZEL, AUTO CLOCK HOLE

main55478-30070iYS130;GS130,136,LS13#..STD198803-198907

sub55478-30071

main55478-30071iYS130;GS130,136,LS13#..STD198907-198908

main55478-30080iYS130;GS130,136,LS130,136..STD198908-199110

55487ACOVER, RHEOSTAT SWITCH HOLE

main55619-14010-01iGS130,LS130..DLX;GS130..SDX..TWLPG;GS130,136,LS136..(V,WG)..(DLX,SDX)198908-199110

BLACK,TRIM3#,8#

sub55619-14010

main55619-14010-11iGS130..WG..SDX;GS136,LS136,MS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130..DLX..(DSL,EFI)198709-198908

BLACK,TRIM3#,8#

sub55619-14010

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-30060iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

main55506-30080iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-30220-02iYS130..DLX198709-199110

MAROON,TRIM3#

main55550-30220-04iYS130;GS130,136,LS130,136..STD198709-199110

BLUE,TRIM8#

main55550-30230-02iGS131,MS135,137..4HC;GS130..(SAL,SALEX,SDX)..HTWC;GS130,131,MS135,137..SED..(4FC,4H)..(DLX,ROY,ROYG)..(HTWC,SPC,TWC);GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL198709-199110

MAROON,TRIM3#

main55550-30230-04iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-199110

BLUE,TRIM8#

main55550-30230-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

main55550-30250-02iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

MAROON,TRIM3#

main55550-30250-04iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

BLUE,TRIM8#

main55550-30250-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

SABLE,TRIM4#

55521CCOVER, STEREO OPENING

main55521-16030iGS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SDX,SPE,STD)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC)198709-199110

55521FCOVER, STEREO OPENING, NO.2

main55521-30110-02iYS130..DLX198709-199110

MAR00N,TRIM3#

main55521-30110-04iYS130;GS130,136,LS130,136..STD198709-199110

BLUE,TRIM8#

55522BCOVER, RADIO TUNER OPENING

main55522-16030iGS130,136,LS130,136,YS130..STD198709-199110

main55522-30100iGS131,JZS131,MS135,137,UZS131..4HC..(ROY,ROYG)198709-199110

55522CCOVER, RADIO RECEIVER OPENING

main55522-30090-02iYS130..DLX198709-199110

MAROON,TRIM3#

main55522-30090-04iYS130;GS130,136,LS130,136..STD198709-199110

BLUE,TRIM8#

55531PANEL, GLOVE COMPARTMENT

main55531-30140iGS136,LS136..DLX,STD;GS130,LS130,YS130..STD198709-199110

55531APANEL, GLOVE COMPARTMENT, NO.1

main55531-30150iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

main55531-30160iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

55531BCOVER, CHOKE KNOB HOLE

main55531-30130-02iGS136,LS136..DLX,SDX;GS130..4H..SDX..HTWC;GS130,LS130..DLX..(DSL,HTWC)198709-199110

MAROON,TRIM3#

sub55531-30130

main55531-30130-14iGS136,LS136;GS130..WG..4H;GS130,LS130..(DLX,STD)..(DSL,EFI,HTWC)198709-199110

BLUE,TRIM8#

sub55531-30130

55532APANEL, GLOVE COMPARTMENT, NO.2

main55532-30050iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

55533COVER, AUTO CLOCK HOLE

main55533-30100iYS130..DLX198709-199110

55537BCOVER, REAR DEFOGGER SWITCH HOLE

main55538-20050iGS130..TWLPG;GS130,136,LS130,136,YS130..STD198709-199110

55539COVER, SPARE SWITCH HOLE

main55539-30070iMS137..4HC..WIB;GS131,MS135..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG198709-198906

sub55539-30071

main55539-30071iMS137..4HC..WIB;GS131,MS135..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG198906-198908

main55539-30090iMS137,UZS131..4HC..WIB;GS131,JZS131,MS135..4HC;GS131,JZS131,MS13#..SED..(4FC,5F);GS130,136,JZS130,LS13#,YS130..SED,V,WG198908-199110

55546COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE

main55546-30030iGS130..TWLPG;GS130,LS130..WG;GS130,LS130..STD;GS136,JZS130,LS136,MS130,YS130198709-199110

55547COVER, REMOTE CONTROL MIRROR HOLE

main74267-24010-22iMS130..SDX;GS130..4H..SDX;GS136,LS136..DLX;GS130..ATM..SDX..TWLPG198709-199110

MAROON,TRIM3#

sub74267-24010

main74267-24010-34iGS130..DLX198709-199110

DARK BLUE,TRIM8#

sub74267-24010

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-30070-02iGS130..4H..SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130..DLX..(DSL,EFI);GS136,LS136,MS130,YS130..DLX,SDX198709-199110

MAROON,TRIM3#

main55548-30070-04iGS130..4H..SDX;GS130,LS130..DLX,STD;GS130..ATM..SDX..TWLPG;GS136,LS136,MS130,YS130198709-199110

BLUE,TRIM8#

main55548-30080-02iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(4FC,4HC,5F)..(ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,S198709-199110

MAROON,TRIM3#

sub55548-30080

main55548-30080-04iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(4FC,4HC,5F)..(ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,S198709-199110

BLUE,TRIM8#

sub55548-30080

main55548-30080-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55548-30080

main55548-30090-02iJZS131,MS135..4FC..ROY..WIB;GS131,UZS131..HT..4FC..(ROY,ROYG)..(HTWC,SPC)198809-199110

main55548-30090-02iMS137..4FC..WIB198809-198908

main55548-30090-02iMS137..4FC..WIB198908-199110

main55548-30090-02iGS130,131,JZS131,LS130,131,MS135,137..HT..(4FC,5F)198709-199110

MAROON,TRIM3#

main55548-30090-02iMS137..4FC..WIB198709-198809

main55548-30090-04iMS137..4FC..WIB198709-198809

main55548-30090-04iMS137..4FC..WIB198809-198908

main55548-30090-04iGS130,131,JZS131,LS130,131,MS135,137..HT..(4FC,5F)198709-199110

BLUE,TRIM8#

main55548-30090-04iJZS131,MS135..4FC..ROY..WIB;GS131,UZS131..HT..4FC..(ROY,ROYG)..(HTWC,SPC)198809-199110

main55548-30090-04iMS137..4FC..WIB198908-199110

main55548-30090-06iMS137..4FC..WIB198809-198908

main55548-30090-06iJZS131,MS135..4FC..ROY..WIB;GS131,UZS131..HT..4FC..(ROY,ROYG)..(HTWC,SPC)198809-199110

main55548-30090-06iMS137..4FC..WIB198709-198809

main55548-30090-06iGS130,131,JZS131,LS130,131,MS135,137..HT..(4FC,5F)198709-199110

SABLE,TRIM4#

main55548-30090-06iMS137..4FC..WIB198908-199110

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-30050iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

main55556-30070iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198711

sub55556-30071

main55556-30071iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198712-199110

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-30030iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

main55561-30040iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-30010-02iGS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS13#,YS130..DLX,ROY,ROYG,SALEX,SDX,SPE,SS198709-199110

MAROON,TRIM3#

sub55569-30010

main55569-30010-04iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

BLUE,TRIM8#

sub55569-30010

main55569-30010-06iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL198709-199110

SABLE,TRIM4#

sub55569-30010

55588AHOLDER, GLOVE COMPARTMENT DOOR MIRROR, RH

main55588-30030iGS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-30050-02iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,YS130..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198709-199110

MAROON,TRIM3#

sub55607-30120

main55607-30050-04iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55607-30120

main55607-30050-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55607-30120

main55607-30070-02iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

MAROON,TRIM3#

sub55607-30070

main55607-30070-04iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55607-30070

main55607-30070-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

SABLE,TRIM4#

sub55607-30070

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30130-02iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-198710

MAROON,TRIM3#

sub55650-30131

main55650-30130-04iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG198709-198710

BLUE,TRIM8#

sub55650-30131

main55650-30130-06iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)198709-198710

SABLE,TRIM4#

sub55650-30131

main55650-30131-02iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,YS130..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198710-199110

MAROON,TRIM3#

sub55650-30131

main55650-30131-04iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198710-199110

BLUE,TRIM8#

sub55650-30131

main55650-30131-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198710-199110

SABLE,TRIM4#

sub55650-30131

main55650-30140iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198908

sub55650-30150

main55650-30150iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)198908-199110

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-30200-02iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-198710

MAROON,TRIM3#

sub55660-30201

main55660-30200-04iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG198709-198710

BLUE,TRIM8#

sub55660-30201

main55660-30200-06iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)198709-198710

SABLE,TRIM4#

sub55660-30201

main55660-30201-02iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,YS130..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198710-199110

MAROON,TRIM3#

sub55660-30201

main55660-30201-04iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198710-199110

BLUE,TRIM8#

sub55660-30201

main55660-30201-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198710-199110

SABLE,TRIM4#

sub55660-30201

main55660-30210iGS131..SSL..SPC;GS131,LS130,MS135,137..HT..(4FC,5F)..(ROY,ROYG,SALEX)198709-198908

sub55660-30230

main55660-30220iGS130,LS130..SPE198709-198908

sub55660-30240

main55660-30230iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)..(ROY,ROYG,SALEX,SSL)198908-199110

main55660-30240iGS131,LS131..SPE198908-199110

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55063-30020iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SALEX)198709-198908

sub55063-30050

main55063-30030iGS130,136,LS13#,MS130..DLX,SAL,SDX198709-198908

sub55063-30060

main55063-30050iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SALEX)198908-199110

main55063-30060iGS130,136,LS130,136..DLX,SDX198908-199110

sub55063-30070

main55670-30080-02iYS130..DLX198709-199110

MAROON,TRIM3#

sub55670-30080

main55670-30080-04iYS130;GS130,136,LS130,136..STD198709-199110

BLUE,TRIM8#

sub55670-30080

main55670-30120-02iGS131,JZS131,MS135,137,UZS131..HT..(4FC,5F)..(ROY,ROYG)198709-199110

MAROON,TRIM3#

main55670-30120-04iGS131,JZS131,MS135,137,UZS131..HT..(4FC,5F)..(ROY,ROYG)198709-199110

BLUE,TRIM8#

main55670-30120-06iGS131,JZS131,MS135,137,UZS131..HT..(4FC,5F)..(ROY,ROYG)198709-199110

SABLE,TRIM4#

main55670-30130-02iGS130,131,JZS131,LS130,131,MS135..HT..(4FC,5F)..(SALEX,SPE,SSL)198709-199110

MAROON,TRIM3#

main55670-30130-04iGS130,131,JZS131,LS130,131,MS135..HT..(4FC,5F)..(SALEX,SPE,SSL)198709-199110

BLUE,TRIM8#

main55670-30130-06iGS130,131,JZS131,LS130,131,MS135..HT..(4FC,5F)..(SALEX,SPE,SSL)198709-199110

SABLE,TRIM4#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-02iGS13#,LS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-198807

MAROON,TRIM3#

sub55680-14030

main55680-14030-14iGS13#,LS13#,MS13#,YS130198709-198807

DARK BLUE,TRIM8#

sub55680-14030

main55680-14030-16iGS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL198709-199110

SABLE,TRIM4#

sub55680-14030

main55680-14030-D0iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198908-199110

MAROON,TRIM3#

sub55680-14030

main55680-14030-J0iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

DARK BLUE,TRIM8#

sub55680-14030

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30060-02iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,YS130..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198709-199110

MAROON,TRIM3#

sub55961-30060

main55961-30060-04iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55961-30060

main55961-30060-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55961-30060

main55961-30070-02iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

MAROON,TRIM3#

sub55961-30070

main55961-30070-04iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55961-30070

main55961-30070-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

SABLE,TRIM4#

sub55961-30070

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30040-02iGS131,MS135,137..4HC;GS130..(SAL,SALEX,SDX)..HTWC;GS130,131,MS135,137..SED..(4FC,4H)..(DLX,ROY,ROYG)..(HTWC,SPC,TWC);GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(DLX,R198709-199110

MAROON,TRIM3#

sub55962-30040

main55962-30040-04iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55962-30040

main55962-30040-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55962-30040

main55962-30050-02iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

MAROON,TRIM3#

sub55962-30050

main55962-30050-04iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55962-30050

main55962-30050-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

SABLE,TRIM4#

sub55962-30050

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30020-02iGS131,MS135,137..4HC;GS130..(SAL,SALEX,SDX)..HTWC;GS130,131,MS135,137..SED..(4FC,4H)..(DLX,ROY,ROYG)..(HTWC,SPC,TWC);GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(DLX,R198709-199110

MAROON,TRIM3#

sub55981-30020

main55981-30020-04iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55981-30020

main55981-30020-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55981-30020

main55981-30030-02iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

MAROON,TRIM3#

sub55981-30030

main55981-30030-04iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55981-30030

main55981-30030-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

SABLE,TRIM4#

sub55981-30030

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-30020-02iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,YS130..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198709-199110

MAROON,TRIM3#

sub55982-30020

main55982-30020-04iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55982-30020

main55982-30020-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55982-30020

main55982-30030-02iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

MAROON,TRIM3#

sub55982-30030

main55982-30030-04iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

BLUE,TRIM8#

sub55982-30030

main55982-30030-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)198709-199110

SABLE,TRIM4#

sub55982-30030

6712

9010506109

main90105-06109

9011906077

main90119-06077

9011906479

main90119-06479

9011908196

main90119-08196

9016450030

main90164-50030

9017906054

main90179-06054

9018305103

main90183-05103

9046714013

main90467-14013

9046804087

main90468-04087

9046804134

main90468-04134

9046804152

main90468-04152

9046825003

main90468-25003

9054103015

main90541-03015

9166540616

main91665-40616

9166560616

main91665-60616

9166640616

main91666-40616

9356014014

main93560-14014

9356715016

main93567-15016

9356755014

main93567-55014

9356755016

main93567-55016

9356755020

main93567-55020

72 parts on this diagram · 4 diagrams in section
