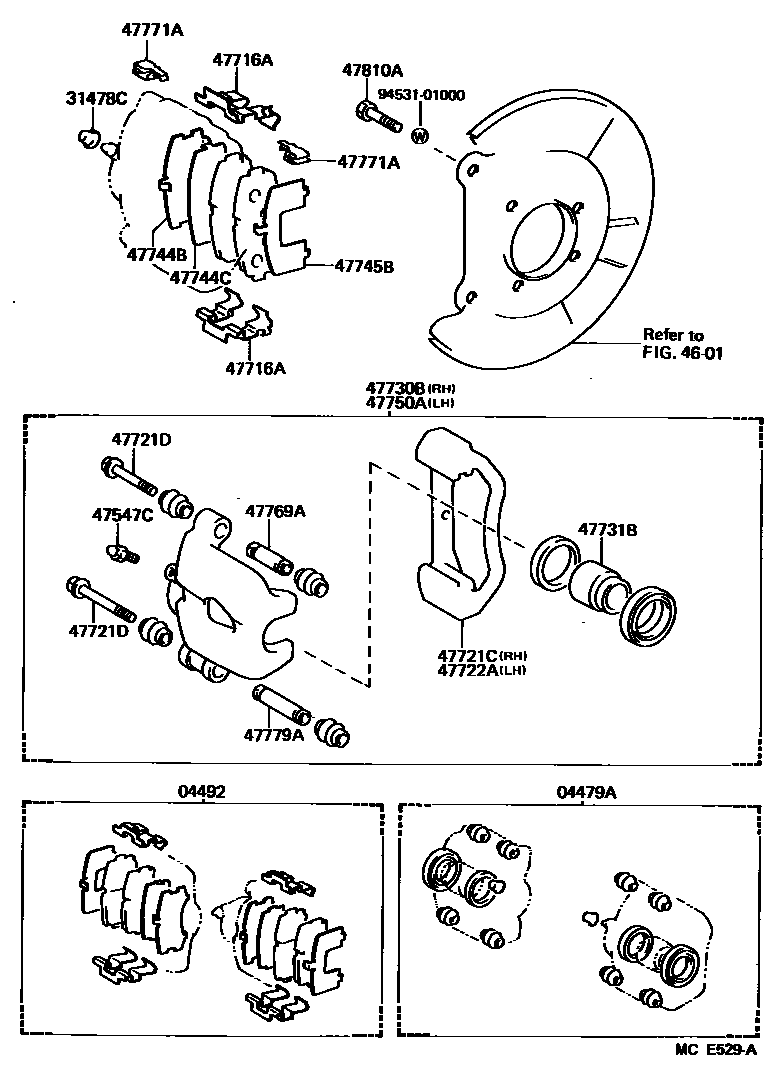

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30090iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main04479-30110iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

sub04479-30111

04492PAD KIT, DISC BRAKE, REAR

main04492-30110iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

sub04466-22110

main04492-30120iGS131,MS135,137198709-198908

sub04492-30130

main04492-30130iGS131,JZS131,LS131,MS13#,UZS131198908-199110

sub04466-30010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131198709-199110

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27040iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

main47547-35020iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-30040iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main47716-30050iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-30050iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main47721-30070iGS131,MS135,137198709-199110

main47721-30120iGS131,JZS131,MS13#,UZS131..WIB198908-199110

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-09005iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main90119-09006iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main90119-09013iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

main90119-09014iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-30050iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main47721-30070iGS131,MS135,137198709-199110

main47721-30120iGS131,JZS131,MS13#,UZS131..WIB198908-199110

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30150iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main47730-30170iGS131,MS135,137198709-199110

main47730-30220iGS131,JZS131,MS13#,UZS131..WIB198908-199110

47731BPISTON, REAR DISC BRAKE

main47731-30060iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main47731-30070iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-14110iGS131,MS135,137198709-198807

main47744-22091iGS131,JZS131,LS131,MS135,137,UZS131198807-199110

main47744-30130iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47742-30030iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main47744-14110iGS131,MS135,137198709-198807

main47744-22091iGS131,JZS131,LS131,MS135,137,UZS131198807-199110

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-14040iGS131,MS135,137198709-198807

main47745-22051iGS131,JZS131,LS131,MS135,137,UZS131198807-199110

main47745-40030iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30150iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main47750-30170iGS131,MS135,137198709-199110

main47750-30220iGS131,JZS131,MS13#,UZS131..WIB198908-199110

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-30030iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

main47769-40020iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22040iLS130..(HT,SED)..SALEX;GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)198709-199110

main47771-30060iGS131,LS131,MS13#,UZS131198908-198911

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-20010iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

main47779-40020iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-10020iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main90119-10379iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

9453101000

main94531-01000

20 parts on this diagram · 3 diagrams in section
