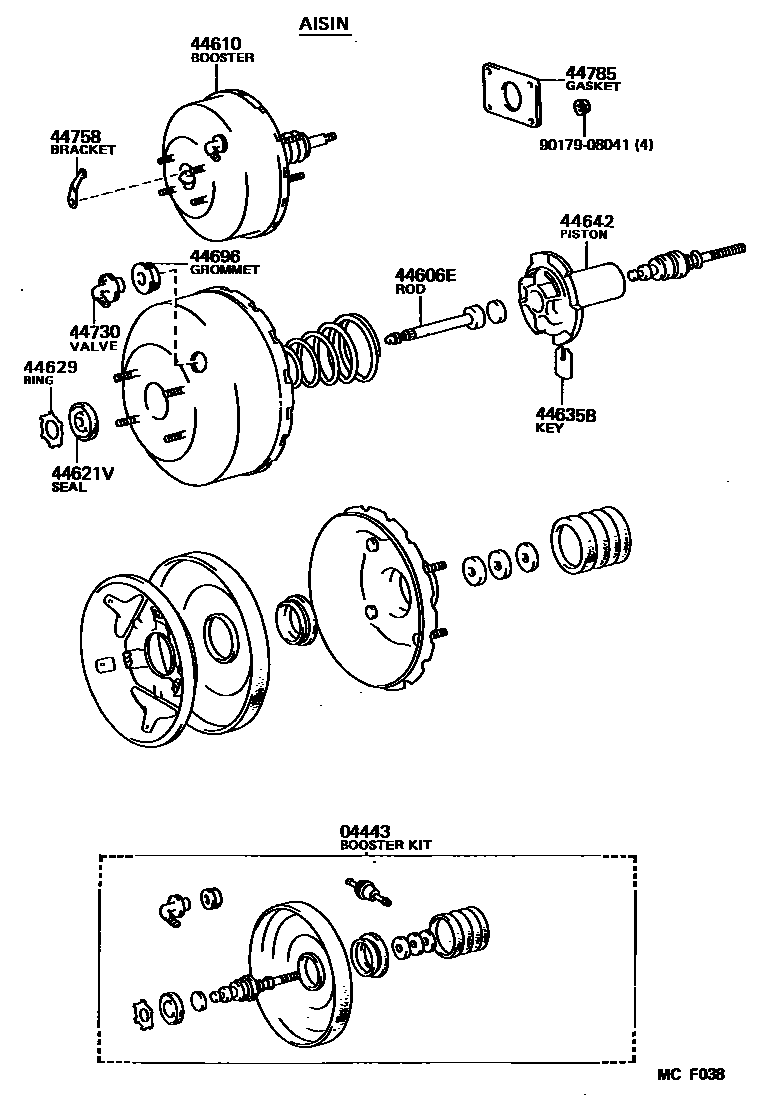

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

04443BOOSTER KIT, BRAKE

main04443-30500iGS131,MS135,137..(ROY,ROYG)..NOB198805-198809

main04443-30540iGS130,YS130..MTM..STD..(EFI,LPEFI,LPG)198709-199008

main04443-30550iLS130..STD198709-198908

main04443-30551iLS130..STD198908-199110

main04443-30560iYS130..MTM..STD198709-199008

main04443-30570iLS136;LS130..DLX,SALEX,SDX,SPE,SSL198709-198908

main04443-30571iLS136;LS130,131..DLX,SALEX,SDX,SPE,SSL198908-199110

main04443-30580iGS131,MS135,137..SPC,TWC198709-198805

main04443-30590iGS130,131..(HT,SED)..(SAL,SALEX,SSL)..EFI198709-198908

main04443-30600iMS135,137;GS130,131..SPC198809-198908

main04443-30620iGS130..HTWC198908-199110

AISIN

main04443-30630iJZS13#,MS135;GS130,131..SPC198908-199110

main04443-30640iMS137,UZS131198908-199110

main04443-30650iGS131..HTWC,TWC198908-199110

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iGS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG198709-199008

main44606-20800iGS130,131,JZS13#,MS135,137,UZS131..HTWC,SPC,TWC198709-199110

44610BOOSTER ASSY, BRAKE

main44610-30620iGS130,YS130..MTM..STD..(EFI,LPEFI,LPG)198709-199110

main44610-30630iLS130..STD198709-199110

main44610-30640iYS130..MTM..STD198709-199008

main44610-30650iLS130..4H..STD198709-199110

main44610-30660iGS130,131..(HT,SED)..(ROY,SAL,SALEX,SSL)..(HTWC,TWC)198809-198908

main44610-30661iGS130,131..HTWC,TWC198908-199110

main44610-30670iGS131,MS135,137..(ROY,ROYG)..NOB198805-198809

main44610-30671iGS131..HTWC,TWC198908-199110

main44610-30720iMS135,137;GS130,131..SPC198809-198908

main44610-30721iJZS13#,MS135;GS130,131..SPC198908-199110

main44610-30750iMS137,UZS131198908-199110

main44610-30770iYS130..MTM..STD199008-199110

44621VSEAL, BOOSTER BODY

main44621-14030iGS130,131,JZS13#,MS135,137,UZS131..HTWC,SPC,TWC198709-199110

main44621-28120iGS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG198709-199008

44629RING, CIRCULAR INTERNAL

main44628-28120iGS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG198709-199008

main44628-60010iGS130,131,JZS13#,MS135,137,UZS131..HTWC,SPC,TWC198709-199110

44635BKEY, VALVE STOPPER

main44635-12630iGS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG198709-199008

main44635-20800iGS130,131,MS135,137..SPC,TWC198709-198809

44642PISTON, BRAKE BOOSTER

main44642-20800iGS130,131,JZS13#,MS13#,UZS131..HTWC,SPC,TWC199002-199110

main44642-27150iLS130..STD198709-199110

main44642-32030iLS130..4H..STD198709-199110

44696GROMMET, CHECK VALVE

main90480-24015iGS131..HTWC,TWC199101-199110

JKC BOOSTER

main90480-24439iGS136,MS130;YS130..4H..DLX;GS130..DLX,ROY,SDX,SPE;GS131,YS130..ATM..(DLX,SSL,STD)..(LPG,SPC);GS130,MS135,137..(HT,WG)..(ROY,ROYG,SALEX)..(EFI,TWC)198805-198809

AISIN BOOSTER

main90480-24517iGS130,YS130..MTM..STD..(EFI,LPEFI,LPG)198709-199110

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iGS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)198709-198805

AISIN BOOSTER

main44730-14060iGS131..ROY..SPC;GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)..(EFI,TWC)..NOB198805-198809

JKC BOOSTER

main44730-28010iGS131..HTWC,TWC199101-199110

JKC BOOSTER

44758BRACKET, VACUUM CHECK VALVE

main44758-30100iGS130,131,JZS13#,MS135,137,UZS131..HTWC,SPC,TWC198709-199110

main44758-30120iGS136;GS130,131,MS130,YS130..EFI,LPEFI,LPG,TWLPG198709-199110

44785GASKET, BRAKE BOOSTER

main44785-30020iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

9017908041

main90179-08041

12 parts on this diagram · 15 diagrams in section
