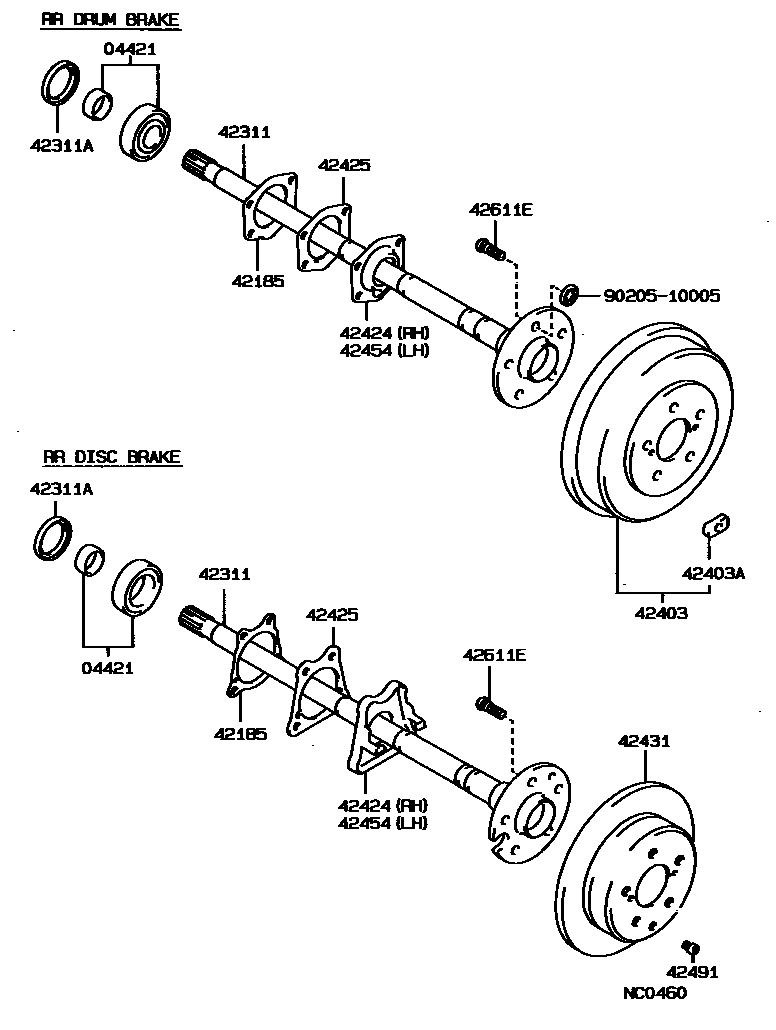

REAR AXLE SHAFT & HUB

0001 1 0002 1 0004 1 0005 1 0006 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30030iGS130..4HC..(DLX,SDX)198709-199110

sub04421-30031

main04421-30051iGS130,136,LS13#..V,WG198709-199110

main04421-30060iGS130..SED..(SAL,SALEX)198709-198908

42185GASKET, REAR AXLE HOUSING END

main42185-22030iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

main42185-30061iGS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD198709-199110

main42185-30090iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

42311SHAFT, REAR AXLE

main42311-30070iGS130,LS130,YS130..SED198709-199001

sub42311-30071

main42311-30071iGS130,LS130,YS130..SED199001-199110

main42311-30080iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-199001

sub42311-30081

main42311-30100iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

main42311-31020iGS130,136,LS130,136..V,WG198709-199001

sub42311-31021

main42311-31021iGS130,136,JZS130,LS130,136..V,WG199001-199110

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-43003iGS131,JZS131,LS131,MS135,137,UZS131198709-199110

main90311-52059iGS130,LS130,MS130,YS130..HT,SED198709-199110

main90311-58118iGS130,136,JZS130,LS130,136..V,WG198709-199110

42403DRUM SUB-ASSY, REAR BRAKE

main42431-30111iGS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD198709-199110

sub42431-30110

sub42431-30230

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01100iGS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD198709-199110

main90937-01117iGS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD198709-199110

main90937-01118iGS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD198709-199110

main90937-01119iGS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD198709-199110

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42405-30010iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main42424-30040iGS130,LS130,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,SSL,STD)198709-199110

main42424-31010iGS130,136,JZS130,LS130,136..V,WG198709-199110

42425GASKET, REAR AXLE BEARING RETAINER

main42425-30031iGS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD198709-199110

main42425-30040iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

42431DISC, REAR

main42431-30100iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main42431-30120iGS131,MS135,137198709-199110

sub42431-30220

main42431-30130iGS131,JZS131,MS13#,UZS131..WIB198908-199110

sub42431-30210

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42406-30010iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main42424-30040iGS130,LS130,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,SSL,STD)198709-199110

main42424-31010iGS130,136,JZS130,LS130,136..V,WG198709-199110

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iGS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131198709-199110

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

9020510005

main90205-10005

13 parts on this diagram · 5 diagrams in section
