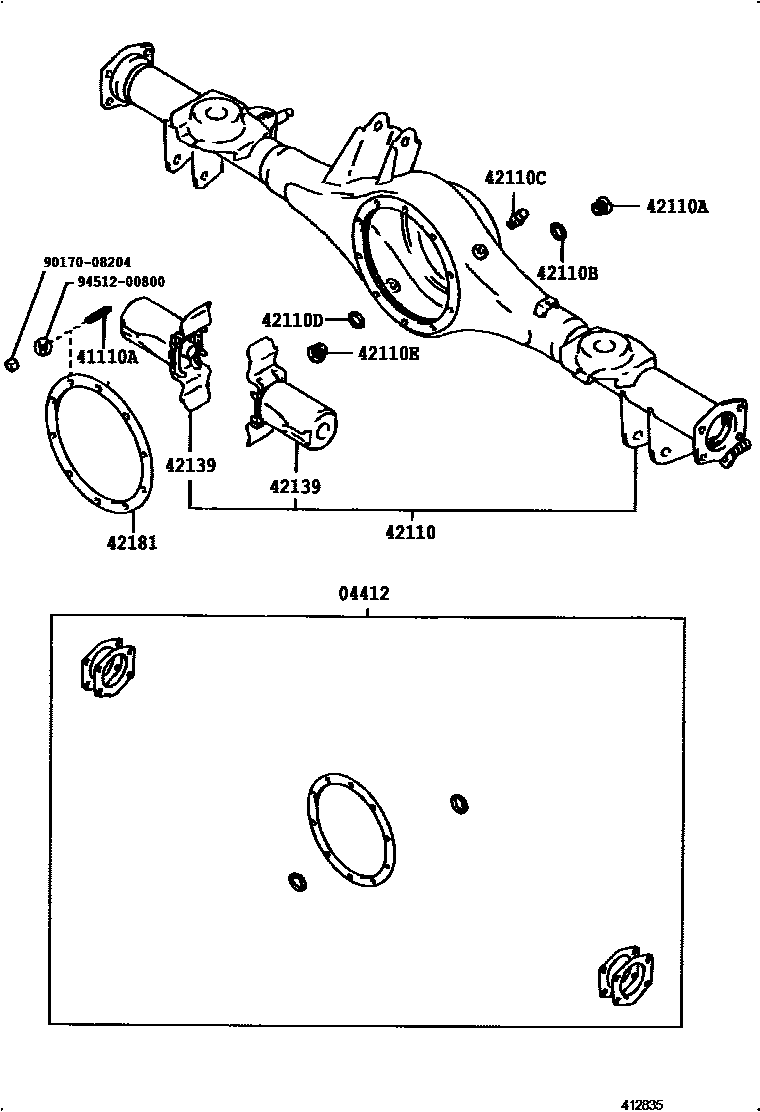

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-30020iGS130,LS130..WG..SALEX..(EFI,TDE);GS130..MTM..(DLX,SDX,SPE,STD)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,ROY,SDX,SPE,SSL,STD)..(DSL,EFI,LPG,SPC,TD,TDE)198709-199110

sub04412-30060

main04412-30030iGS130..5F..(SAL,SALEX)..HTWC;GS130,LS130..(HT,SED)..(SAL,SALEX)..(EFI,TDE)198709-198908

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14122iYS130..4H198709-199110

main41110-20230iYS130..4HC198709-199110

main41110-28070iGS130,JZS130,LS130..SPC,TDE,TWC198809-199110

main41110-28080iGS130..SPC198709-198809

main41110-30160iLS136..STD;GS130,136,MS130..MTM..(EFI,LPG)198709-198908

sub41110-30490

main41110-30170iGS130..ATM..HTWC198809-199110

main41110-30180iLS136,YS130..4FC,4H,5F198709-199110

main41110-30320iLS130..TD198709-198908

main41110-30330iLS130..DSL198709-199110

main41110-30380iGS131..5F198709-198908

sub41110-30520

main41110-30390iGS131..ATM..HTWC198809-198908

sub41110-30510

main41110-30400iGS131..ATM..(EFI,TWC)198709-198809

sub41110-30500

main41110-30440iMS13#198709-199110

sub41110-30621

main41110-30450iJZS131;GS131..SPC198709-199110

sub41110-30451

main41110-30460iGS130..ATM..EFI198709-198809

sub41110-30530

main41110-30490iGS130..ATM..TWLPG;GS130,136..MTM..(HTWC,TWLPG)198809-199110

main41110-30500iGS131..ATM..(EFI,TWC)198809-199110

main41110-30510iGS131..ATM..HTWC198908-199110

main41110-30520iGS131..5F198908-199110

main41110-30530iGS130..ATM..EFI198809-198908

sub41110-28310

main41110-30540iUZS131198908-199110

sub41110-30541

main41110-30550iLS131..TD198908-199110

main41110-30560iLS131..TDE198908-199110

main41110-30570iLS130..4H198908-199110

main41110-30600iLS130..TD198908-199110

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iGS130,136,LS13#,MS130,YS130198709-199110

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-30230iLS130..DLX,SDX,SPE,SSL;GS130..(HT,SED)..(DLX,SDX,SPE,STD)..(EFI,HTWC)198709-199110

main42110-30240iGS130,LS130..(HT,SED)..(SAL,SALEX)198709-198908

main42110-30250iLS130..STD;GS130,MS130,YS130..LPEFI,LPG,TWLPG198709-199110

main42110-30260iGS130,JZS130,LS130..WG198709-199110

main42110-31110iGS136,LS136198709-199110

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iGS130,136,JZS130,LS130,136,MS130,YS130198709-199110

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iGS130,136,JZS130,LS130,136,MS130,YS130198709-199110

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iGS130,136,JZS130,LS130,136,MS130,YS130198709-199110

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iGS130,136,JZS130,LS130,136,MS130,YS130198709-199110

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18030iGS130,MS130,YS130..LPEFI,LPG,TWLPG198811-199110

main90341-18057iGS130,136,JZS130,LS130,136..DSL,EFI,HTWC,SPC,TD,TDE,TWC198709-199110

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-30010iGS130,JZS130,LS130,MS130,YS130198709-199110

main42139-30020iGS136,LS136198709-199110

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30020iGS130,136,JZS130,LS130,136,MS130,YS130198709-199110

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 4 diagrams in section
