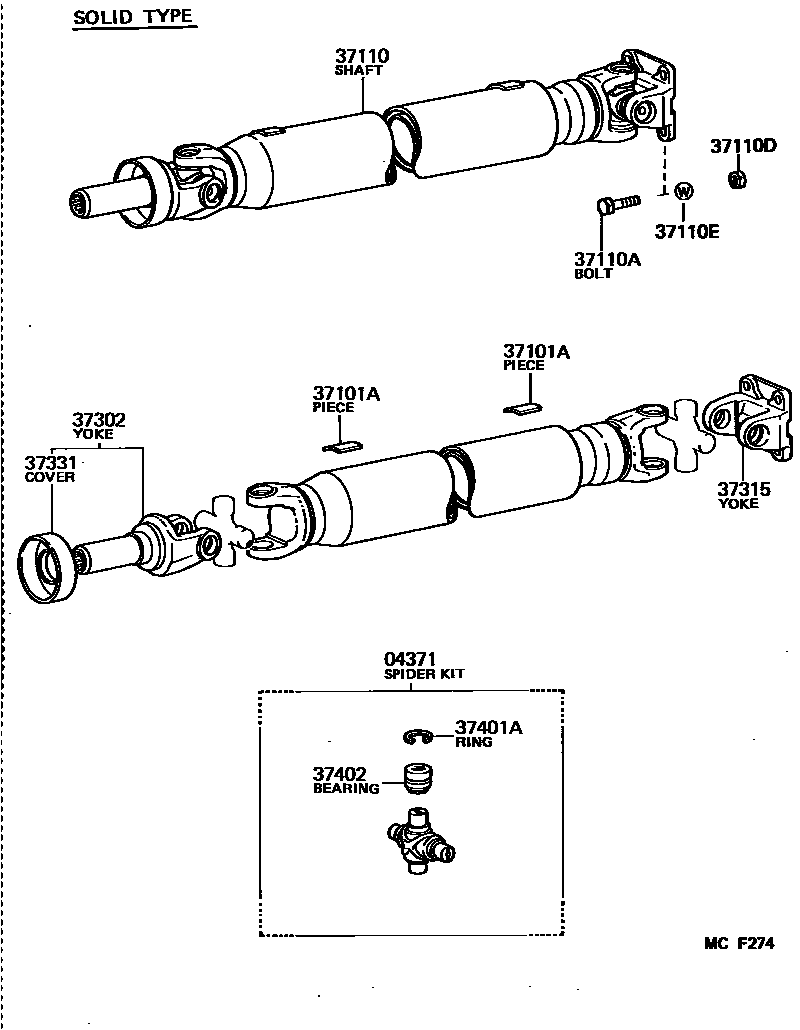

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1SOLID TYPE,2 ������ 0002 1SOLID TYPE,3 ������ 0004 1SHELL TYPE 0005 1SOLID TYPE 0007 1SHELL TYPE

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-22010iYS130..4H..STD198908-199110

main04371-22010iLS130..4H..STD198709-198908

main04371-22020iLS130..4H..STD198709-198908

main04371-22020iYS130..5F;MS130,YS130..4H..(DLX,SDX)198709-198908

RED PAINTED

main04371-30020iMS135,137;GS130,131..SPC198709-198802

sub04371-30021

main04371-30021iJZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE198802-199110

sub04371-30040

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iGS13#,LS13#,MS13#,YS130198709-199110

main90937-01147iGS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130198709-199110

main90937-01148iGS13#,LS13#,MS13#,YS130198709-199110

main90937-01149iGS13#,LS13#,MS13#,YS130198709-199110

main90937-01150iGS13#,JZS130,LS13#,MS13#,YS130198709-199110

main90937-01151iGS13#,JZS130,LS13#,MS13#,YS130198709-199110

main90937-01152iGS13#,LS13#,MS13#,YS130198709-199110

main90937-01311iGS13#,LS13#,MS13#,YS130198709-199110

main90937-01312iGS13#,LS13#,MS13#,YS130198709-199110

main90937-01313iGS13#,JZS130,LS13#,MS13#,YS130198709-199110

main90937-01314iGS13#,LS13#,MS13#,YS130198709-199110

main90937-01342iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01343iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01344iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01345iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01346iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01347iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01348iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01349iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01350iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01351iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01352iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01353iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01355iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01356iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01357iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01358iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01359iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01360iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01361iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01362iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01363iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01365iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01385iGS131..SPC;JZS131,MS13#,UZS131198908-199110

main90937-01386iGS131..SPC;JZS131,MS13#,UZS131198908-199110

37110SHAFT ASSY, PROPELLER

main37110-30070iGS13#,LS13#..DSL,EFI,TD,TDE,TWC198709-198806

sub37110-30071

main37110-30071iGS13#,LS130,136..DSL,HTWC,TWC198806-199110

main37110-30080iLS130..4H..STD198709-198908

main37110-30080iYS130..4HC,5F;YS130..4H..DLX;GS130,MS130..LPG,TWLPG198709-199110

main37110-30080iLS130..4H..STD198908-199110

main37110-30090iYS130..4H..STD198709-199110

main37110-30100iGS130..SPC198709-199110

main37110-30110iMS135,137;GS131..SSL..SPC198709-198908

main37110-30110iMS13#;GS131..SPC198908-199110

SOLID TYPE

main37110-30130iGS130,JZS130..ROY198809-199110

main37110-30160iJZS131,UZS131198908-199110

SHEEL TYPE

sub37110-30161

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iGS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC198709-199110

main90105-10085iMS135,137;GS130,131..SPC198709-199110

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iGS13#,LS130,136,YS130..DSL,HTWC,LPEFI,TWC,TWLPG198709-199110

main90179-10059iMS135,137;GS130,131..SPC198709-199110

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iJZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE198709-199110

sub90560-10H00

main94512-00800iGS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC198709-199110

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-20040iLS130..4H..STD;GS130,YS130..LPEFI,TWLPG198908-199110

main37302-20040iMS130,YS130198709-198908

main37302-24010iMS135,137;GS130,131..SPC198712-199110

main37302-30030iMS135,137;GS130,131..SPC198709-198712

sub37302-24010

main37302-35030iLS130,131..TD,TDE198908-199110

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iLS130..4H..STD198709-198908

main37315-20020iLS130..4H..STD;GS130,YS130..LPEFI,TWLPG198908-199110

main37315-35040iMS135,137;GS130,131..SPC198709-199110

37331COVER, SLIDING SHAFT DUST

main37331-24010iMS135,137;GS130,131..SPC198711-199110

main37331-30010iGS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG198709-199110

main37331-40010iMS135,137;GS130,131..SPC198709-198711

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26038iGS131..SSL..SPC;GS130,MS135,137..SPC,TWC198712-199110

main90520-26040iGS131..SSL..SPC;GS130,MS135,137..SPC,TWC198712-199110

main90520-26041iGS131..SSL..SPC;GS130,MS135,137..SPC,TWC198712-199110

main90520-26042iMS135,137;GS130,131..SPC198712-199110

main90520-26043iGS131..SSL..SPC;GS130,MS135,137..SPC,TWC198712-199110

main90520-26044iMS135,137;GS130,131..SPC198712-199110

main90520-26045iJZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE198712-199110

main90520-26046iJZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE198712-199110

main90520-26233iMS135,137;GS130,131..SPC198709-198712

main90520-26234iMS135,137;GS130,131..SPC198709-198712

main90520-26235iMS135,137;GS130,131..SPC198709-198712

main90521-29070iYS130..4H..STD198709-199110

main90521-29070iYS130..4H..STD198709-198908

main90521-29071iGS130..TWLPG;YS130..4HC,5F;LS130..4H..STD;YS130..4H..DLX198709-199110

main90521-29071iYS130..4H..STD198709-198908

main90521-29072iYS130..4H..STD198709-198908

main90521-29072iYS130..4H..STD198709-199110

main90521-29073iYS130..4H..STD198709-199110

main90521-29073iLS130..4H..STD198709-198908

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22010iMS130;YS130..4HC,5F;YS130..4H..DLX198709-198908

main37402-22010iGS130..TWLPG;YS130..4HC,5F;LS130..4H..STD;YS130..4H..DLX198908-199110

main37402-22020iGS130..TWLPG;YS130..4HC,5F;LS130..4H..STD;YS130..4H..DLX198709-199110

RED PAINTED

main37402-22020iLS130..4H..STD198709-198908

main37402-30010iMS135,137;GS130,131..SPC198709-198712

sub37402-30011

sub90520-26044

main37402-30011iMS135,137;GS130,131..SPC198712-199110

sub04371-60070

sub04371-60100

main37402-30020iMS135,137;GS130,131..SPC198709-198712

RED PAINTED

sub37402-30021

sub90520-26044

main37402-30021iMS135,137;GS130,131..SPC198712-199110

RED PAINTED

sub04371-60070

sub04371-60100

11 parts on this diagram · 5 diagrams in section
