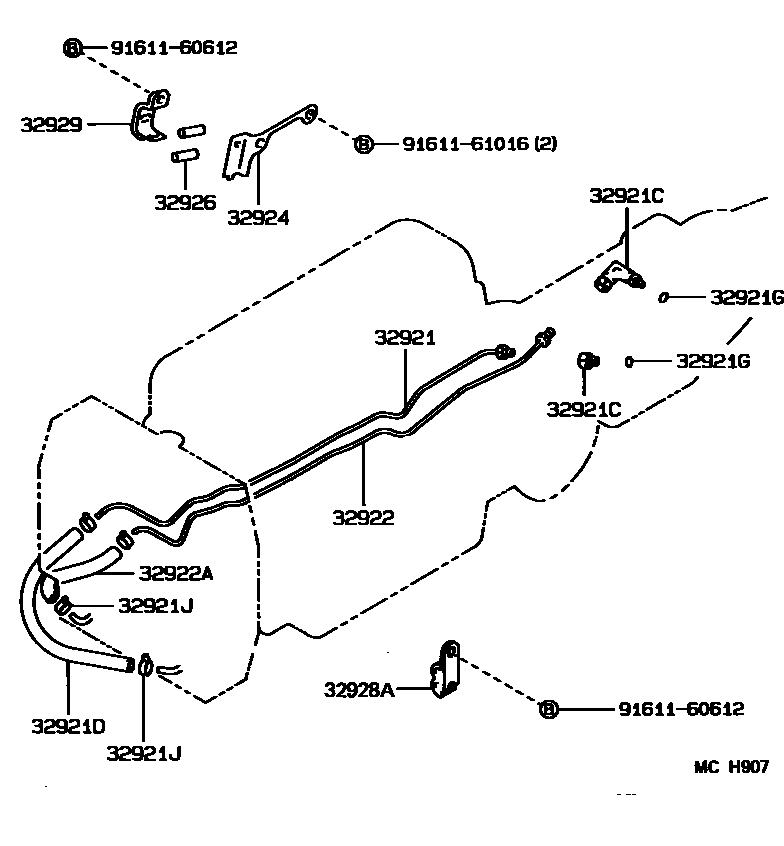

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-30350iGS130,131..ATM..(EFI,TWC)198709-199110

main32921-30380iGS130,131..ATM..HTWC198809-199110

main32921-30410iYS130..4HC198709-199012

main32921-30411iYS130..4HC199012-199110

main32921-30420iGS130,131..SPC198709-199110

main32921-30430iMS135,137198709-199110

main32921-30440iMS130..ATM198709-198908

main32921-30450iLS130..TDE198709-198908

main32921-30460iLS136..4FC198709-199110

main32921-30470iUZS131198908-199110

main32921-30480iGS130..ATM..TWLPG198908-199110

main32921-30490iLS130,131..TDE198908-199110

main32921-30500iJZS13#199008-199110

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGS130,131,LS136..ATM..(DSL,HTWC,TWC)199003-199110

INLET

main90404-16020iGS130,131..SPC;MS135,137,UZS131198709-199007

INLET

main90404-16021iLS130,131..TDE198908-199110

OUTLET

main90404-16029iGS130,131..SPC;JZS13#,MS13#,UZS131199007-199110

INLET

main90407-14003iGS130,131,LS136..ATM..(DSL,HTWC,TWC)198908-199003

OUTLET

main90407-16009iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

OUTLET

main90407-16010iLS130,131..TDE198908-199110

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-22130iLS13#..4FC198709-198907

main32941-26061iYS130..4HC199012-199110

main32941-28120iLS136..4FC198908-199110

sub32941-28121

main32941-30040iGS130,131..SPC198709-198907

main32941-30041iGS130,131..SPC198907-199110

main32941-30060iLS13#..4FC198907-198908

main32941-30100iUZS131198908-199110

main32941-30140iJZS13#199008-199110

main32941-35121iLS130,131..TDE198908-199110

main32942-30050iMS135,137198709-198907

main32942-30051iMS135,137198907-199110

main90445-15014iMS130..ATM198709-198907

main90445-15024iGS130,131..ATM..(EFI,HTWC,TWC)198709-198907

main90445-15032iYS130..4HC198709-198907

main90445-15045iMS130..ATM198907-198908

main90445-15047iYS130..4HC198907-199012

main90445-15048iGS130,131..ATM..(EFI,HTWC,TWC)198907-198908

main90445-15051iGS130..ATM..TWLPG198908-199110

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main90301-11006×2iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4iGS131,LS136..ATM198908-199110

sub96135-51300

main90467-16013×4iLS130,131..TDE198908-199110

sub90467-16022

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30350iGS130,131..ATM..(EFI,TWC)198709-199110

main32922-30380iGS130,131..ATM..HTWC198809-199110

main32922-30410iYS130..4HC198709-199012

main32922-30411iYS130..4HC199012-199110

main32922-30420iGS130,131..SPC198709-199110

main32922-30430iMS135,137198709-199110

main32922-30440iMS130..ATM198709-198908

main32922-30450iLS130..TDE198709-198908

main32922-30460iLS136..4FC198709-199110

main32922-30470iUZS131198908-199110

main32922-30480iGS130..ATM..TWLPG198908-199012

main32922-30481iGS130..ATM..TWLPG199012-199110

main32922-30490iLS130,131..TDE198908-199110

main32922-30500iJZS13#199008-199110

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22111iLS136..4FC198908-199110

main32941-22221iGS130..ATM..TWLPG199012-199110

main32941-26060iYS130..4HC198709-198907

main32941-26061iYS130..4HC198907-199012

main32942-22060iMS130..ATM198709-198907

main32942-22061iMS130..ATM198907-198908

main32942-30050iGS130,131,LS13#..ATM..(DSL,EFI,HTWC,TDE,TWC)198709-198907

main32942-30051iGS130..ATM..(EFI,HTWC)198907-198908

main90445-15014iMS135,137198709-198906

main90445-15015iGS130,131..SPC198709-198907

main90445-15045iJZS13#,MS135,137,UZS131198907-199110

main90445-15046iGS130,131..SPC198907-199110

main90445-15054iYS130..4HC199012-199110

main90445-17103iLS130,131..TDE198908-199110

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-22040iMS130..ATM198709-198908

main32924-30090iLS13#..4FC198709-199110

main32924-30100iGS130,131..ATM198709-199110

main32924-30140iYS130..4HC198709-199110

main32924-30150iYS130..4HC198709-199110

main32924-30160iMS135,137198709-199110

main32924-30170iUZS131198908-199110

main32924-30180iJZS13#199008-199110

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010×8iLS136..4FC198709-198908

main32926-22020×2iLS136..4FC198908-199110

main32926-26010×2iLS130,131..TDE198908-199110

main32926-30011×2iGS130,131..ATM..HTWC198809-199110

main32926-30020×2iMS135,137,UZS131;GS130,131,YS130..ATM..(LPEFI,LPG,SPC,TWLPG)198709-199110

main32926-30030×2iJZS13#199008-199110

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-45012iMS130..ATM198709-198908

main32928-24010iGS130,131..ATM..EFI198709-198908

main32928-30050iLS13#..4FC198709-198908

main32928-30080iGS130,131..SPC198709-199110

main32928-30090iMS135,137198709-199110

main90462-12047iLS13#..4FC198908-199110

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-30060iLS13#..4FC198709-198908

main32928-30100iLS13#..4FC198908-199110

main90461-08628iYS130..4HC198908-199110

main90461-12028iMS130..ATM198709-198908

main90462-12047iGS130..ATM..TWLPG198908-199110

main90462-12085iGS130,131..ATM..(EFI,HTWC,TWC)198709-199110

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-22050iGS130,131,YS130..ATM..(LPEFI,LPG,SPC)198808-199110

main32929-24040iMS135,137198709-199110

sub32929-35050

main32929-30050iLS136..4FC198908-199110

main32929-30060iMS130..ATM198709-198908

main32929-30090iGS130,131..ATM..(EFI,HTWC,TWC)198709-199110

main32929-30110iGS130,131,YS130..ATM..(LPG,SPC)198709-198808

main32929-30120iGS130..ATM..TWLPG198908-199110

9161160612

main91611-60612

9161161016

main91611-61016
