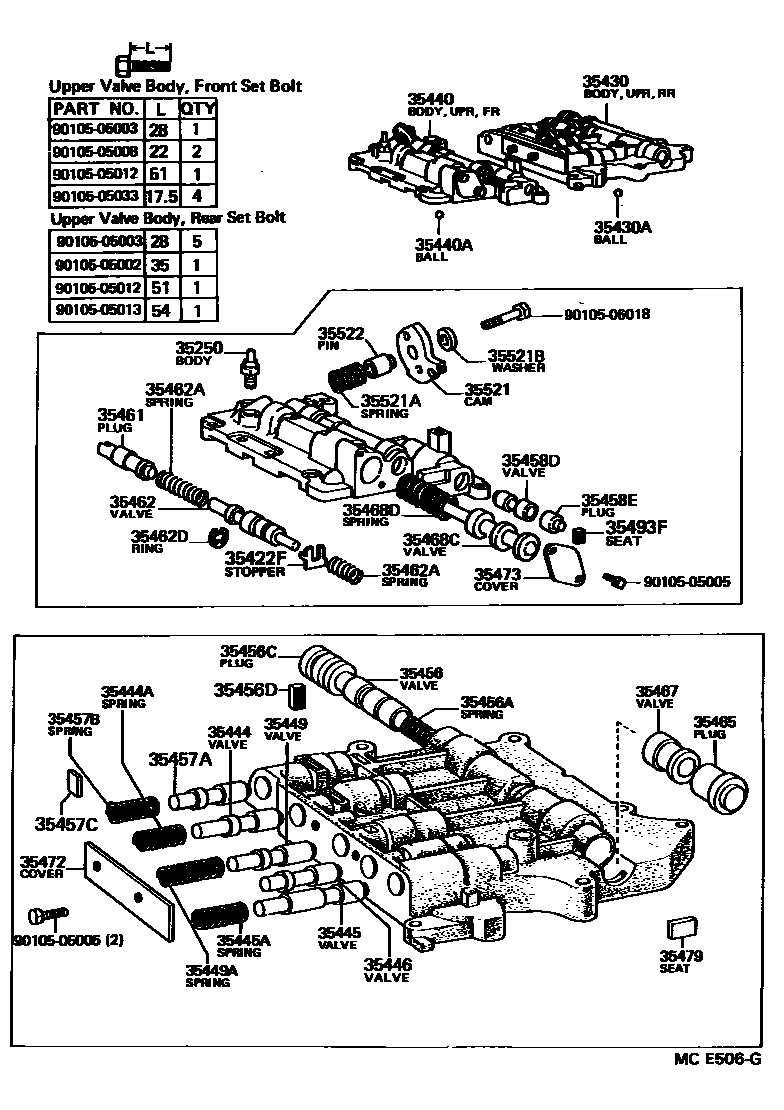

VALVE BODY & OIL STRAINER (ATM)

0001 1A42D,A43D 0003 1A42D,A43D 0005 1A42D,A43D 0007 1A42DL 0008 1A42DL 0009 1A42DL 0010 1A42DE 0011 1A42DE 0012 1A42DE 0013 1A340E 0014 1A340E 0015 1A340E 0016 1A340E 0017 1 0018 1 0019 1 0020 1

35250BODY ASSY, CHECK BALL

main35250-30010iGS130,LS13#,MS130,YS130..ATM..(DSL,LPEFI,LPG,TDE,TWLPG)198709-199110

35422FSTOPPER, VALVE VIBRATING

main35422-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main35422-30010iGS130,131..SPC;JZS13#,MS135,137198709-199110

35430BODY ASSY, REAR UPPER VALVE

main35430-20010iLS136..4FC198709-199110

main35430-22170iLS130,131..TDE198908-199110

main35430-28030iGS130,131..ATM..EFI198709-198908

main35430-30110iLS130..TDE198709-198908

main35430-30120iGS131..4FC..TWC198709-199110

main35430-30170iMS130,YS130..ATM198709-199110

main35430-30180iGS130,131..ATM..HTWC198809-199110

main35430-30190iGS130..ATM..TWLPG198908-199110

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE)198709-198804

sub35495-22020

main35495-22020iGS130,131,LS13#,YS130..ATM..(DSL,HTWC,LPEFI,TDE,TWLPG)198804-199110

main90360-06023iGS130,131,LS13#,YS130..ATM..(DSL,HTWC,LPEFI,TDE,TWLPG)198709-199110

35440BODY ASSY, FRONT UPPER VALVE

main35440-14021iGS130,YS130..ATM..(LPEFI,LPG,TWLPG)198709-199012

main35440-30051iMS130..ATM198709-198908

main35440-30081iLS13#..4FC198709-199110

main35440-30120iGS130,131..ATM..HTWC198809-199110

main35440-30130iGS131..4FC..TWC198709-199110

sub35440-30131

sub35432-26051

main35440-30140iLS130,131..TDE198908-199110

main35440-30150iGS130,YS130..ATM..(LPEFI,TWLPG)199012-199110

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iLS13#,MS130,YS130..ATM198709-198804

sub35495-22020

main35495-22020iLS13#,MS130,YS130..ATM198804-199110

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iGS130,LS13#,YS130..ATM..(DSL,LPEFI,TDE,TWLPG)198709-199110

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725iGS131..4FC..TWC198709-198908

main90501-09686iGS131..4FC..TWC198908-199110

main90501-09686iGS131..4FC..TWC198709-198908

INTERMEDIATE

main90501-11009iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35445VALVE, LOW MODULATOR

main35445-22010iGS130,LS13#,YS130..ATM..(DSL,LPEFI,TDE,TWLPG)198709-199110

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE)198709-199110

35446VALVE, GOVERNOR MODULATOR

main35446-20010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE)198709-199110

35449VALVE, SEQUENCE

main35447-22010iGS130,131..ATM..(EFI,HTWC)198709-199110

main35449-22010iGS130,131..ATM..EFI198709-198908

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-11048iGS130,131..ATM..HTWC198809-199110

main90501-12055iGS130,131..ATM..EFI198709-198908

UPR VALVE BODY

main90501-12726iGS130,131..ATM..EFI198709-199110

LWR VALVE BODY

35456VALVE, 2-3 SHIFT

main35456-22010iGS130,LS13#,YS130..ATM..(DSL,LPEFI,TDE,TWLPG)198709-199110

main35456-30050iGS131..4FC..TWC198709-199110

main35456-30060iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08724iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

main90501-09028iGS131..4FC..TWC198709-199110

main90501-09053iUZS131198709-199110

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE)198709-199110

main90339-05014iUZS131;GS130,131,JZS13#,MS135,137..ATM..(SPC,TWC)198709-199110

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35457AVALVE, DETENT REGULATOR

main35457-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09006iMS130,YS130..ATM198709-199110

main90501-09022iGS130,131..ATM..(EFI,HTWC)198709-199110

main90501-09025iLS13#..4FC198709-199110

main90501-09095iLS130,131..TDE198908-199110

main90501-09739iGS130..ATM..TWLPG198908-199110

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35458DVALVE, CUT BACK

main35458-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

main35458-30020iGS131..4FC..TWC198709-199110

main35458-30030iGS130,131..SPC;JZS13#,MS135,137198709-199110

main35458-50010iUZS131198908-199110

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main90339-04002iGS130,131..SPC;JZS13#,MS135,137198709-199110

main90339-04030iUZS131198908-199110

35461PLUG, DOWN SHIFT

main35408-22020iGS130,131..ATM..HTWC198809-199110

main35408-22030iLS130,131..TDE198908-199110

main35408-30010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE)198709-199110

main35408-30040iGS130,131..SPC;JZS13#,MS135,137198709-199110

35462VALVE, THROTTLE

main35462-22011iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main35462-30020iGS130,131..SPC;JZS13#,MS135,137198709-199110

main35462-50010iUZS131198908-199110

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07051iJZS13#,MS13#;GS130,131..SPC198709-199110

main90501-07067iGS131..SPC..NOB;GS130,MS135,137..ROY,ROYG198709-199003

main90501-07680iGS130,131..ATM..(HTWC,TWC)198709-199110

main90501-12011iMS130..ATM198709-198908

main90501-12045iLS13#..4FC198709-199110

main90501-12077iGS130..WG..ATM..HTWC198709-199110

main90504-06002iUZS131198908-199110

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-199110

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35468CVALVE, SECONDARY REGULATOR

main35204-30010iGS130,131..ATM..(EFI,HTWC,TWC)198709-199110

main35468-12020iGS130,131..SPC;JZS13#,MS135,137198709-199110

main35468-22010iLS13#..4FC198709-199110

main35468-30030iGS130,YS130..ATM..(LPEFI,TWLPG)199012-199110

main35468-50010iUZS131198908-199110

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-12122iUZS131198908-199110

main90501-15007iJZS13#,MS13#;GS130,131..SPC198709-199110

main90501-18095iGS130,YS130..ATM..(LPEFI,TWLPG)199012-199110

main90501-19001iGS130,131,LS13#..ATM..(DSL,HTWC,TDE,TWC)198709-199110

35472COVER, VALVE BODY, NO.2

main35472-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

main35472-30010iGS131..4FC..TWC198709-199110

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iGS130,131,LS13#,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35493SEAT, SHIFT VALVE SPRING

main35493-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35493FSEAT, SHIFT VALVE PLUG

main35493-14010iGS130,131..ATM..HTWC198908-199110

main35493-14010iGS130,131..ATM..(EFI,HTWC)198709-198908

NO.1

main35493-22010iGS130,131..ATM..(EFI,HTWC)198709-198908

NO.2

main35493-22010iGS130,131,LS13#,YS130..ATM..(DSL,HTWC,LPEFI,TDE,TWC,TWLPG)198908-199110

35521CAM, THROTTLE VALVE

main35521-20010iLS136..4FC198709-199110

main35521-22040iGS130,131..SPC198709-199110

main35521-22060iJZS13#199008-199110

main35521-24010iGS130,131..ATM..HTWC198809-199110

main35521-30010iGS130,131,MS130,YS130..ATM..(EFI,LPEFI,LPG,TWLPG)198709-199110

main35521-30050iLS130,131..TDE198908-199110

main35521-30060iMS135,137198709-198908

main35521-30070iGS131..4FC..TWC198709-199110

main35521-35010iMS13#198908-199110

main35521-50010iUZS131198908-199110

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-10059iUZS131198908-199110

main90508-11007iGS130,131..SPC;JZS13#,MS135,137198709-199110

main90508-12331iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iGS130,131..ATM..(EFI,SPC,TWLPG);JZS13#,LS13#,MS13#,UZS131,YS130..ATM198709-199110

35522PIN, THROTTLE VALVE CAM

main35522-22010iGS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM198709-199110

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505008

main90105-05008

9010505012

main90105-05012

9010505013

main90105-05013

9010505033

main90105-05033

9010506018

main90105-06018

47 parts on this diagram · 17 diagrams in section
