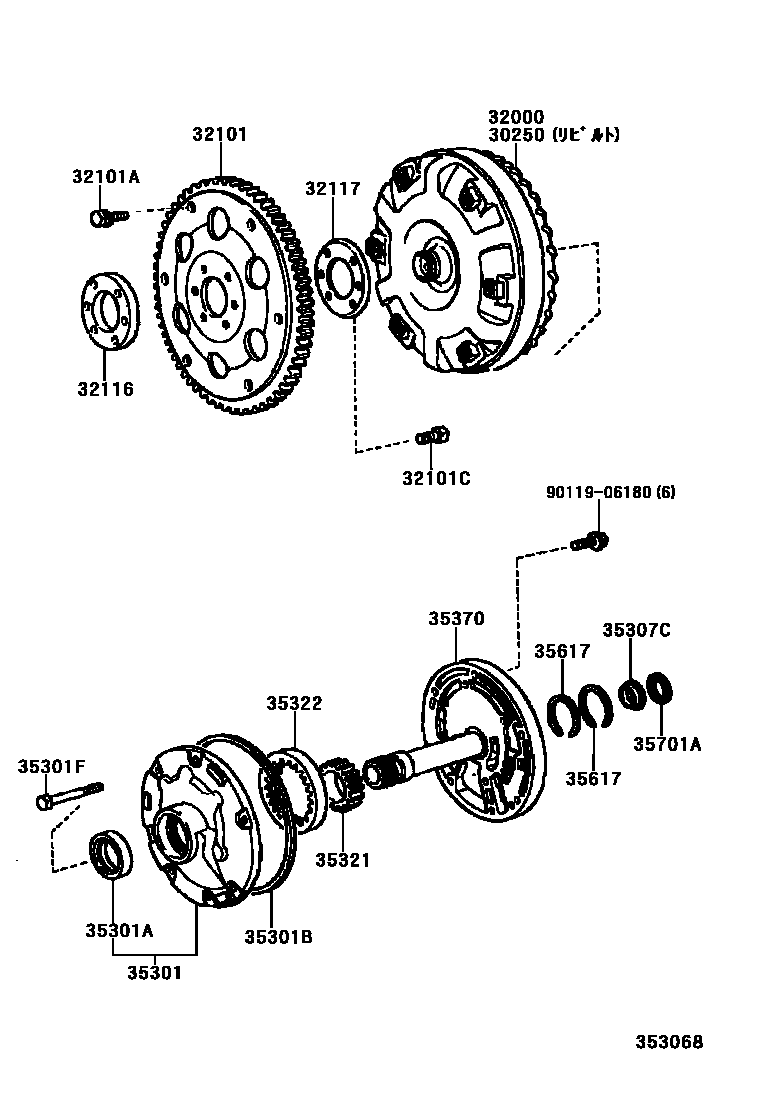

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-14091iLS136,MS130..ATM198709-198908

main30250-14101iLS130..TDE198709-198908

main30250-14110iMS135,137198709-198805

main30250-22090iGS130,131..ATM..HTWC198809-198907

main30250-22120iLS130..SDX..TDE198908-199110

main30250-22130iLS136..4FC198908-199110

main30250-22140iYS130..4HC198908-199110

main30250-22160iJZS13#199008-199110

main30250-24011iGS130,131..ATM..(EFI,TWC)198709-198908

main30250-30140iGS131..SPC198709-198809

main30250-30160iYS130..4HC198709-198908

main30250-30180iGS131..4FC..TWC198809-199110

main30250-30190iMS135,137198805-198908

main30250-30200iGS131..SPC198810-199110

main30250-30210iGS130..SPC198810-199110

main30250-30220iMS13#198908-199110

main30250-30230iGS130..ATM..TWLPG198908-199110

main30250-30240iGS130,131..ATM..HTWC198907-199110

main30250-50010iUZS131198908-199110

32000CONVERTER ASSY, TORQUE

main32000-14091iLS136,MS130..ATM198709-198908

main32000-14101iLS130..TDE198709-198908

main32000-14110iMS135,137198709-198805

main32000-22090iGS130,131..ATM..HTWC198809-198907

main32000-22110iGS131..SPC198809-198810

sub32000-30200

main32000-22120iLS130,131..TDE198908-199110

main32000-22130iLS136..4FC198908-199110

main32000-22140iYS130..4HC198908-199110

main32000-22160iJZS13#199008-199110

main32000-24011iGS130,131..ATM..(EFI,TWC)198709-198908

main32000-30140iGS131..SPC198709-198809

main32000-30150iGS130..SPC198709-198809

main32000-30160iYS130..4HC198709-198908

main32000-30170iGS130..SPC198809-198810

sub32000-30210

main32000-30180iGS131..4FC..TWC198809-199110

main32000-30190iMS135,137198805-198908

main32000-30200iGS131..SPC198810-199110

main32000-30210iGS130..SPC198810-199110

main32000-30220iMS13#198908-199110

main32000-30230iGS130..ATM..TWLPG198908-199110

main32000-30240iGS130,131..ATM..HTWC198907-199110

main32000-50010iUZS131198908-199110

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14051iMS13#198709-198912

sub32101-14052

main32101-14052iMS13#198912-199110

main32101-22030iGS130,131..ATM..(EFI,TWC)198709-198809

sub32101-22031

main32101-22031iGS130,131..ATM..EFI198809-198908

main32101-22050iJZS13#199008-199110

main32101-24011iGS130,131..SPC198709-198808

sub32101-24012

main32101-24012iGS130,131..ATM..(HTWC,SPC,TWC,TWLPG)198808-199110

main32101-28010iYS130..4HC198709-198908

main32101-30051iLS13#..4FC198709-198805

main32101-30052iLS13#..4FC198805-198908

main32101-30060iMS130..ATM198709-198912

sub32101-30061

main32101-30070iYS130..4HC198908-199110

sub32101-43010

sub32116-43010

sub32117-43010

main32101-35020iLS13#..4FC198908-199110

main32101-50010iUZS131198908-199110

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE)198709-198908

main90119-08498iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE,TWC)198709-198908

main90119-08554iLS13#,YS130..ATM198709-198908

main90119-09009iGS130,131,LS13#,MS13#,UZS131,YS130..ATM198709-199110

main90119-09010iMS135,137;GS130,131..SPC198709-199110

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046iGS130,131,YS130..ATM198709-199110

main90105-10226iUZS131198908-199110

main90105-10294iJZS13#199008-199110

main90105-12014iLS13#..4FC198709-199110

main90109-10037iMS13#..ATM198709-199110

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGS130,131..ATM198709-199110

main32116-22020iJZS13#199008-199110

main32116-28010iYS130..4HC198709-199110

main32116-30011iMS13#..ATM198709-199110

main32116-30020iLS13#..4FC198709-198805

main32116-35010iLS13#..4FC198805-199110

main32116-50010iUZS131198908-199110

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGS130,131..ATM198709-199110

main32117-20030iYS130..4HC198709-199110

main32117-22020iJZS13#199008-199110

main32117-30011iMS13#..ATM198709-199110

main32117-30020iLS13#..4FC198709-198805

main32117-35010iLS13#..4FC198805-199110

main32117-50010iUZS131198908-199110

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGS130,131,LS130,131,YS130..ATM..(HTWC,LPEFI,TDE,TWC,TWLPG)198709-199110

main35301-30030iLS136..4FC198709-199110

main35301-30040iGS130,131..SPC;JZS13#,MS135,137198709-199110

main35301-35010iUZS131198908-199110

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main90311-38029iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main90301-99033iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

main90105-08137iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iLS136,MS130..ATM198709-199110

main35789-30020iMS13#,UZS131;GS130,131..SPC198709-199110

sub35789-30340

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iUZS131198908-199110

main35321-14010iGS130,131..ATM..(EFI,HTWC,TWC)198709-199110

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

main35321-22010iLS13#,MS130,YS130..ATM198709-199110

sub35321-22090

main35321-32050iJZS13#,MS13#;GS130,131..SPC198709-199110

sub35321-12090

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iUZS131198908-199110

main35322-14010iGS130,131,LS130,131,YS130..ATM..(HTWC,LPEFI,TDE,TWC,TWLPG)198709-199110

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

main35322-22010iLS136..4FC198709-199110

sub35322-22090

main35322-32050iJZS13#,MS13#;GS130,131..SPC198709-199110

sub35322-12080

35370SHAFT ASSY, STATOR

main35370-14012iGS130,131..ATM..(EFI,HTWC,TWC)198709-199110

main35370-22031iLS136,MS130..ATM198709-199110

main35370-22050iGS130,YS130..ATM..(LPEFI,TWLPG)198912-199110

main35370-30023iGS130,LS130,131,YS130..ATM..(LPEFI,LPG,TDE,TWLPG)198709-199012

main35370-30031iGS130,131..SPC;JZS13#,MS135,137198709-199110

main35370-50010iUZS131198908-199110

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iGS130,131,LS136,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG)198709-198912

main35617-30020iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

main35617-32010iLS130..TDE198709-199110

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iLS136,MS130..ATM198709-199110

main90374-25003iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

9011906180

main90119-06180

18 parts on this diagram · 2 diagrams in section
