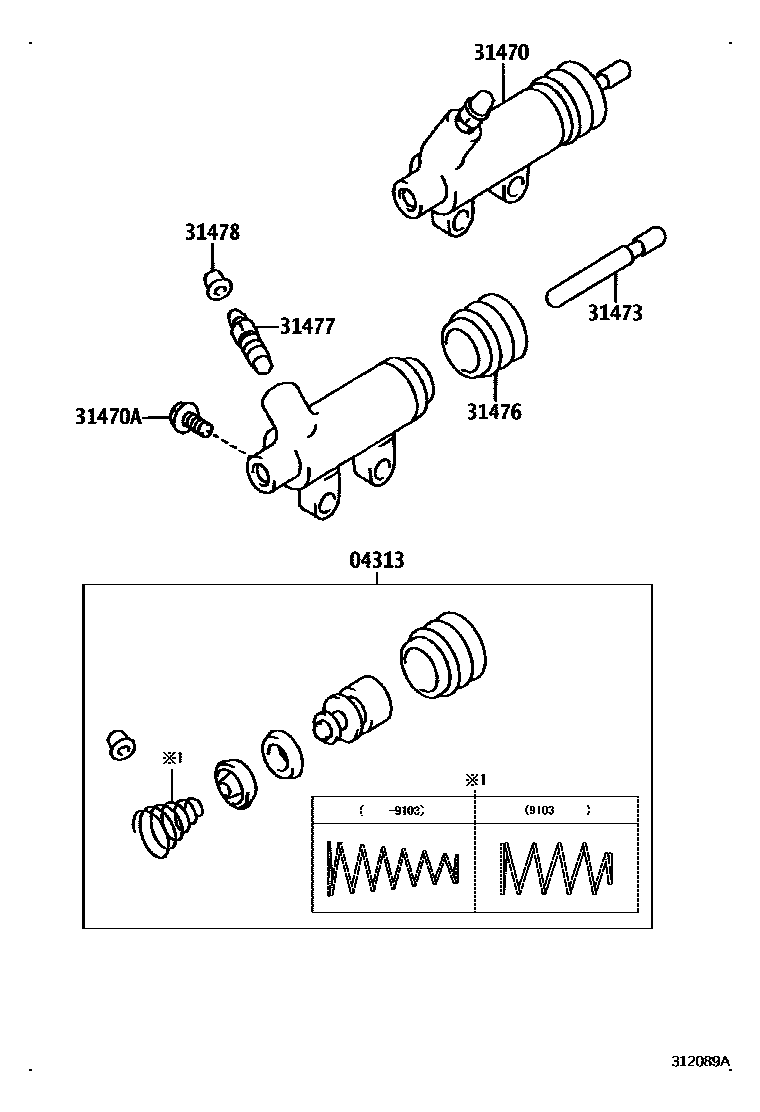

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iYS130..MTM198805-199103

main04313-17010iGS13#..MTM199103-199110

main04313-22020iGS13#,LS13#,MS130,YS130..MTM198709-198808

sub04313-12030

main04313-22030iLS13#..MTM199103-199110

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22130iLS13#..MTM199103-199110

sub31470-22160

main31470-22140iGS13#..MTM199103-199110

main31470-22150iYS130..MTM199103-199110

main31470-30220iGS13#,LS13#,MS130..MTM198709-198806

sub31470-30221

main31470-30221iGS13#,MS130..MTM198806-199103

sub31470-30222

main31470-30260iYS130..MTM198805-199102

main31470-35050iYS130..MTM198709-198805

sub31470-30260

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iGS13#,LS13#,MS130,YS130..MTM198709-199110

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iGS13#..MTM198709-199110

main31473-22030iLS13#..MTM199103-199110

main31473-35050iYS130..MTM199108-199110

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGS13#,LS13#,MS130,YS130..MTM198709-199110

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGS13#,LS13#,MS130,YS130..MTM198709-199110

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGS13#,LS13#,MS130,YS130..MTM198709-199110

7 parts on this diagram · 1 diagram in section
