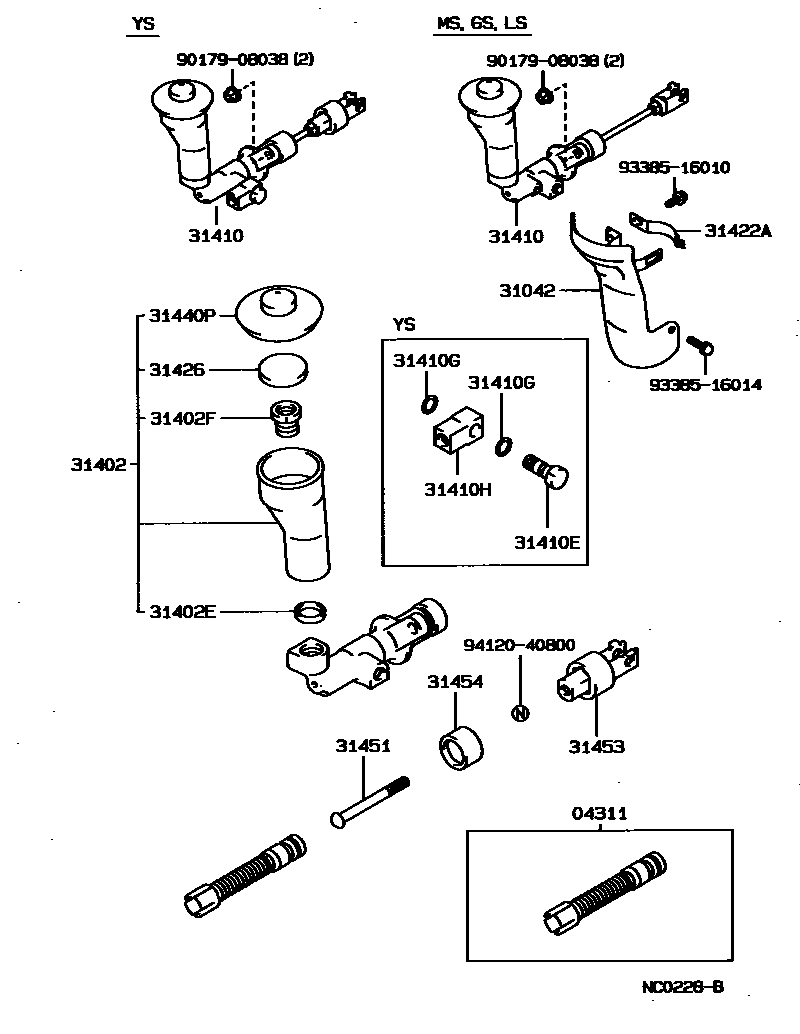

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-10011iGS13#,LS13#,MS130,YS130..MTM198709-198801

sub04311-10012

main04311-22050iGS13#,LS13#,MS130,YS130..MTM..(DSL,EFI,HTWC,LPG,TD,TWC,TWLPG)198801-199110

main04311-30100iYS130..MTM198908-199110

31042INSULATOR SUB-ASSY, MASTER CYLINDER HEAT

main31042-30010iLS130,131..TD198709-199110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30070iGS13#,LS130,136,MS130,YS130..MTM..(DSL,EFI,HTWC,LPEFI,LPG,TWC,TWLPG)198709-199110

main31402-30080iLS130,131..TD198709-199110

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iGS13#,LS13#,MS130,YS130..MTM198709-199110

31402FBOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iGS13#,LS13#,MS130,YS130..MTM198709-199110

31410CYLINDER ASSY, CLUTCH MASTER

main31410-30230iMS130..4H198709-198811

sub31410-30231

main31410-30231iMS130..4H198811-198908

main31410-30250iGS13#,LS13#..MTM..(DSL,EFI,HTWC,TWC)198709-198811

sub31410-30251

main31410-30251iGS13#,LS130,136..MTM..(DSL,EFI,HTWC,TWC,TWLPG)198811-199110

sub31410-30282

main31410-30270iYS130..MTM198709-198809

sub31410-30271

main31410-30271iYS130..MTM198809-198908

sub31410-30272

main31410-30272iYS130..MTM198908-199110

main31410-30281iLS130..TD198709-198811

sub31410-30282

main31410-30282iLS130,131..TD198811-199110

31410ESEAT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-10046iYS130..MTM198709-199110

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-10074iYS130..MTM198709-199110

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10165iYS130..MTM198709-199110

31422ABRACKET, CLUTCH RESERVOIR

main31422-30020iLS130,131..TD198709-199110

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGS13#,LS13#,MS130,YS130..MTM198709-199110

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGS13#,LS13#,MS130,YS130..MTM198709-199110

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iGS13#,LS13#,YS130..MTM..(DSL,EFI,HTWC,LPG,TD,TWC,TWLPG)198709-199110

main31451-30120iMS130..4H198709-198908

main31451-30150iYS130..MTM198908-199110

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-16011iGS13#,LS13#,YS130..MTM198709-198904

sub31404-16012

main31404-16012iGS13#,LS13#,YS130..MTM198904-199110

sub31404-22020

main31453-10020iMS130..4H198709-198908

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iGS13#,LS13#,MS130,YS130..MTM198709-199110

9017908038

main90179-08038

9338516010

main93385-16010

9338516014

main93385-16014

9412040800

main94120-40800

19 parts on this diagram · 1 diagram in section
