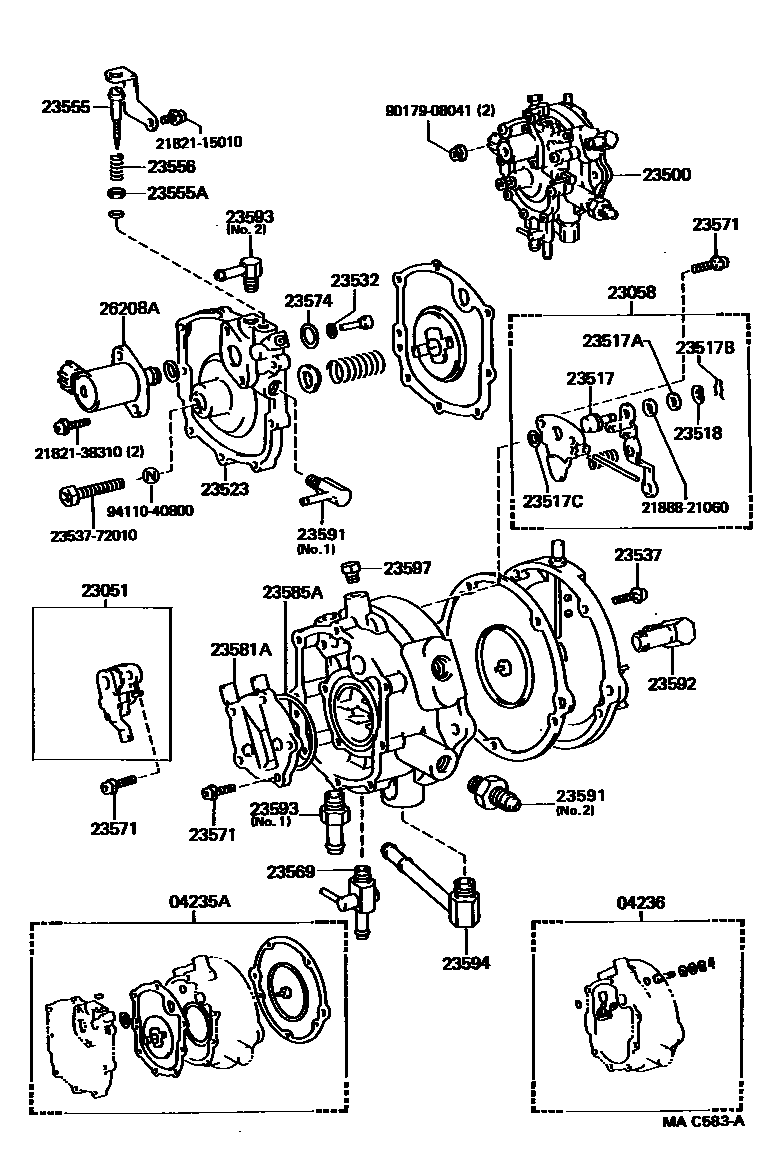

LPG OR CNG REGULATOR

0001 1 0002 1 0003 1 0004 1

04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE

main04235-72010i3YP#..YS130198709-199110

04236VALVE KIT, LPG REGULATOR

main04236-72010iMP..MS130198709-198908

main04236-72020i3YPE..YS130198908-199110

23051VALVE SUB-ASSY, 1ST

main23051-72010i3YPE..YS130198902-199110

23058VALVE SUB-ASSY, 2ND

main23058-41070iMP..MS130198709-198908

main23058-70020i1GGP..GS130198908-199110

main23058-72010i3YP#..YS130198709-199110

sub23058-44041

23500REGULATOR ASSY, LPG(CNG)

main23500-41080iMP..MS130198709-198908

main23500-70020i1GGP..GS130198908-199110

main23500-73110i3YP..YS130198709-198908

main23500-73130i3YPE..YS130198908-199110

23517VALVE, ELASTIC FACE

main23517-40013i1GGP..GS130198908-199110

23517AWASHER(FOR ELASTIC FACE VALVE SET)

main21535-10010i3YP#..YS130198709-199110

23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)

main21792-69210i3YP#..YS130198709-199110

23517CGASKET(FOR ELASTIC FACE VALVE)

main23532-44020×2iMP..MS130198709-198908

23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-40010i3YP#..YS130198709-199110

23523COVER, 1ST REGULATOR

main23523-72010iMP..MS130198709-198908

main23523-73130i3YPE..YS130198908-199110

sub23523-70040

23532RING, O, NO.2(FOR BULB)

main23532-40010×2iMP..MS130198709-198908

23537SCREW(FOR 2ND REGULATOR COVER SET)

main21821-31140×16iMP..MS130198709-198908

23555SCREW, IDLE ADJUST

main23555-44041iMP..MS130198709-198908

main23555-73130i3YPE..YS130198908-199110

sub23555-48050

23555AWASHER, IDLE ADJUST SCREW

main21885-26040i3YP#..YS130198709-199110

23556SPRING, IDLE ADJUST SCREW

main21723-21030i3YP#..YS130198709-199110

23569COCK, DRAIN

main23569-40010i3YP#..YS130198709-199110

main23569-40011iMP..MS130198709-198908

23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)

main23571-72010×9i3YP#..YS130198709-199110

23574RING, O, NO.1(FOR BULB)

main23574-72010i3YP#..YS130198709-199110

23581ACOVER, UPPER PREHEATER

main23581-72010i3YP#..YS130198709-199110

23585ARING, O(FOR PREHEATER)

main23585-72010i3YP#..YS130198709-199110

23591UNION, NO.1, FUEL

main23591-41070i1GGP..GS130198908-199110

main90404-14064i3YP#..YS130198709-199110

23592UNION, NO.2, FUEL HOSE

main23592-44050iMP..MS130198709-198908

main23592-72010iMP..MS130198709-198908

main23592-73110i3YP#..YS130198709-199110

main23592-73130i3YPE..YS130198908-199110

23593UNION, NO.3

main23593-70020i1GGP..GS130198908-199110

main23593-72010i3YP#..YS130198709-199110

23594UNION, NO.4, WATER HOSE

main23594-70020i1GGP..GS130198908-199110

main23594-72010iMP..MS130198709-198908

main23594-73110i3YP#..YS130198709-199110

23597PLUG, LPG REGULATOR BODY

main90345-51006i3YP#..YS130198709-199110

26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)

main26208-73130i3YPE..YS130198908-199110

sub26206-73130

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

2188821060WASHER(FOR POSITIONER VALVE SET)

main21888-21060

2353772010SCREW(FOR 2ND REGULATOR COVER SET)

main23537-72010

9017908041

main90179-08041

9411040800

main94110-40800

33 parts on this diagram · 4 diagrams in section
