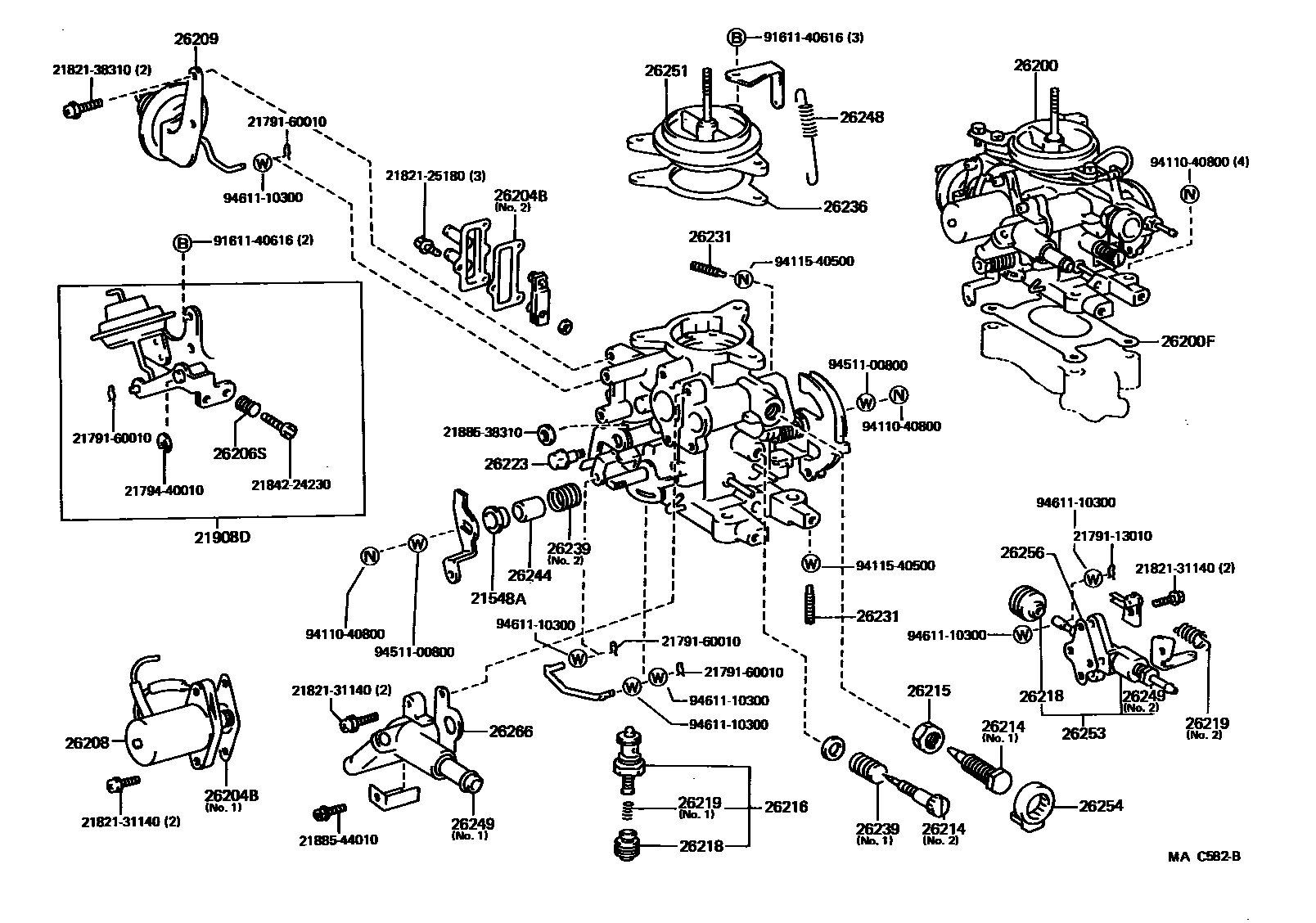

LPG CARBURETOR
21548ACOLLER, THROTTLE LEVER
21908DACTUATOR SUB-ASSY, IDLE-UP
26200CARBURETOR ASSY, LPG
26204BGASKET, SOLENOID VALVE(FOR LPG)
26206SSPRING, IDLE ADJUST SCREW(FOR LPG)
26209DIAPHRAGM SUB-ASSY(FOR LPG)
26214SCREW, POWER ADJUST
NO.1
26215NUT, POWER ADJUST
26218BOOT(FOR POWER VALVE)
26219SPRING, POWER VALVE
26223SCREW, SET(FOR POWER VALVE CAM)
26231SCREW(FOR LPG CARBURETOR)
26236GASKET, AIR HORN
26244COLLAR(FOR LPG CARBURETOR)
26248SPRING(FOR POWER VALVE CAM)
26249UNION, FUEL HOSE(FOR LPG)
NO.2
NO.1
26251HORN, AIR
26253VALVE, CHANGE(FOR SLOW)
26254CAP, POWER SCREW LIMIT
26256GASKET, CHANGE VALVE
26266GASKET, FUEL INLET UNION
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-60010
2179440010RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
main21794-40010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2184224230SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-24230
2188538310
main21885-38310
2188544010
main21885-44010
9161140616
main91611-40616
9411040800
main94110-40800
9411540500
main94115-40500
9451100800
main94511-00800
9461110300
main94611-10300
39 parts on this diagram · 4 diagrams in section
